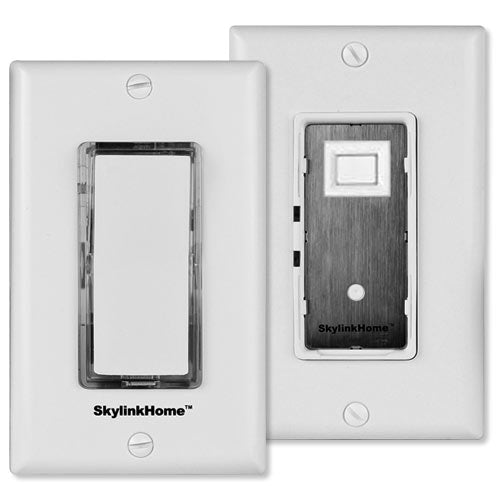

SkylinkHome 3-Way On/Off Starter Kit

Usually ships within 3-5 business days

SKU: SKSK8
$39.95

WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov

Supports Up To 1000W For Wireless Control Of Appliances

This SkylinkHome 3-Way On/Off Starter Kit replaces an existing wall switch and provides a second auxiliary switch to give you 3-way local and remote control over a wired light or appliance. And it's SUPER easy to install! All wireless signal communications within the SkylinkHome System are based on rolling code technology to ensure the highest level of security.

How It Works

The Wall Switch simply replaces your existing wall switch. The Switch can receive signals from Skylink transmitters, allowing you to wirelessly operate the connected light or appliance from another location in your home. For example, you can install the included Wall Mount Transmitter upstairs for remote control of your downstairs Wall Switch. The Switch can receive signals from up to 8 transmitters, so you can add remote control transmitters, wall mount transmitters, etc. for added convenience. (Additional transmitters sold separately.)

ON/OFF Wall Switch Features

  • Replaces existing wall switch
  • Operates incandescent, CFL or Tungsten light bulbs or motor loads
  • No neutral wire is needed. Easy to install.
  • Operation Modes: 1) ON/OFF 2) Countdown Timer
  • Up to 500 feet operating range in an open area
  • Attractive built-in blue LED light

Wall Mount Transmitter Features

  • Wirelessly activates the Wall Switch
  • Regular rocker style wall switch. Flat back, easily mounted anywhere.
  • Lighting control: ON/OFF
  • Up to 500 feet operating range in an open area
  • Long life lithium battery included

Rolling Code Technology

Every time you press your remote transmitter, a code is generated which is recognized by the receiver that in turn performs the desired function. With most systems, there is only one assigned code. Whenever the remote is pressed, it generates the same code, making it vulnerable to code grabbers who use electronic scanners to steal the code. With rolling code technology, each time the remote is used, it generates a different code which can only be recognized by a rolling code receiver. Even if an electronic scanner picks up the code, the next code will not be the same, and the receiver will not recognize the old code. As a result, systems with rolling code technology are increasingly safe and secure.

Kit Includes

  • Wall Switch On/Off Receiver (WE-001)
  • Wall Switch Transmitter (TB-318)
  • Screws and Double-Sided Tape
  • Clamshell Pack
  • User Manual

For dimming function, light bulbs must be dimmable.

The Skylink Group

The Skylink Group understands the needs and concerns of homeowners in providing a safe haven and comfortable environment for their families. The group offers a comprehensive range of products to meet all home operation and security needs, including wireless alarm systems, emergency dialers, motion detector sets, sensors and alert mechanisms. The group has been manufacturing electronics for over 14 years, and continues to enhance features and test technology on an ongoing basis to ensure reliability.

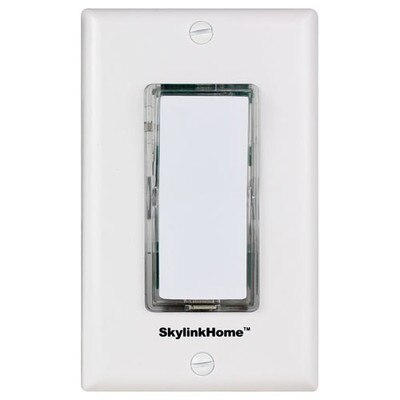

Wall Switch On/Off Receiver

  • Input Voltage: 120VAC, 60Hz
  • Standby Current: 0.2mA
  • Minimum Load: 10W
  • Maximum Load:
    • Ballast: 500W
    • Tungsten: 600W
    • Resistive: 1000W
  • Operating Frequency: 318 MHz
  • Operational Temperature: -4 to 140° F (-20 to 60° )
  • Humidity: 5 to 95 percent
  • Wireless Range: Up to 500 feet in open area
  • Approvals: FCC, UL, cUL

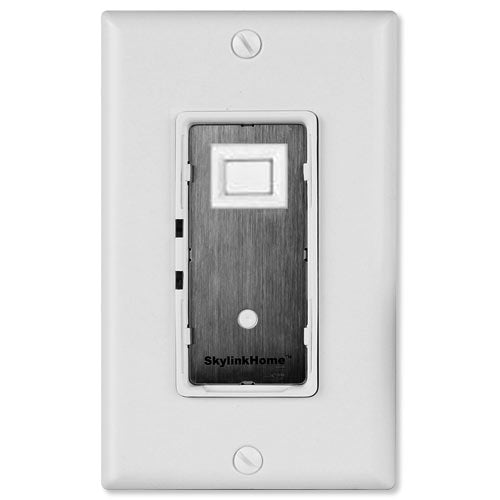

Wall Switch Transmitter

  • Input Voltage: 120VAC, 60Hz
  • Standby Current: 0.2mA
  • Minimum Load: 10W
  • Maximum Load:
    • Ballast: 500W
    • Tungsten: 600W
    • Resistive: 1000W
  • Operating Frequency: 318 MHz
  • Operational Temperature: -4 to 140° F (-20 to 60° )
  • Humidity: 5 to 95 percent
  • Wireless Range: Up to 500 feet in open area
  • Approvals: FCC, UL, cUL
