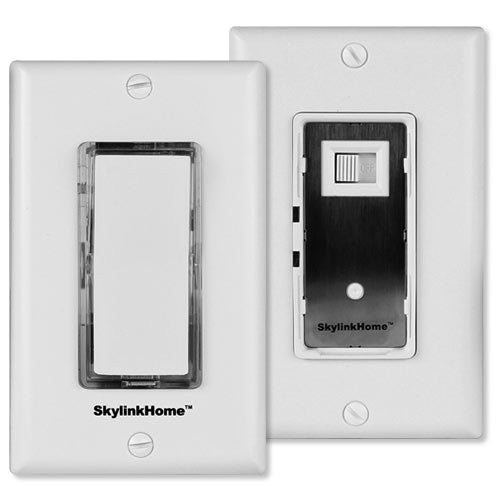

SkylinkHome 3-Way Dimmer Starter Kit

Order now and we'll ship same business day (if ordered before 3 pm PST).

SKU: SKSK7
$35.95

WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov

Works With Incandescent & CFL Bulbs*

This SkylinkHome 3-Way Dimmer Kit replaces an existing wall switch and provides a second auxiliary switch to give you 3-way local and remote control over a wired dimmable light or appliance. And it's SUPER easy to install! All wireless signal communications within the SkylinkHome System are based on rolling code technology to ensure the highest level of security.

How It Works

The Wall Dimmer simply replaces your existing wall switch. The Dimmer can receive signals from Skylink transmitters, allowing you to wirelessly operate the connected light or appliance from another location in your home. For example, you can install the included Wall Mount Transmitter upstairs for remote control of your downstairs Wall Dimmer. The Dimmer can receive signals from up to 8 transmitters, so you can add remote control transmitters, wall mount transmitters, etc. for added convenience. (Additional transmitters sold separately.)

Wall Dimmer Features

  • Replaces existing wall switch
  • No neutral wire is needed. Easy to install.
  • Lighting control: ON/OFF/Dim
  • Operation Modes: 1) ON/OFF 2) Countdown Timer 3) Flashing Alert
  • Up to 500 feet operating range in an open area
  • Controls incandescent, CFL or Tungsten light bulbs up to 300W
  • Attractive built-in blue LED light

Wall Mount Transmitter Features

  • Wirelessly activates the Wall Dimmer
  • Regular rocker style wall switch. Flat back, easily mounted anywhere.
  • Lighting control: ON/OFF/Dim
  • Up to 500 feet operating range in an open area
  • Long life lithium battery included

Rolling Code Technology

Every time you press your remote transmitter, a code is generated which is recognized by the receiver that in turn performs the desired function. With most systems, there is only one assigned code. Whenever the remote is pressed, it generates the same code, making it vulnerable to code grabbers who use electronic scanners to steal the code. With rolling code technology, each time the remote is used, it generates a different code which can only be recognized by a rolling code receiver. Even if an electronic scanner picks up the code, the next code will not be the same, and the receiver will not recognize the old code. As a result, systems with rolling code technology are increasingly safe and secure.

Kit Includes

  • Wall Switch On/Off/Dim Receiver (WR-001)
  • Wall Switch Transmitter (TB-318)
  • Screws and Double-Sided Tape
  • Clamshell Pack
  • User Manual

For dimming function, light bulbs must be dimmable.

SkylinkPad Wireless Lighting Control/Automation System

The SkylinkPad from Skylink Group is a wireless control system which allows the user to control almost anything electronic in the home, including lamps, garage doors, security systems, and coffee makers. The credit card size of the pad comes in six options and can have up to 14 buttons to control various household items.

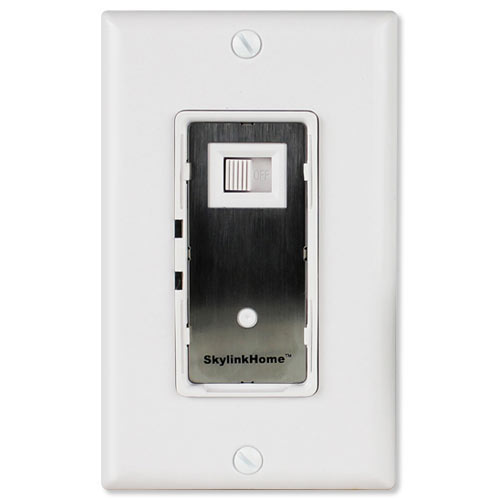

Wall Switch On/Off/Dim Receiver

  • Input Voltage: 120VAC, 60Hz
  • Standby Current: 0.2mA
  • Minimum Load: 10W
  • Maximum Load: 300W at 120VAC
  • Operating Frequency: 318 MHz
  • Operational Temperature: -4 to 140° F (-20 to 60° )
  • Humidity: 5 to 95 percent
  • Wireless Range: Up to 500 feet in open area
  • Approvals: FCC, UL, cUL

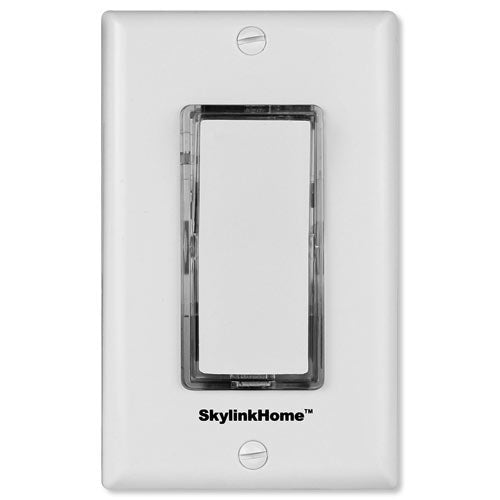

Wall Switch Transmitter

  • Input Voltage: 120VAC, 60Hz
  • Standby Current: 0.2mA
  • Operating Frequency: 318 MHz
  • Operational Temperature: -4 to 140° F (-20 to 60° )
  • Humidity: 5 to 95 percent
  • Wireless Range: Up to 500 feet in open area
  • Approvals: FCC, UL, cUL
