Simply45 Cat5e UTP 180-Degree Unshielded Keystone Jack

Easily Integrate Cat5e Connections With No Punch Down or Special Tooling

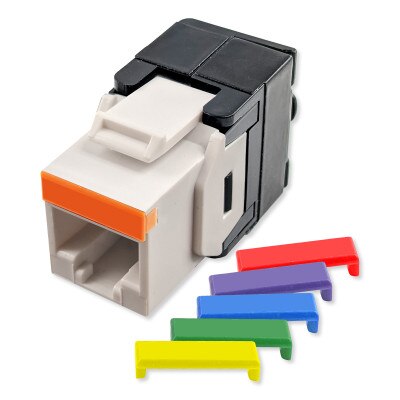

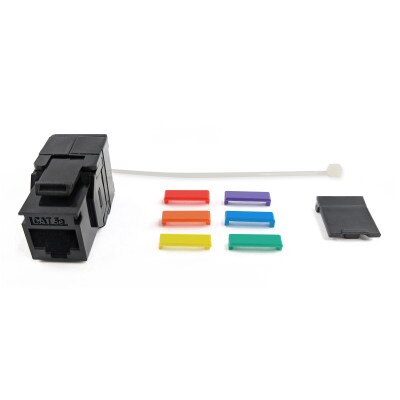

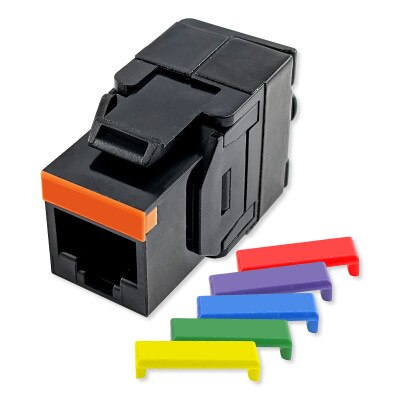

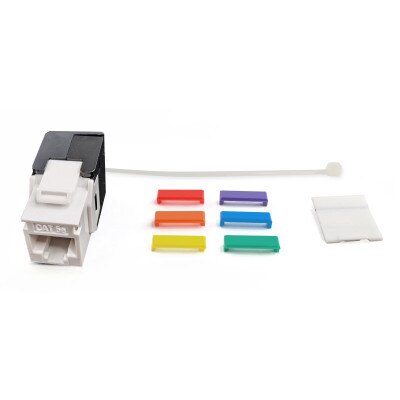

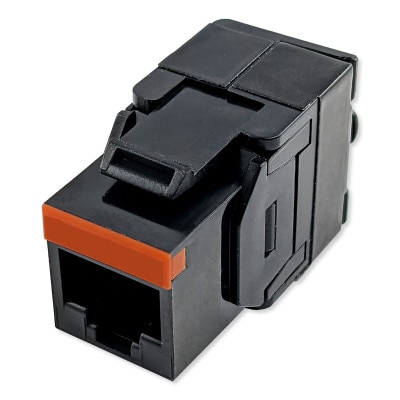

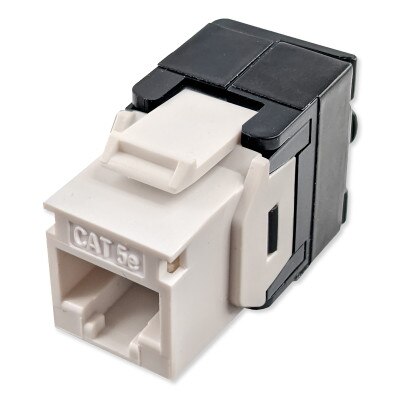

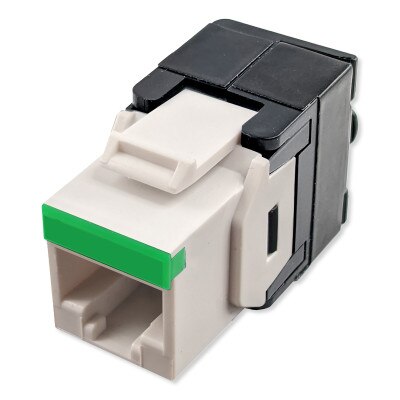

Create a custom RJ-45 Ethernet jack for use with Cat5e cable by installing the Simply45 Cat5e UTP 180-Degree Unshielded Keystone Jack. This Cat5e unshielded keystone jack has a narrow design, allowing for side-by-side installation in a standard patch panel. It has a 180-degree configuration for easy rear termination and because it has a tool-less design it does not require punchdowns or speciality tooling. It comes with six color coded snap-on bars, a wire layout diagram, and a tooless cap to simplify termination.

• Cat5E UTP cabling tool-less design for fast and easy terminations
• Narrow design allows side-by-side patch panel installation
• Requires no punch down or specialty tooling
• 180-degree configuration for easy rear termination
• Includes color-coded snap-on bars

Contents

• Simply45 Cat5e UTP 180-Degree Unshielded Keystone Jack

RJ45 Modular Plug Innovation and Performance Solutions

For over 20 years, Go Simply Connect™ has been a leading manufacturer in the networking industry for installing wire, cable, and field terminations. With innovative product lines that offer high-performing connectivity solutions, Go Simply Connect™ provides a slew of networking products that are used more and more in technology we use today as well as for future networking technologies that will keep everyone connected. Go Simply Connect™ provides products and experience to get the job done right, the first time.

• Manufacturer Part #:
• S45-3500B: Black
• S45-3500W: White
• UPC:
• S45-3500B: 810093720088
• S45-3500W: 810093720095
• Mechanical: 24AWG Wire Conductors – Cat5e UTP cabling
• Plug Insertion Life: >=750 times plug in
• Contact Force: 99.2g (3.5oz) FCC Plug
• Plug Retention Force: 30lb (133n/13/3kg)
• Operating Temperature: -40°F to 150°F (-40°C to 66°C)
• Electrical: Insulation Resistance: >=500 MΩ
• Dielectric Withstand Voltage: 100VAC RMS 60Hz
• Contact Resistance: <=20mΩ
• Current Rating: 1.5A at 68F
• Contact Plating: 50μ 24ct gold
• Dimensions: 1.4(L) x 0.8(H) x 0.6(W) inches (36.7 x 21.64 x 17.01mm)
• Standards/Compliance:
• ISO/IEC 11801 Class D
• ANSI/TIA 568.2-D
• ANSI/TIA 1096-A
• ANSI/TIA 606-C
• EN 50173
• IEC 60603-7-51
• PoE/PoH: IEEE 802.3bt
• UL 1863, cULus Listed

»Simply45 S45-3500B/W Cat5e UTP 180-Degree Unshielded Keystone Jack Spec Sheet (.pdf)
»Simply45 S45-3500B/W Cat5e UTP 180-Degree Unshielded Keystone Jack Installation Manual (.pdf)
