Shelly Wave i4 US Multi-Input Module, Z-Wave 800 & Z-Wave LR

Upgrade Multi-Touch Switches with Z-Wave Automation

Add one-touch activation of smart devices or smart home scenes to your switches with the Shelly Wave i4 US Multi-Input Control Module, Z-Wave 800 & Z-Wave LR! This Z-Wave 800 and Z-Wave LR compatible input reader module installs behind multi-input switches or multi-gang switches to convert them into remote controlled Z-Wave controllers capable of activating or deactivating Z-Wave scenes or remotely turning On/Off devices controlled by the switches. From a single location, users can activate/deactivate up to individual Z-Wave controlled devices or automated scenes created from a Z-Wave hub's mobile application or web dashboard. Up to 4 Z-Wave actions or smart scenes can be configured per switch, reaching up to 16 Z-Wave automations for 4-gang switches. The i4 US Module can be programmed to directly command other Z-Wave devices, including plug-in modules, switches, and more. This allows the switches wired to the i4 US Module to function as local Z-Wave automation controllers that anyone can use, no mobile app or web dashboard required.

• Z-Wave 800 control module adds On/Off/Activate Scene/Deactivate Scene commands to a multi-gang or multi-input switch installation
• Works with switches controlling lighting, small appliances, fans, and motorized shutters, blinds and drapery
• Multi-click/multi touch support allows for up to 3 to 4 Z-Wave automations to be programmed per switch, allowing for up to 12 to 16 automations per installation
• Can be powered by 110 to 240 VAC for most electrical installations
• Can trigger Z-Wave automated scenes and schedules to turn On/Off when a switch is flipped, double clicked, or held down and released
• Shares realtime status of controlled devices and delivers usage notifications
• Supports both standard Z-Wave mesh protocol or Z-Wave LR star protocol to offer users the choice between close range or incredible long range connection
• Standard Z-Wave mesh range reaches up to 130 feet (40m) line of sight to the nearest Z-Wave receiver or hub
• Z-Wave LR protocol uses direct transmissions between the device and hub to reach up to 1 mile (1.6km) line of sight at the cost of no signal repeating
• Z-Wave Smart Start technology pairs new devices quickly and S2 framework ensures enhanced security
• Matter certification guarantees integration into any Matter ecosystem

The Shelly Wave i4 US Module allows anyone in your home or business to activate/deactivate some of your programmed Z-Wave automations instead of relying on a single user. From one location you could turn On and Off all Z-Wave controlled lights in your home, slowly Open or Close a window to a specific position and turn a fan On or Off, activate a "Movie Night" smart scene that turns on multicolor lights and media devices plugged into a single outlet, and/or shut off a specific outlet to save some energy while you are away. The Wave i4 US utilizes Z-Wave 800 and Z-Wave LR wireless technology to provide reliable and long range connectivity, increased encryption protection, and easier setup into Z-Wave networks.

Shelly Smart Control App – Everything at Home Connected

Enjoy enhanced home automation control and precise monitoring of your Shelly devices no matter where you are with the Shelly Smart Control app. The app connects to Shelly's cloud service to help you control your connected devices remotely and send notifications for all automated events in your home directly to your smart device. You can easily configure devices and manage their settings individually, or you can create personalized scenes by combining Shelly devices to trigger certain actions in your smart home network. The Shelly Smart Control App supports real-time power metering with power management (PM) devices, smart plugs, and smart bulbs in order to allow you to build complex automation solutions for improved energy efficiency and lower electricity bills.

• Easy Inclusion and Control: Include and name new devices in the Shelly Smart Control app, assign them to the rooms they are located in, and group them into scheduled or automated scenes.
• Custom Dashboard: Create multiple dashboards for quick access to your preferred devices, rooms, and scenes. Issue commands using your dashboards or your preferred voice assistant towards individual devices or a group of devices.
• Smart Scenes: Combine multiple devices into one smart scene with pre-set triggered actions. Lower the lights when the TV is turned on for a "Movie night". Cut off the power and send a notification when a space heater has been left on past 9am while you are "Away at Work".
• Custom Schedules and Timers: Teach your home how to make you more comfortable by setting custom schedules based on your agenda. You can set a Shelly controlled switch to turn on the outdoor lights at 7:00 PM on workdays, or turn on your heater an hour before you return from work.
• Energy Monitoring: An energy consumption panel gives you a detailed view of your live and recorded energy usage from devices controlled by Shelly products. The information is stored in a free cloud and fully accessible to you for further analysis of your energy consumption habits.
• Works with Alexa: Shelly Smart Control is natively compatible with Amazon Alexa.

Installation Details

The Wave i4 US fits in behind a wall switch and requires a neutral wire for setup. This device will automatically attempt to locate and request inclusion into your local Z-Wave network after it is installed. In order to utilize Z-Wave LR communications, a Z-Wave LR compatible gateway or hub is required. Unlike standard Z-Wave mesh protocols, Z-Wave LR works as a star network, connecting a Z-Wave gateway directly to a Z-Wave LR device up to 1 mile (1.6km) away without using any other Z-Wave devices as a signal relay or node.

Z-Wave Plus v3 Certification

Z-Wave Plus v3 is an upgraded Z-Wave certification program to help you identify products that take advantage of the latest Z-Wave hardware platform, also known as 800 Series or Gen8 Z-Wave. Z-Wave Plus v3 compatible devices include extended wireless relay range up to 130 feet (40m) to the nearest Z-Wave device, three layers of encryption, faster operation, and longer battery life.

Z-Wave LR Certification

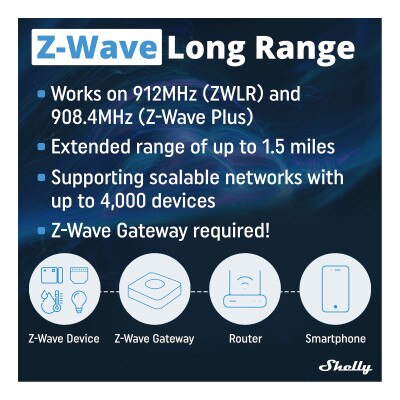

Z-Wave LR extends Z-Wave connectivity beyond the boundaries of a single building with increased range and coverage and optimized battery life. Z-Wave LR devices operate on a star network topology which features a Z-Wave LR compatible gateway/hub at a central point and then establishes a direct connection to devices. ZWLR compatible devices offer up to 262 ft (80 m) indoor range line of sight and 1 mile (1.6km) outdoor without using any other Z-Wave devices as a signal relay or node. Z-Wave networks can support both Z-Wave LR and traditional Z-Wave nodes can co-exist within the same network, enabling a wide variety and combination of Z-Wave devices and Z-Wave LR devices.

Contents

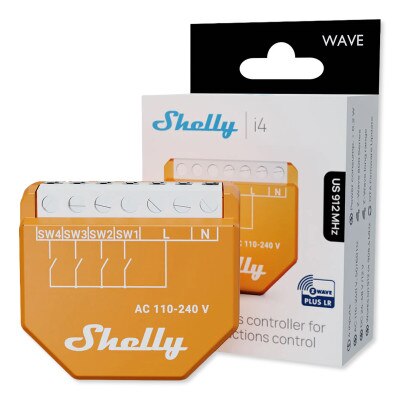

• Wave i4 US Module
• DSK Label
• User Guide

Notes

• Z-Wave compatible gateway or system hub required, sold separately.
• A neutral wire is required for installation.

Shelly Provides A 100% Wireless Smart Home

Shelly creates innovative and affordable smart home devices for residential and business applications. Shelly, formerly Qubino, now focuses on providing Wi-Fi and Z-Wave compatible smart home solutions. Shelly devices are among the smallest automation control devices in the world, allowing them to find their place in nearly any sized smart home installation. Shelly utilizes the latest technologies to deliver superior automation, safety, and energy efficiency to their customers without breaking down their walls or bank accounts.

• Manufacturer Part #: Wave i4 LR US
• Model: QLSN-0A24XUS
• EAN: 3800238072063
• Power Supply AC: 110 – 240 V AC, 50/60 Hz
• Power Supply DC: No
• Power Consumption: <0.2 W
• Overload Protection: No
• Power Measurement: No
• Number of Inputs: 4
• Z-Wave Long Range Network:
• Distance: Up to 262 ft.m indoors (80 ), line of sight or up to 3281ft. (1000m) outdoors
• Z-Wave Repeater: Yes
• Z-Wave LR Frequency Band: 912.0 MHz
• Z-Wave 800 Mesh Network:
• Distance: Up to 40 m indoors (131 ft.), line of sight
• Z-Wave Repeater: Yes
• Z-Wave LR Frequency Band: 908.4 MHz
• CPU: Z-Wave S800

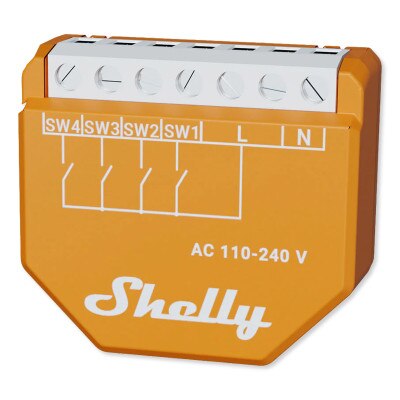

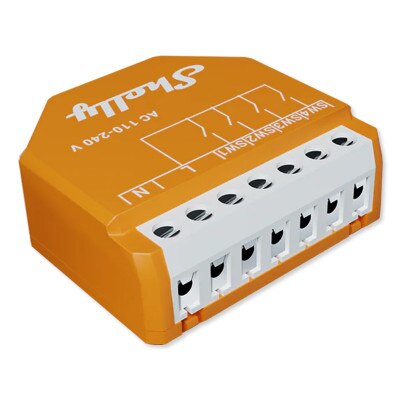

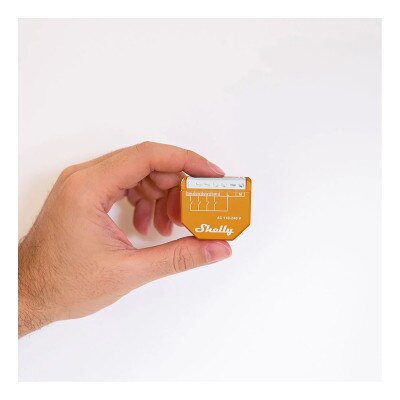

• Size (H x W x D): 1.46 x 1.65 x 0.63 ±0.02 inch (37 x 42 x 16 ±0.5 mm)
• Weight: 17 g / 0.6 oz
• Mounting: In-wall box
• Screw Terminals Max. Torque: 0.4 Nm / 3.5 lb in.
• Conductor Cross Section: 0.5 to 1.5 mm² / 20 to 16 AWG
• Conductor Stripped Length: 5 to 6 mm / 0.20 to 0.24 in
• Shell Material: Plastic
• Color: Orange
• Ambient Temperature: -20°C to 40°C / -5°F to 105°F
• Humidity: 30% to 70% RH
• Max. Operating Altitude: 6562 ft (2000m)
• Warranty: 3 Years

»Shelly Wave i4 User Manual (Multilingual) (.pdf)
