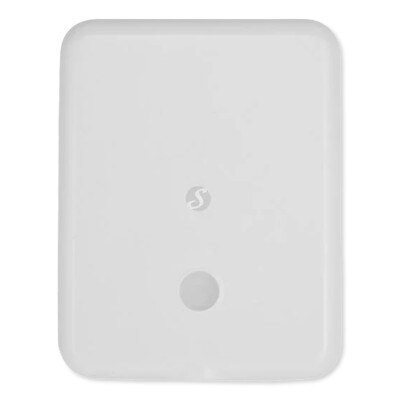

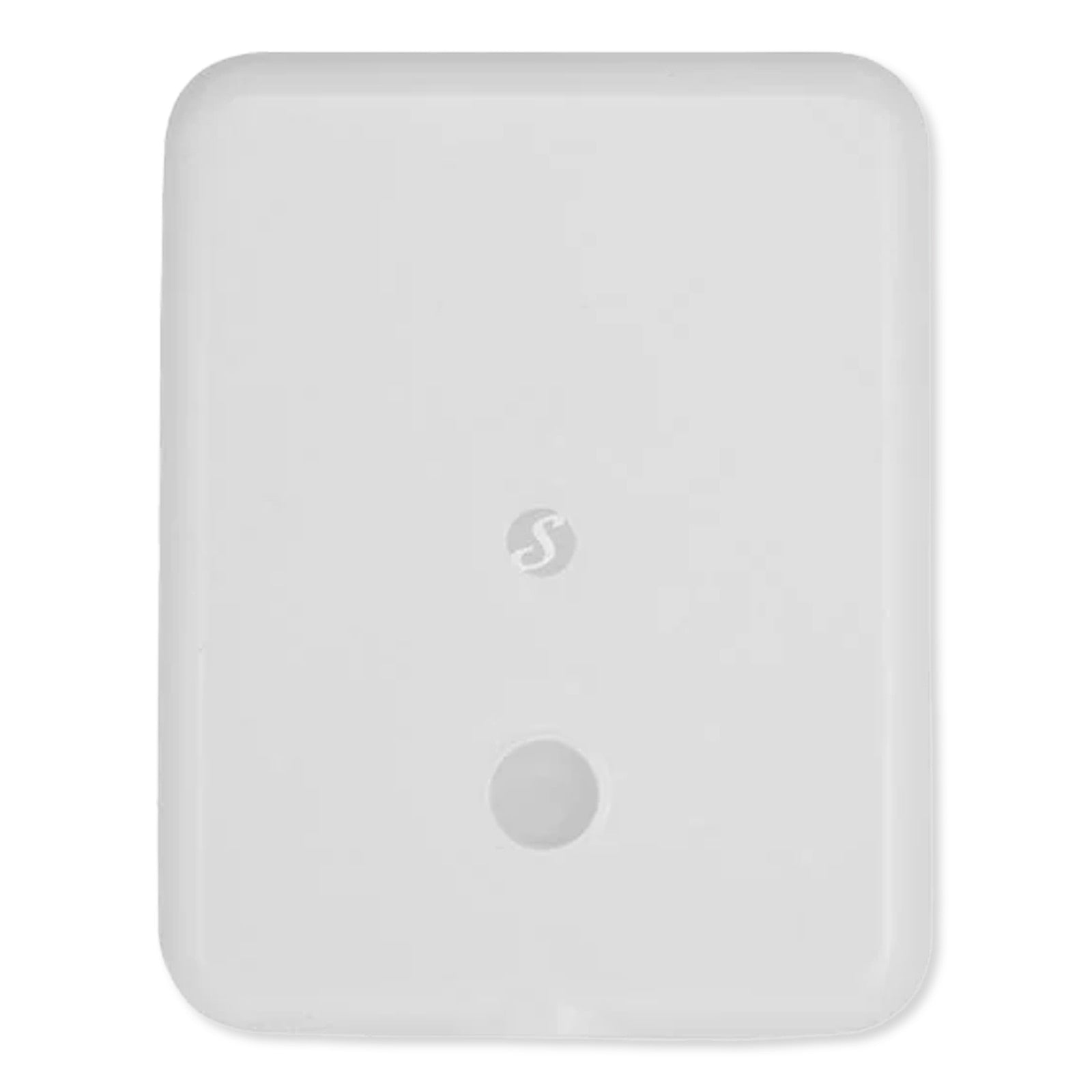

Shelly Flood Gen4 Sensor

Instant Notifications When A Water Leak Is Detected

Prevent costly water damage at home and immediately receive a notification when a water leak is detected with the Shelly Flood Gen4 Sensor. This smart flood sensor includes an extendable leak sensor cable (2m) that can cover small to large areas to detect water leaks the moment they occur. The sensor supports two modes: Flood Detection and Rain Detection, comes with three built-in flood alarms (Intense, Normal, and Economic), and is designed with multiprotocol connectivity for Wi-Fi, Bluetooth, Zigbee, and Matter, making it ideal for integration into smart home systems. The Shelly Flood Gen4 is also battery powered and IP44 rated against splashing water for added protection. It can be placed in areas that are prone to water leaks such as under water or heat pipes, fridges and freezers, washing machines, and basement and bathrooms floors. You can also pair it with a Shelly 1 Gen4 that's connected to an electronically controlled motorized ball valve to allow the system to automatically shut off your home's main water supply as soon as a leak is detected. Additionally, you can control and manage the Shelly Flood Gen4, as well as set up notifications via the Shelly Smart Control app (for iOS and Android devices).

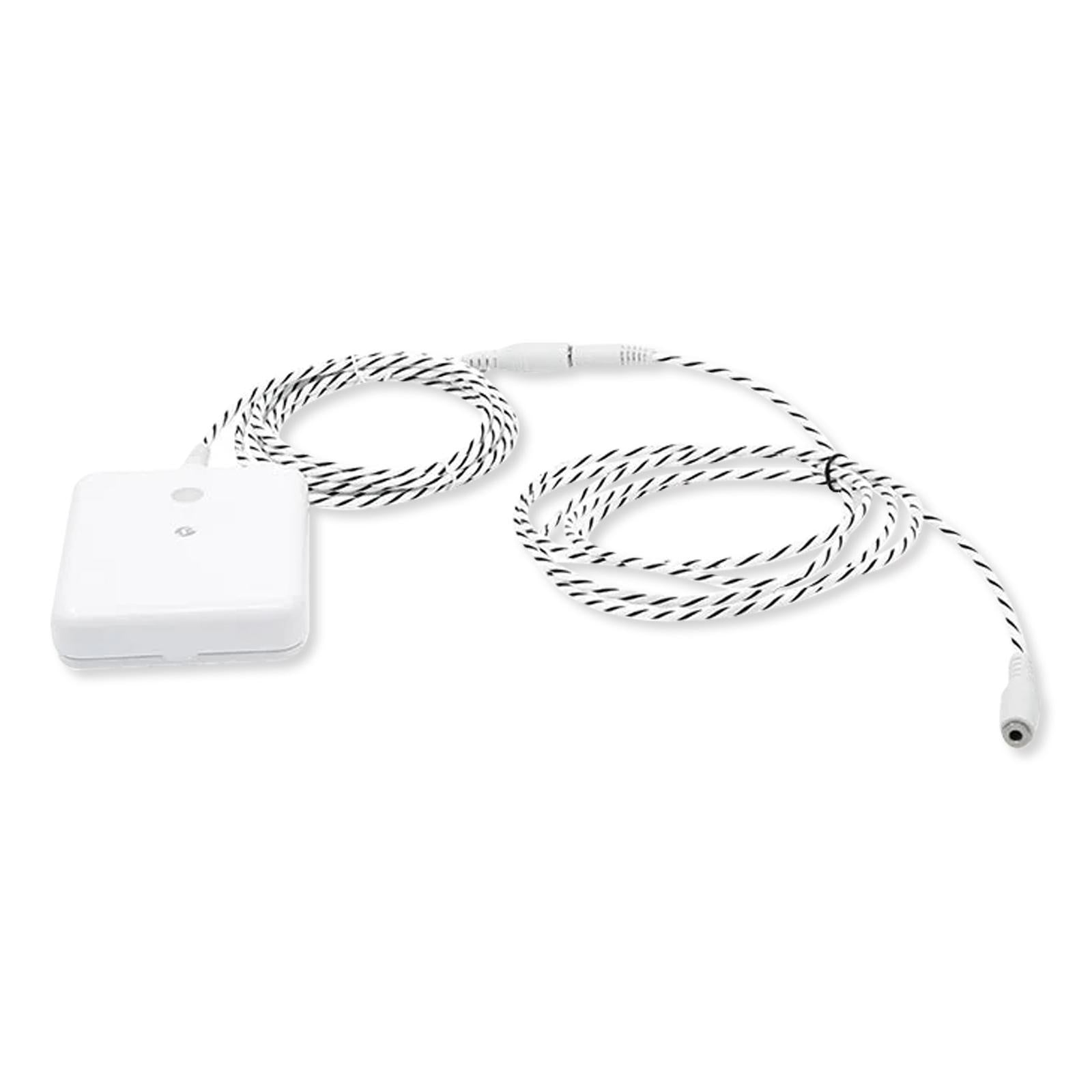

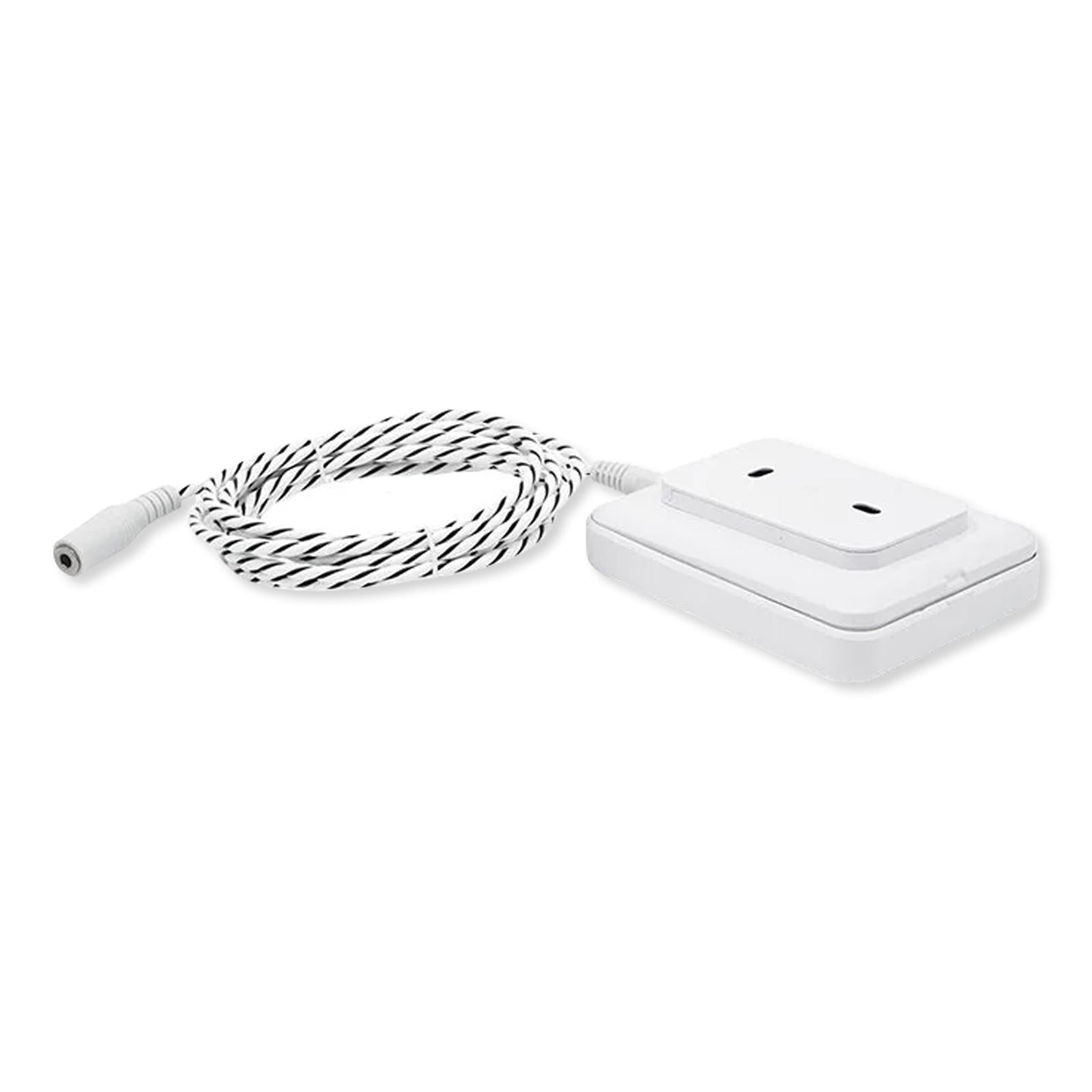

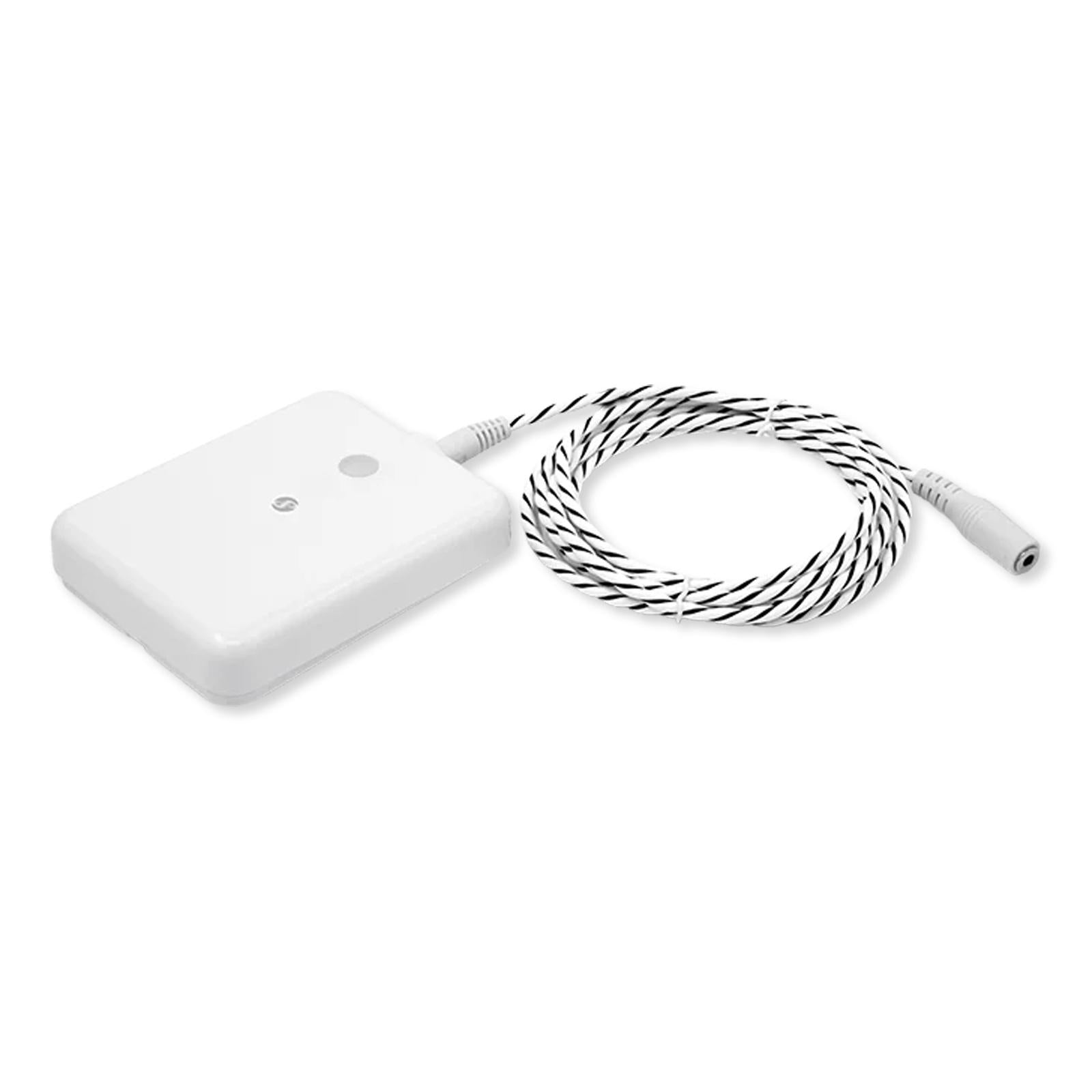

• Detects water leaks with 2m extendable leak sensor cable in small to large areas

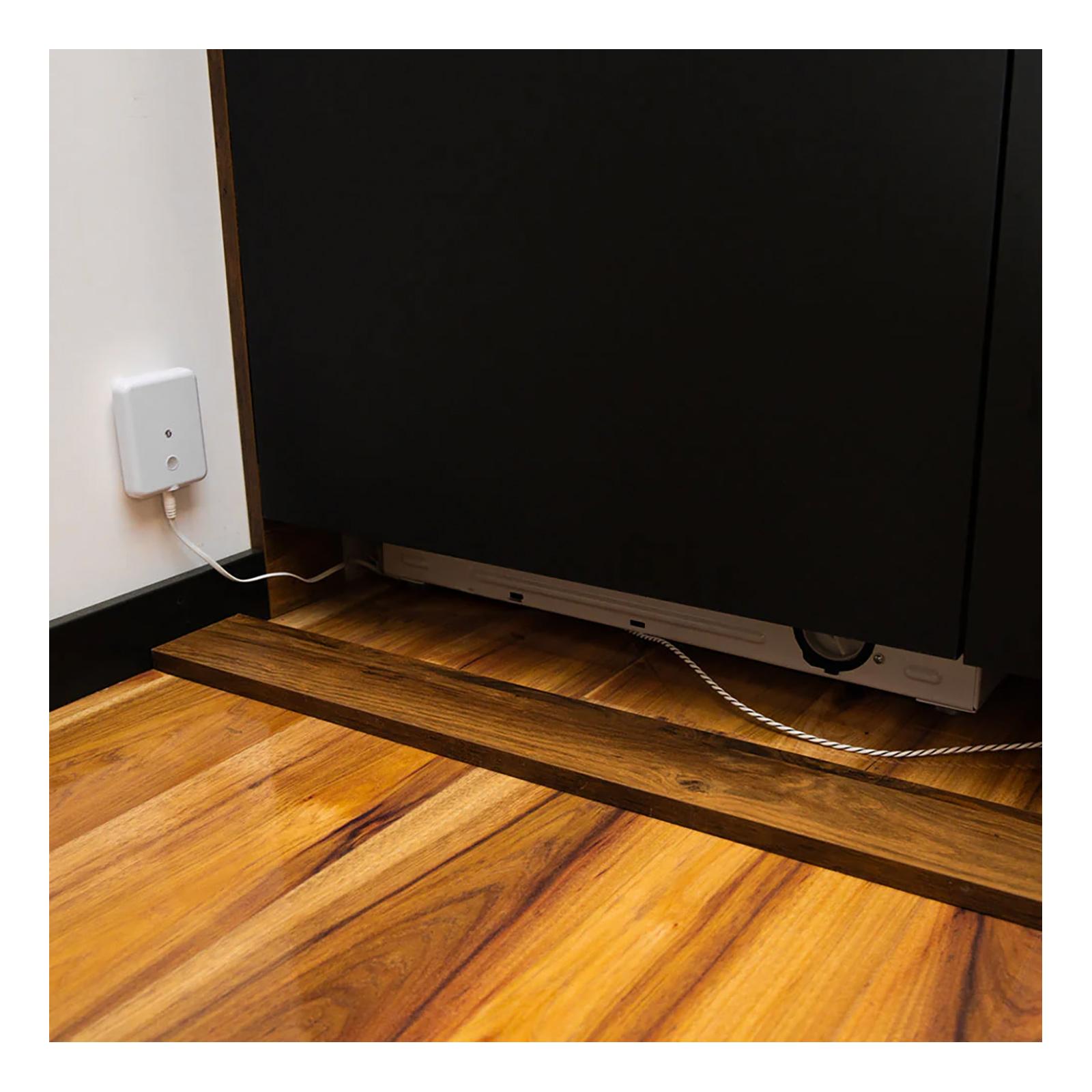

• Place in high-risk areas such as under a sink, near a washing machine, or close to water supply lines, or on bathroom floors
• Supports Flood and Rain Detection Modes and has 3 built-in Flood Alarm Modes: Intense, Normal, and Economic
• Can be used to detect rainfall and used to automatically trigger the Shelly 2PM Gen4 to control a motorized awning
• Designed with multiprotocol connectivity (Wi-Fi, Bluetooth, Zigbee, and Matter) for easy integration into home automation systems
• Receive alerts, adjust settings, and manage it from the Shelly Smart Control App (for iOS and Android)
• Battery powered for uninterrupted use and is IP44 rated against splashing water

Shelly Smart Control App – Everything at Home Connected

Enjoy enhanced home automation control and precise monitoring of your Shelly devices no matter where you are with the Shelly Smart Control app. The app connects to Shelly's cloud service to help you control your connected devices remotely and send notifications for all automated events in your home directly to your smart device. You can easily configure devices and manage their settings individually, or you can create personalized scenes by combining Shelly devices to trigger certain actions in your home automation. The Shelly Smart Control App supports real-time power metering with power management (PM) devices, smart plugs, and smart bulbs in order to allow you to build complex automation solutions for improved energy efficiency and lower electricity bills.

• Easy Inclusion and Control: Include and name new devices in the Shelly Smart Control app, assign them to the rooms they are located in, and group them into scheduled or automated scenes.
• Custom Dashboard: Create multiple dashboards for quick access to your preferred devices, rooms, and scenes. Issue commands using your dashboards or your preferred voice assistant towards individual devices or a group of devices.
• Smart Scenes: Combine multiple devices into one smart scene with pre-set triggered actions. Lower the lights when the TV is turned on for a "Movie night". Cut off the power and send a notification when a space heater has been left on past 9am while you are "Away at Work".
• Custom Schedules and Timers: Teach your home how to make you more comfortable by setting custom schedules based on your agenda. You can set a Shelly controlled switch to turn on the outdoor lights at 7:00 PM on workdays, or turn on your heater an hour before you return from work.
• Energy Monitoring: An energy consumption panel gives you a detailed view of your live and recorded energy usage from devices controlled by Shelly Qubino products. The information is stored in a free cloud and fully accessible to you for further analysis of your energy consumption habits.
• Works with Alexa: The Shelly Smart Control app is natively compatible with Amazon Alexa.

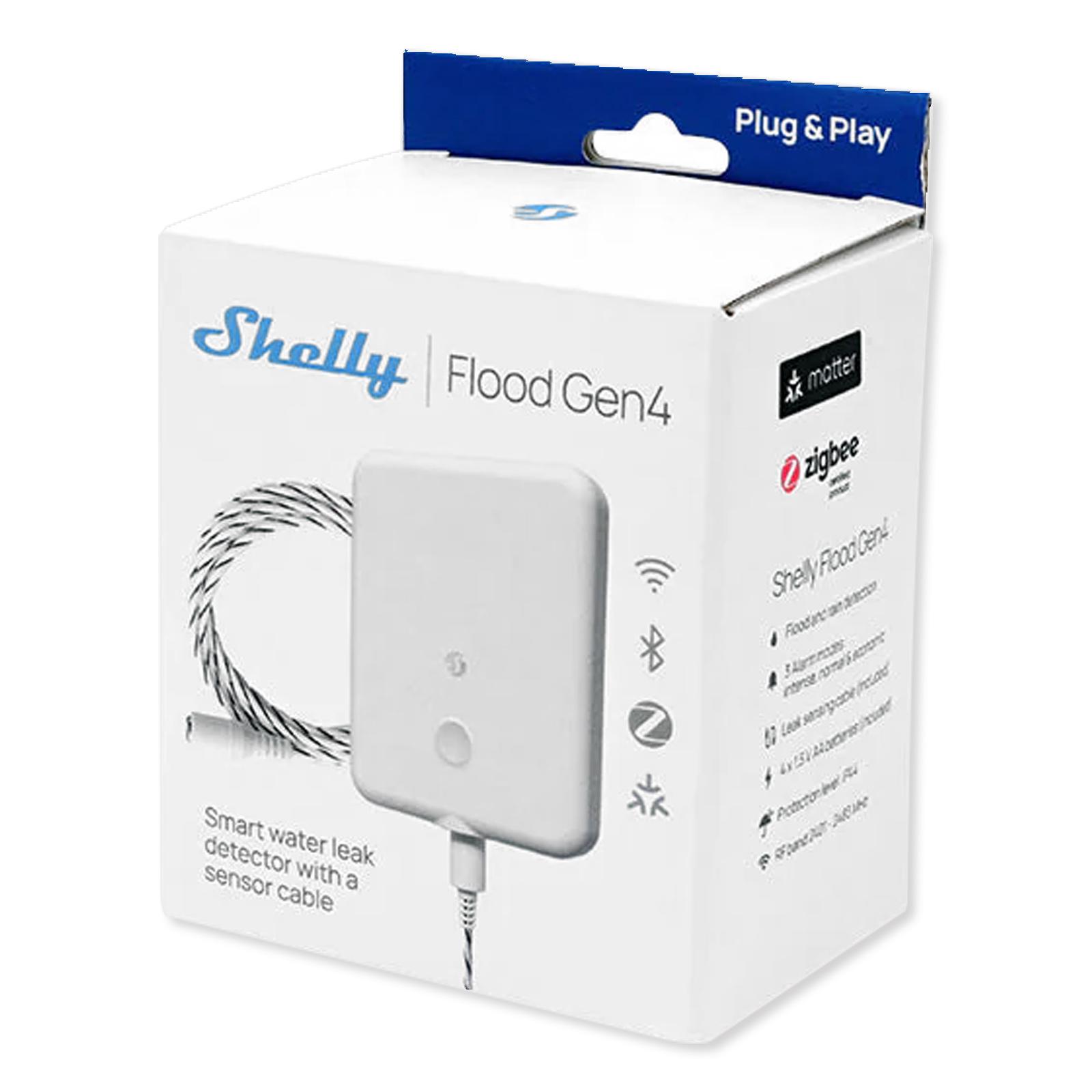

Contents

• Shelly Flood Gen4 Sensor
• (4) AA 1.5V Batteries
• Manual

NOTE: Main device must not be directly exposed to rainfall – place the device in a semi-sheltered location while positioning the leak sensor cable where it can be exposed to rain.

Shelly Qubino Provides A 100% Wireless Smart Home

Shelly Qubino creates innovative and affordable smart home devices for residential and business applications. Qubino, now owned by Shelly, focuses on providing Z-Wave compatible smart home solutions. Shelly Qubino devices are among the smallest Z-Wave devices in the world, allowing them to find their place in nearly any sized smart home installation. Shelly Qubino utilizes the latest Z-Wave technologies to deliver superior automation, safety, and energy efficiency to their customers without breaking down their walls or bank accounts.

• Manufacturer Part #: Flood Gen4
• Model: S4SN-0071A
• EAN: 3800238071714

Physical

• Size (H x W x D): 3.82 x 2.99 x 0.98 inch (97 x 76 x 25 mm)
• Weight:
• 91 g / 3.21 oz (without batteries)
• 185 g / 6.53 oz (with batteries)
• Mounting: Wall
• Shell Material: Plastic
• Color: White

Environmental

• Ambient Working Temperature: -20°C to 40°C / -5°F to 105°F
• Humidity: 30 % to 70 % RH
• Max. Altitude: 2000 m / 6562 ft

Electrical

• Power Supply: Batteries (4 x AA 1.5 V)
• Battery Life: Approx. 2 years (depending on batteries used, device usage, and network connection strength)

Sensors

• Leak Sensor Cable: 2 m, extendable (up to 150 m), attaches via designated port

Radio

• Wi-Fi:
• Protocol: 802.11 b/g/n/ax
• RF Band: 2401 – 2483 ÐœHz
• Max. RF Power: <20 dBm
• Range (Depends on Local Conditions): Up to 30 m / 100 ft indoors and 50 m / 160 ft outdoors
• Bluetooth:
• Protocol: 5 (LE)
• RF Band: 2402 – 2480 MHz
• Max. RF Power: <20 dBm
• Range (Depends on Local Conditions): Up to 10 m / 33 ft indoors and 30 m / 100 ft outdoors
• Zigbee:
• Protocol: 802.15.4
• RF Bands: 2405 to 2480 MHz
• Max. RF Power: <20 dBm
• Range (Depends on Local Conditions): Up to 100 m / 328 ft indoors and 300 meters / 984 ft outdoors

Microcontroller Unit

• CPU: ESP-Shelly-C68F
• Flash: 8 MB

Firmware Capabilities

• Schedules: No
• Webhooks (URL actions): 10 with 2 URLs per hook
• Scripting: No
• MQTT: Yes
• UDP: Yes
• KVS (Key-Value Store): Yes

»Shelly Flood Sensor Gen4 User Manual (Multilingual) (.pdf)
