Seco-Larm Surface-Mount Electric Rim Strike, 1/2 Inch

SKU: SESD998CD3AQ

Usually ships in 3-5 days.

$249.44

WARNING: Cancer and Reproductive Harm – www.P65Warnings.ca.gov

Details

Ensure Secure Open/Close Access with an Electric Rim Strike

Adds secure access control to your push bar release with the Seco-Larm Surface-Mount Electric Rim Strike, 1/2 Inch. This electric door strike for rim-type exit devices, operates with 1/2" Pullman latch bolts. It features fail-safe/fail-secure options for enhanced access control security and guaranteed operation in daily and emergency situations. The strike surface mounts onto metal or wood frames, eliminating the need for cutting into the frame during installation. Plus, the strike is built with durable, stainless steel for long-lasting use and it provides additional protection to your property because it's tamper-resistant.

  • Electric rim door strike for up to 1/2" Pullman latches
  • Surface-mounts on metal or wood frames
  • Field-selectable for fail-safe or fail-secure operation
  • Works with standard rim-type exit devices including SECO-LARM SD-962AR-36A and SD-962AR-36G
  • Built with durable stainless steel and has a static strength of 1,500-lb (6673N)
  • Tamper-resistant
  • For Indoor Use Only

Contents

  • Rim Strike
  • Blind Nut Kit
  • Dead Latch Ramp Adapter
  • Hex Wrench
  • 12VDC Cable Connector
  • 24VDC Cable Connector
  • (2) Blind Nuts
  • (2) Crimp Connectors
  • (2) Hex Socket Head Cap Screws
  • (2) Philips Flat Head Screws
  • 1/16", 2x 1/8" (1.5mm, 3mm) Spacers
  • Manual

Notes

  • For Indoor use only.
  • The Electric Rim Strike is intended to be used with UL Listed Exit Hardware.
  • The Electric Rim Strike is designed to avoid impairing intended operations of existing emergency units or panic hardware mounted on the door.

Seco-Larm Security Products

So many places and things to protect; so many ways to protect them; one partner: Seco-Larm. Under the Enforcer trademark, Home Controls offers an impressive line of Seco-Larm security products, ranging from simple switches to some of the most sophisticated alarm devices. Whether for physical security, CCTV, access control, RF equipment, or vehicle security, Seco-Larm is the premier choice. Seco-Larm gives its customers such an extensive range of dependable, cost-effective security products with a full program of service and support.

Specifications

  • Manufacturer Part #: SD-998C-D3AQ
  • UPC: 676544020424
  • Operating Voltage: 12/24 VDC
  • Current Draw: 540mA@12VDC, 270mA@24VDC
  • Maximum Latch Throw: 1/2" (13mm)
  • Static Strength: 1,500-lb (6673N)
  • Dynamic Strength: 70ft-lb (95J)
  • Endurance: 250,000 cycles (UL Tested), Level IV
  • Destructive Attack: Level I
  • Line Security: Level I
  • Standby Power: Level I
  • Operating Temperature: 14° to 120° F (-10° to 49° C)
  • Operating Humidity: 0 to 85%

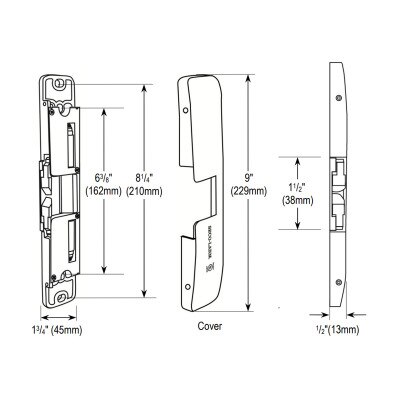

  • Dimensions: 9(H) x 1-3/4(W) x 1/2(D) inches (229 x 45 x 19 mm)
  • Warranty: 5-Year Limited

Downloads

»Seco-Larm SD-998C-D3AQ Tamper-Resistance Electric Rim Strike Spec Sheet (.pdf)
»Seco-Larm SD-998C-D3AQ Surface-Mount Electric Rim Strikes Installation Manual (.pdf)
