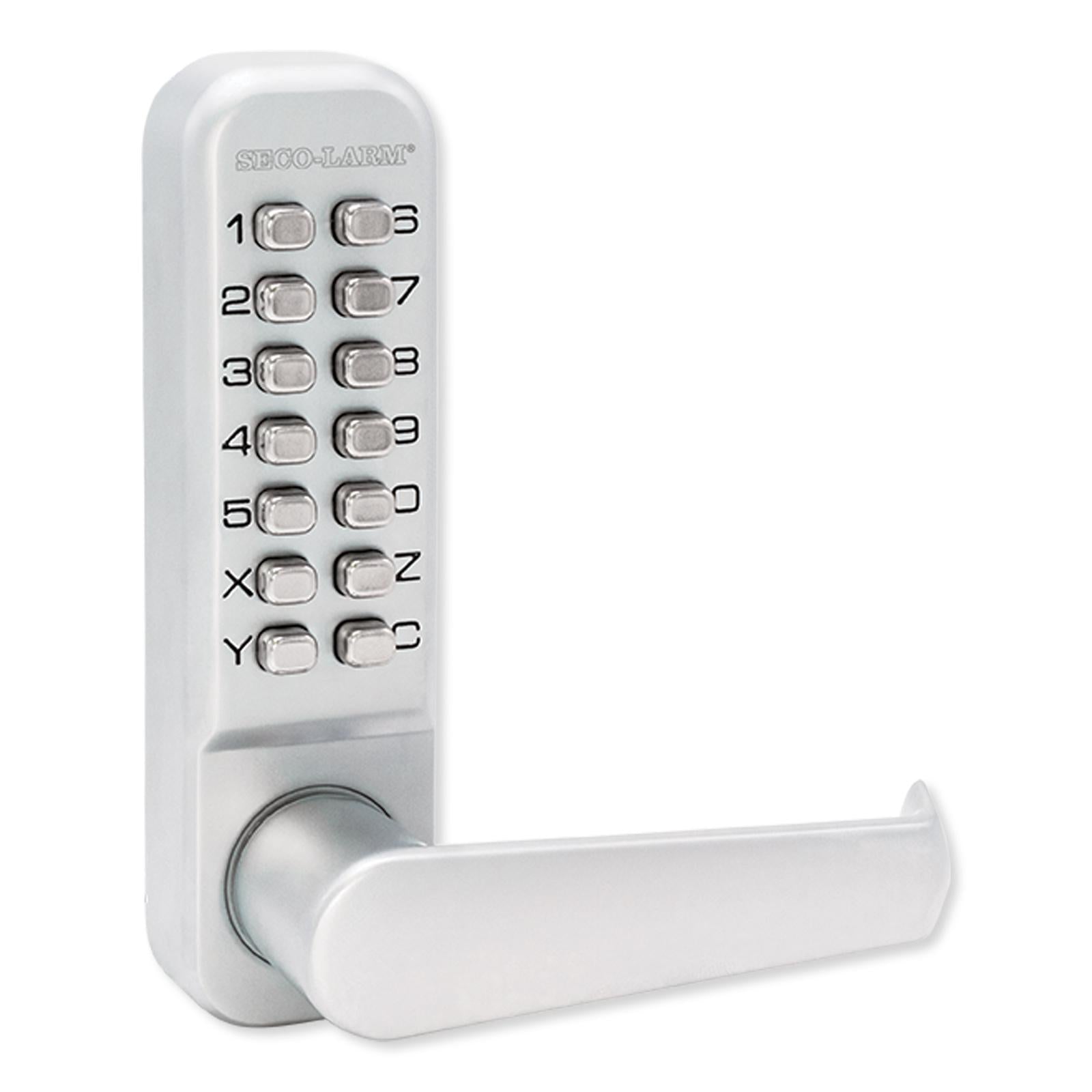

Seco-Larm Mechanical Keypad Door Lock

Completely Mechanical, No Batteries Or Wires Needed

Provide an easy way to access your property without having to use keys with the Seco-Larm Mechanical Keypad Door Lock. Unlike wired keypad door locks that depend on batteries and wired installations, this mechanical keypad door lock does not and features non-sequential code access, which allows users to enter the numbers in any order to unlock the door. Over 8,000 possible codes can be created using the lock's 13 code buttons. This door lock can be used indoors or outdoors and is extremely durable and made out of heavy-duty steel (US32D/630). The inside handle always operates to allow safe egress in an emergency and the door is suitable for installations on door thicknesses from 1-3/16" to 2-1/8" (30 to 54 mm).

• Fully mechanical operation – no batteries or power source required
• Both external and internal entry levers with 13-button keypad offers over 8,000 possible code combinations
• Compatible with door thicknesses ranging from 1-3/16" to 2-1/8" (30–54 mm)
• Constructed with a heavy-duty steel case (US32D/630 finish) and designed for both indoor and outdoor use
• Allows free egress from the inside for safety

Contents

• Mechanical Keypad Door Lock
• Hardware
• Manual

Seco-Larm Security Products

So many places and things to protect; so many ways to protect them; one partner: Seco-Larm. Under the Enforcer trademark, Home Controls offers an impressive line of Seco-Larm security products, ranging from simple switches to some of the most sophisticated alarm devices. Whether for physical security, CCTV, access control, RF equipment, or vehicle security, Seco-Larm is the premier choice. Seco-Larm gives its customers such an extensive range of dependable, cost-effective security products with a full program of service and support.

• Manufacturer Part #: SD-962H-8LAQ
• UPC: 676544019831
• Type: Fully mechanical keypad lock
• Code Length: 4 to 6 Digits (0 – 9, X, Y, and Z)
• Handed: Field reversible (factory default – internal, right-handed / external, left-handed)
• Bolt Throw: 1/2" (13mm)
• Backseat: 2-3/4" (70mm)
• Housing: Heavy-duty satin finish stainless steel US32D/630

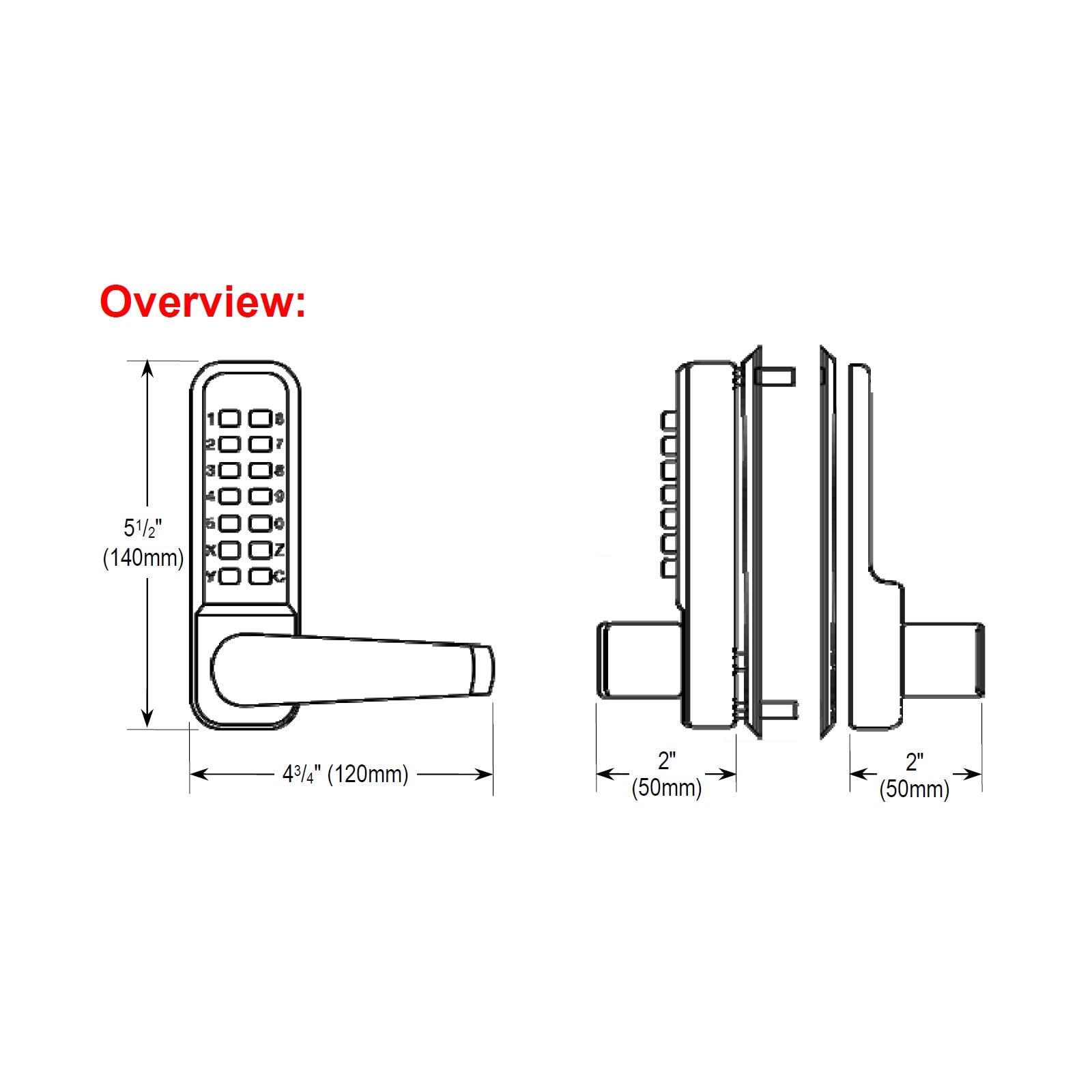

• Dimensions: 2 x 4-3/4 x 5-1/2 inches (50 x 120 x 140 mm)
• Weight: 3-lb 1-oz (1.35kg)
• Certifications: FCE, RoHS
• Warranty: 1 Year Lifetime Limited

»Seco-Larm SD-962H-8LAQ Mechanical Keypad Door Lock Spec Sheet (.pdf)
»Seco-Larm SD-962H-8LAQ Mechanical Keypad Door Lock Installation Manual (.pdf)
