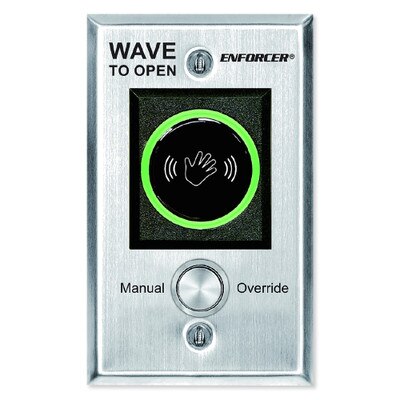

Seco-Larm Enforcer Wave-to-Open Sensor with Manual Override Button

SKU: SESD927PKCNEVQ

Order now and we'll ship same business day (if ordered before 3 pm PST).

$41.95

WARNING: Cancer and Reproductive Harm – www.P65Warnings.ca.gov

Details

Wave Your Hand To Exit Your Property

With the wave of a hand you can request egress from a protected area or activate a device with the Seco-Larm Enforcer Wave-to-Open Sensor with Manual Override Button. When activated, this LED illuminated sensor can glow from red to green or green to red, and since it can be activated with a simple wave of a hand (no touch to reduce the risk of contamination), it's perfect for any property including schools, hospitals, labs, clinics, clean rooms, warehouses, factories, and office buildings.

  • No touch egress with a wave of the hand (IR technology) to exit a secure area or activate a device
  • Stainless steel single-gang plate 3A relay (can be adjusted from 0.5~30
  • sec, toggle, or as long as a hand is near the sensor)
  • Hand wave/sensing range from 2-3/8" to 8"
  • LED colors can be selected from red to green or green to red
  • Manual override button works as backup to the sensor
  • Quick connect screwless terminal block

Contents

  • Wave-to-Open Sensor
  • Manual

Seco-Larm Security Products

So many places and things to protect; so many ways to protect them; one partner: Seco-Larm. Under the Enforcer trademark, Home Controls offers an impressive line of Seco-Larm security products, ranging from simple switches to some of the most sophisticated alarm devices. Whether for physical security, CCTV, access control, RF equipment, or vehicle security, Seco-Larm is the premier choice. Seco-Larm gives its customers such an extensive range of dependable, cost-effective security products with a full program of service and support.

Specifications

  • Manufacturer Part #: SD-927PKC-NEVQ
  • Operating Voltage: 12~24 VAC/VDC
  • Current Draw (max.): 120mA@12VDC
  • Relay Type: Form C dry contact, 3A@24VDC
  • Override Button:
    • Switching Capacity: 3A@24VDC
    • Mechanical Life: 500,000 cycles
  • Response Time: 10ms
  • LEDS: Default, reversible by jumper
    • Standby: Red
    • Triggered: Green
  • Output Time: Adjustable, 0.5~30 sec., toggle, or as long as sensor is triggered
  • Sensing Range: Adjustable, 2-3/8"~8" (6-20 cm)
  • Operating Temperature: -4°~131° F (-20°~55° C)
  • Weight: 3.9-oz (110g)
  • Warranty: 1 Year
