Seco-Larm Enforcer Touchless Infrared Proximity Sensor

SKU: SECSPD4xxPQ

Please Select Option To View Availability

$39.58 to $45.83

WARNING: Cancer and Reproductive Harm – www.P65Warnings.ca.gov

Details

IR Sensor Provides Hands-Free Operation And Access Control

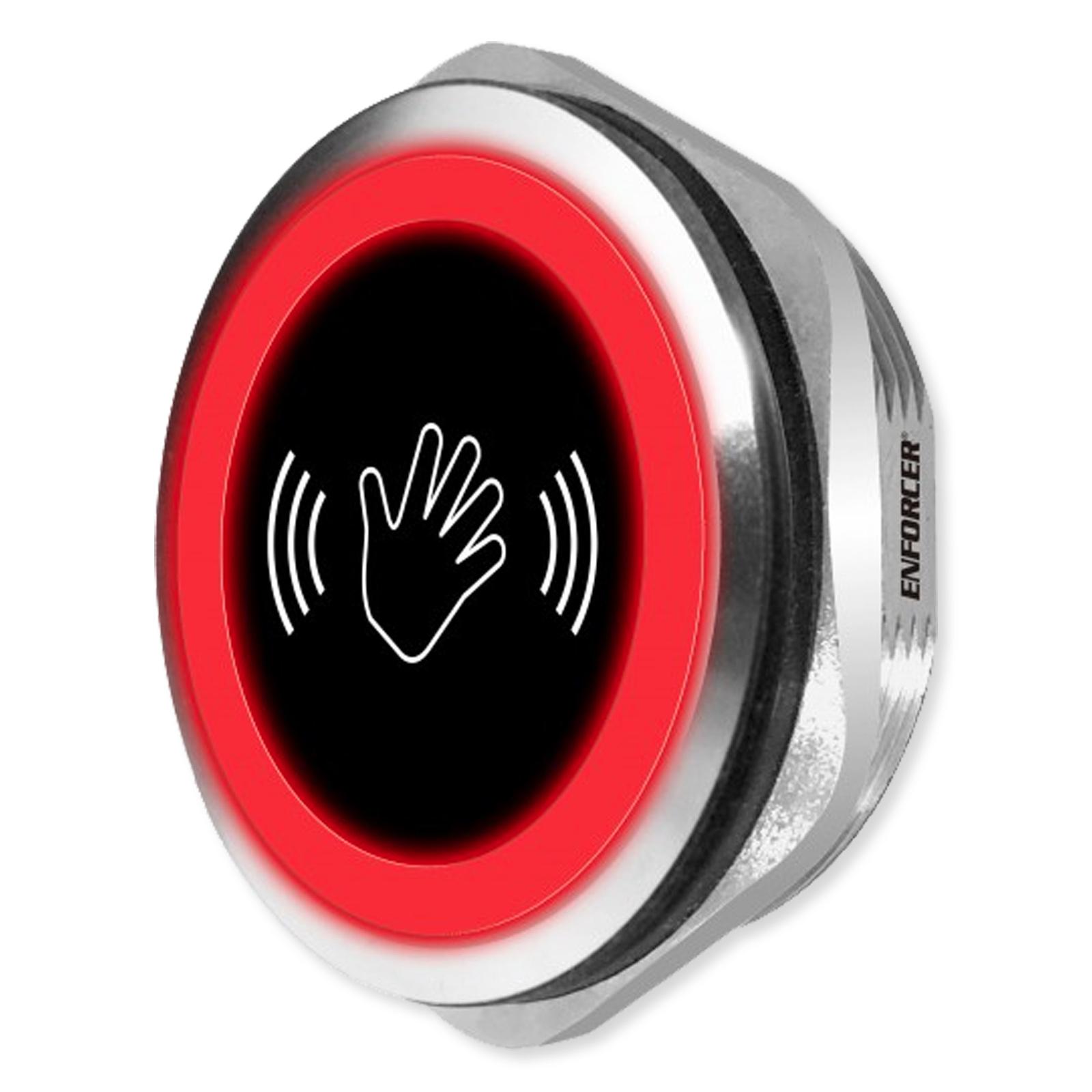

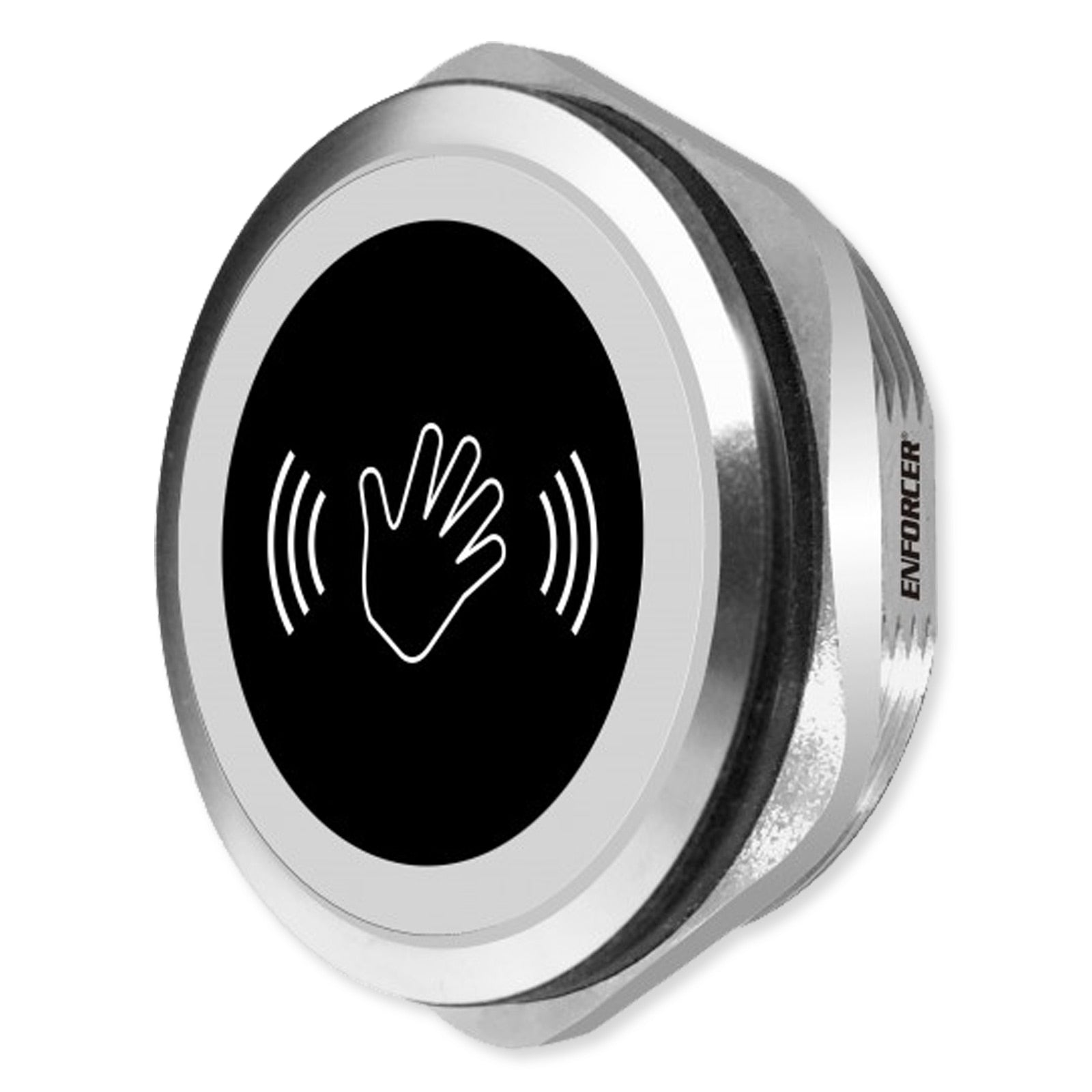

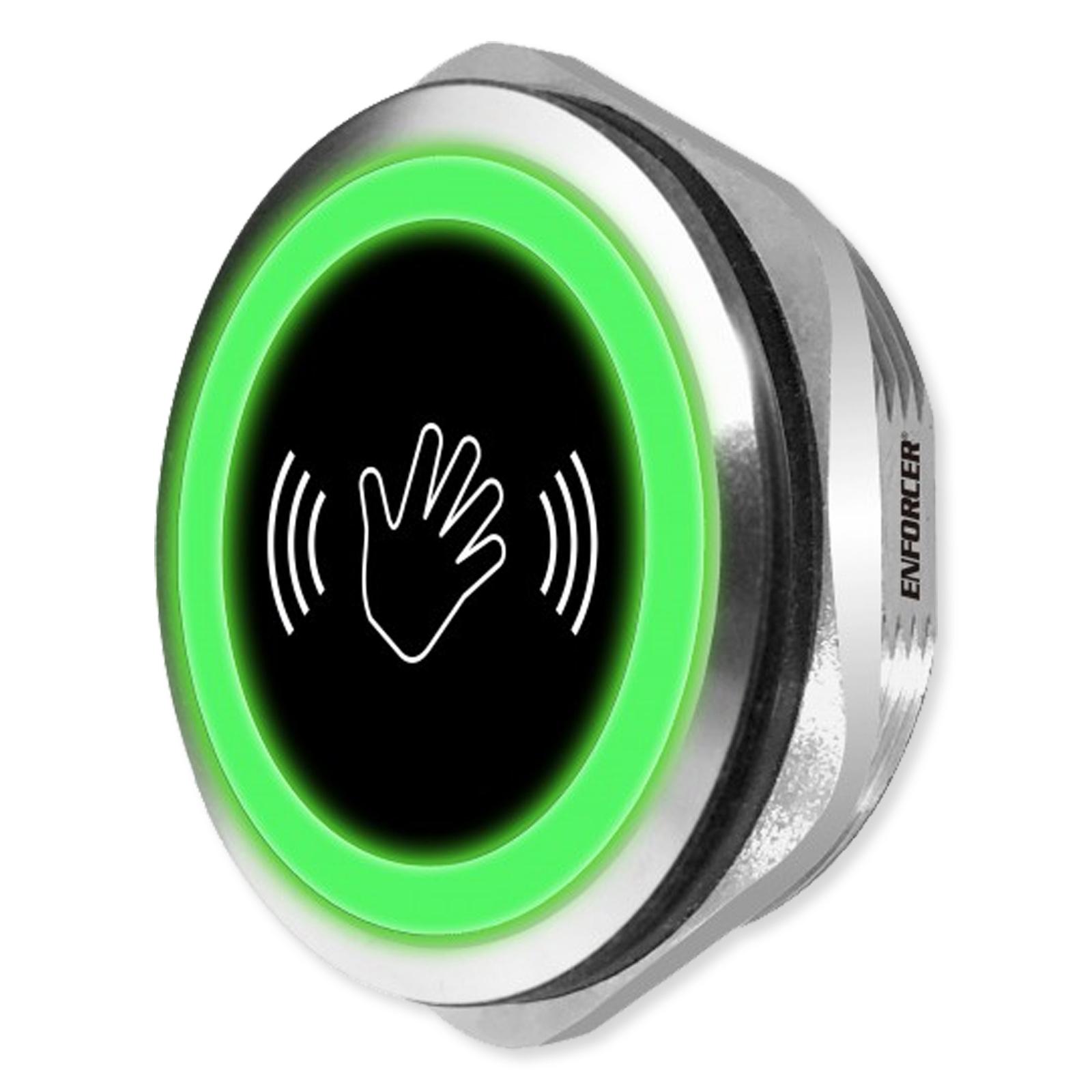

Install the Seco-Larm Enforcer Touchless Infrared Proximity Sensor, Stainless Steel, to provide touchless, hands-free access control to doors and other devices on your property. This IR sensor detects nearby handwave motions in order to activate nearby devices, making it an excellent option to reduce the risk of spreading germs and viruses through cross-contamination. When activated, the sensor's built-in LED changes color (from red to green or green to red) to indicate a successful detection. The sensor's no-touch design is an excellent option for installing in a variety of locations, including hospitals, labs, clinics, clean rooms, warehouses, factories, schools, and office buildings.

  • Provides no-touch operation to help reduce the risk of spreading germs and viruses via cross-contamination
  • Adjustable hand-wave/sensing range up to 6 inches
  • LED colors can be selected from red to green or green to red
  • Relay type: Form C dry contact, NO/NC/COM, 1A@24VDC, 0.5A@12VAC
  • 1-Year Warranty

Contents

  • Infrared Proximity Sensor
  • Manual

Seco-Larm Security Products

So many places and things to protect; so many ways to protect them; one partner: Seco-Larm. Under the Enforcer trademark, Home Controls offers an impressive line of Seco-Larm security products, ranging from simple switches to some of the most sophisticated alarm devices. Whether for physical security, CCTV, access control, RF equipment, or vehicle security, Seco-Larm is the premier choice. Seco-Larm gives its customers an extensive range of dependable, cost-effective security products with a full program of service and support.

Specifications

  • Manufacturer Part #:

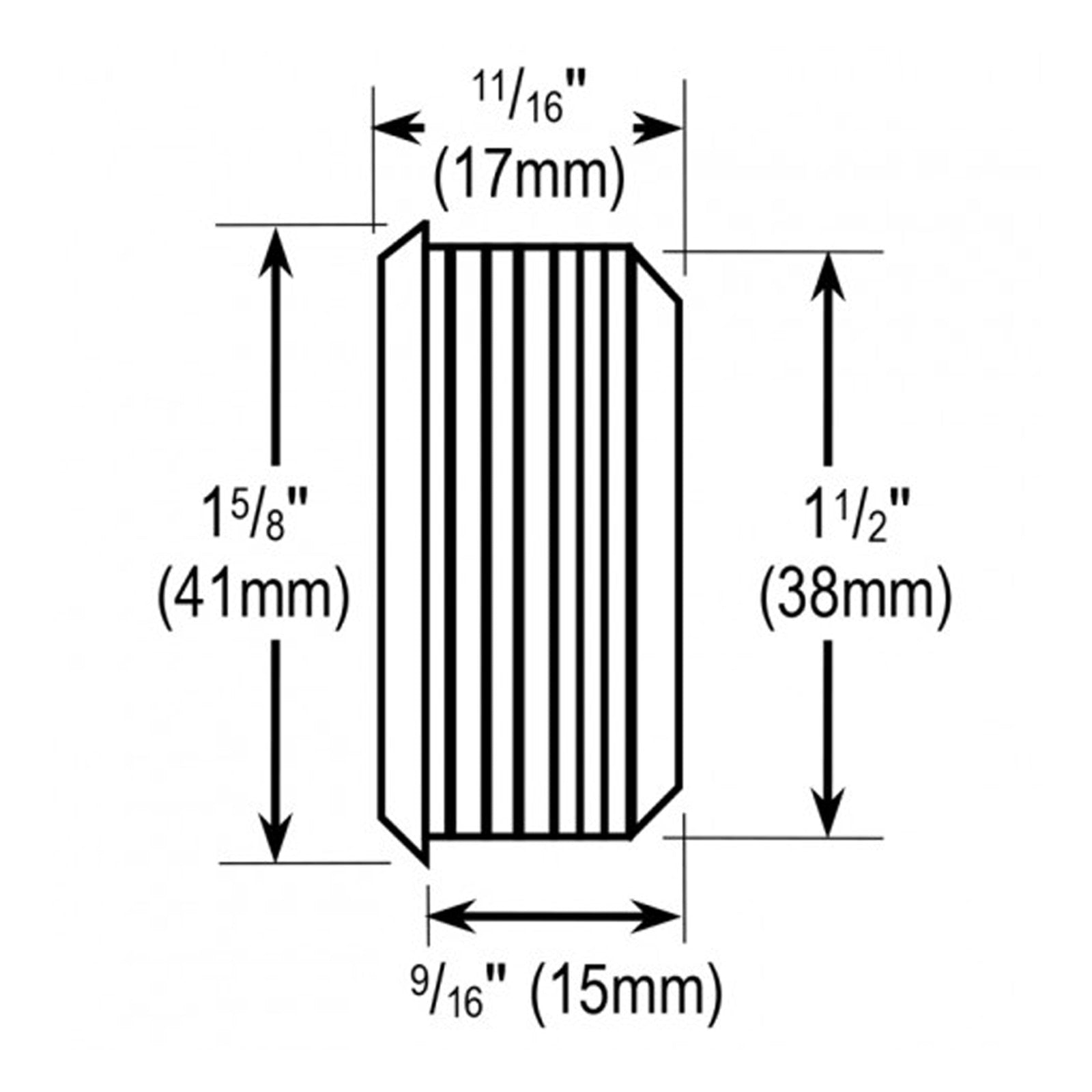

    • CS-PD422-PQ (22mm)
    • CS-PD438-PQ (38mm)
  • UPC:
    • CS-PD422-PQ (22mm): 676544021070
    • CS-PD438-PQ (38mm): 676544021087
  • Case Material: Stainless Steel
  • Operating voltage: 12~24 VAC/VDC
  • Power Consumption of CS-PD422-PQ:
    • 12VDC: 30mA@12VDC
    • 24VDC: 35mA@24VDC
  • Power Consumption of CS-PD438-PQ:
    • 12VDC: 35mA@12VDC
    • 24VDC: 45mA@24VDC
  • Relay Type: Form C dry contact, NO/NC/COM, 1A@24VDC, 0.5A@12VAC
  • Connectors: Wire terminals
  • Response Time: 10ms
  • Output Time: 0.5~30 s or Toggle
  • Sensing Range: 1-9/16" ~ 6" (4~15 cm)
  • LED Status Indicators: Selectable red/green or green/red
  • Operating Life:
    • Relay: 1,000,000 cycles
    • Sensor: 100,000 Hours
  • IP Rating: IP65 (front panel only)
  • Operating Temperature: -4° to 131° F (-20° to 55° C)
  • Credentials: RoHS
  • Warranty: 1 Year

Downloads

»Seco-Larm Enforcer Infrared Proximity Sensors Spec Sheet (.pdf)
»Seco-Larm Enforcer Infrared Proximity Sensors Installation Manual (.pdf)
