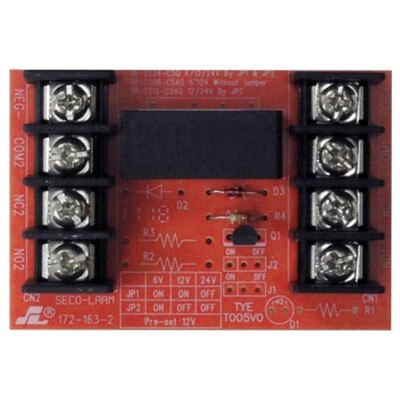

Seco-Larm Enforcer Relay Module, 6/12VDC Trigger Voltage, One 5A Form C DPDT Relay
WARNING: Cancer and Reproductive Harm – www.P65Warnings.ca.gov
Details
General Purpose Form C DPDT Relay
As a general purpose relay, the Seco-Larm Enforcer Relay Module (6/12VDC Trigger Voltage, One 5A Form C DPDT Relay) can be used for various Double Pull Double Throw (DPDT) applications. Pre-wiring and screw terminals on the board facilitate installation.
Building A Secure Future Since 1971
So many places and things to protect; so many ways to protect them; one partner: Seco-Larm. Under the Enforcer trademark, Home Controls offers an impressive line of Seco-Larm security products, ranging from simple switches to some of the most sophisticated alarm devices. Whether it’s physical security, CCTV, access control, RF equipment, or vehicle security, Seco-Larm is the premier choice. Seco-Larm gives its customers an extensive range of dependable, cost-effective security products with a full program of service and support.
Specifications
- Supply Voltage: 6/12VDC
- Trigger Voltage: 6/12VDC
- Voltage Selection: Auto-sensing
- Relay Type: DPDT
- Relay Ratings: 5A
- # of Relays: 1
- Active Current: 70mA at 6VDC; 80mA at 12VDC
- Size: 2-3/4 x 1-7/8 x 3/4 inches (70 x 48 x 20 mm)
- Weight: 1.6 ounces (45g)
- Approvals: FCC, RoHS, ISO 9001
- Warranty: 1 Year
