  • Seco-Larm Enforcer Push-to-Exit Plate, Illuminated (Dual-Color LED) with Timer

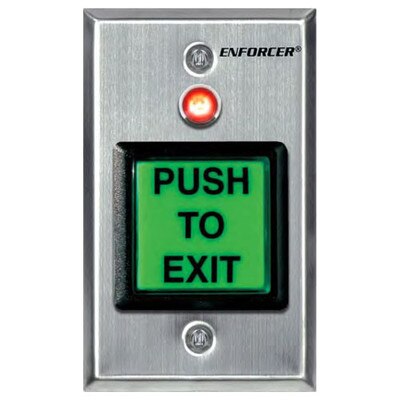

Seco-Larm Enforcer Push-to-Exit Plate, Illuminated (Dual-Color LED) with Timer

SKU: SESD7623GSTQ

Usually ships in 3-5 days.

$55.95

WARNING: Cancer and Reproductive Harm – www.P65Warnings.ca.gov

Details

Customizable, Toggling Dual-Color LED

The Seco-Larm Enforcer Push-to-Exit Plate (Illuminated with Dual-Color LED & Timer) is illuminated with a "PUSH TO EXIT" caption that can be easily changed to Spanish or French with the included interchangeable message plates. The Push-to-Exit Plate features an audible buzzer as well as a toggling dual-color (Red/Green) LED that can be configured for a range of applications. It also has a built-in timer that allows you to adjust how long the buzzer sounds (1 to 180 seconds).

  • Audible buzzer with built-in timer (1 to 180 seconds)
  • Long-life green LED illuminates push button
  • English, Spanish, and French messages included
  • Customizable toggling red/green LED indicator
  • Fits into standard single-gang box

The stainless-steel single-gang Push-to-Exit Plate has colored 12-inch wire leads with quick-connect spade lugs for speedy installation. It installs in standard electrical box and operates on 12/24 VDC power.

Contents

  • Request-to-Exit Plate
  • Resistor for 24VDC
  • (2) Replacement Message Plates (Spanish, French)
  • (2) Colored Leads
  • (2) Wallplate Screws
  • Spare LED Bulb
  • Installation Manual

Building A Secure Future Since 1971

So many places and things to protect; so many ways to protect them; one partner: Seco-Larm. Under the Enforcer trademark, Home Controls offers an impressive line of Seco-Larm security products, ranging from simple switches to some of the most sophisticated alarm devices. Whether it’s physical security, CCTV, access control, RF equipment, or vehicle security, Seco-Larm is the premier choice. Seco-Larm gives its customers an extensive range of dependable, cost-effective security products with a full program of service and support.

Specifications

  • Manufacturer Part #: SD-7623-GSTQ
  • Operating Voltage: 12 or 24VDC
  • Current Rating: 3A@24VDC
  • Faceplate: Brushed stainless
  • Operating Temperature: -40° to 167° F (-40° to 75° C)
  • Built-In Timer: Yes
  • LED Status Indicator: Yes
  • Dimensions: 4-1/2 x 2-3/4 inches (11.4 x 7.6 cm)
  • Weight: 5.1 ounces (144g)
  • Warranty: 1 Year

Downloads

»Seco-Larm Enforcer SD-7623-GSTQ RTE Plate with Dual-Color LED and Timer Product Information (.pdf)
»Seco-Larm Enforcer SD-7200 Series Push-to-Exit Plate with Timer Installation Manual (.pdf)
