Seco-Larm Enforcer Polarized Reflective Beam Sensor, 33 Ft.
WARNING: Cancer and Reproductive Harm – www.P65Warnings.ca.gov
Details
Reliable Detection In Any Weather

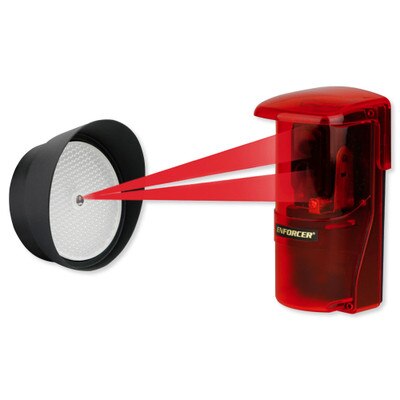

Monitor your garage, gate, driveway or doorway with the Seco-Larm Enforcer Polarized Reflective Beam Sensor (33'). This weatherproof sensor triggers an alarm in a connected security system when its infrared (IR) beam is broken. It also provides reliable detection of shiny objects (chrome bumper or other metallic material on a vehicle) that could be missed by a non-polarized sensor. The 3-1/4-inch round reflector can be installed discreetly on a wall or other flat surface. It provides a large sensing area for wide entryways, as well as easier alignment during installation.
- Detects shiny objects (chrome bumper or other metallic material on a vehicle) that are typically missed by a non-polarized sensor
- Up to 33-foot sensing range (sensor to reflector)
- Suitable for indoor or outdoor use
- Weatherproof with anti-condensation housing
- Mounting hardware included

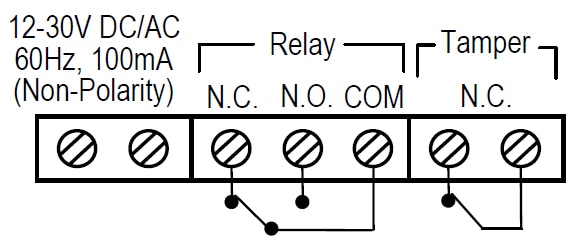

Wiring Information
- Polarity does not matter for the power input
- Connect the N.C. tamper terminal to the tamper circuit of your alarm control panel
Contents
- Sensor
- Reflector
- Mounting Bracket
- Sensor Hood
- Reflector Hood
- (4) Cover Screws
- (2) Mounting Screws
- Reflector Mounting Screw
- Rubber Ring
- Cable Connector
- Manual
- Removable Terminal Block
- 10kΩ Resistor
NOTE: Requires a security system or alarm device to alert you when activated.
Building A Secure Future Since 1971
So many places and things to protect; so many ways to protect them; one partner: Seco-Larm. Under the Enforcer trademark, Home Controls offers an impressive line of Seco-Larm security products, ranging from simple switches to some of the most sophisticated alarm devices. Whether it's physical security, CCTV, access control, RF equipment, or vehicle security, Seco-Larm is the premier choice. Seco-Larm gives its customers an extensive range of dependable, cost-effective security products with a full program of service and support.
Specifications
- Manufacturer Part #: E-931-S33PRGQ
- Sensing Range: 33ft (10m)
- Operating Voltage: 12-30V DC/AC 60Hz, 100mA
- Current Draw:
- Standby: 55mA@12VDC
- Active: 40mA@12VDC
- Response Time: 10ms (max.)
- Light Source: IR LED/Wavelength 740nm
- LED:
- Solid Green: Good beam signal, properly aligned
- Alternating Flash: Poor beam signal
- Solid Red: No beam signal, triggered
- Trigger Output: SPDT Relay output (NO/NC/COM)
- Switching Capacity: 0.5A at 30VAC/VDC
- Tamper Switch: N.C., 500mA at 30VAC/VDC
- IP Rating: IP55
- Operating Temperature: -4°F to 131° F (-20° to 55° C)
- Certifications: CE, RoHS
- Warranty: 1 Year
