Seco-Larm Enforcer Multi-Purpose Programmable Timer

SKU: SESA025Q

Order now and we'll ship same business day (if ordered before 3 pm PST).

$16.81

WARNING: Cancer and Reproductive Harm – www.P65Warnings.ca.gov

Details

Timer Module With 1-Second To 1-Hour Range

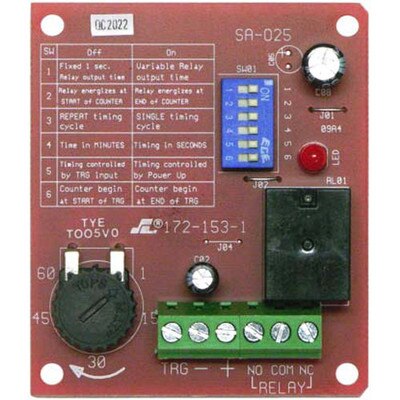

Designed to support various timed security and access control applications, the Seco-Larm Enforcer Multi-Purpose Programmable Timer (SA-025Q) is a single-event timer module that can be triggered by positive voltage (+DC), or closure or opening of dry contact. Using its DIP switches, you can set the timer from 1 second to 60 minutes. The timer even supports pulse (flash) activation if required. It’s perfect for adding a timer to a door lock, siren, and other devices used in timed operations.

  • Timer can be set from 1 sec. to 60 mins. and supports pulse (flash) activation
  • Triggered by positive voltage (+DC), or closure or opening of dry contact
  • Easily programmable via DIP switches (no jumpers to cut)
  • Built-in reset function lets you manually reset the timing cycle
  • LED indicates Form-C relay is energized

Programming the timer is made easy by DIP switches (no jumpers to cut) and auto-sensing of input voltage. The relay can be programmed to activate at either the beginning or the end of the timing cycle. You can also set the relay to activate for one second at the end of the cycle.

Building A Secure Future Since 1971

So many places and things to protect; so many ways to protect them; one partner: Seco-Larm. Under the Enforcer trademark, Home Controls offers an impressive line of Seco-Larm security products, ranging from simple switches to some of the most sophisticated alarm devices. Whether it’s physical security, CCTV, access control, RF equipment, or vehicle security, Seco-Larm is the premier choice. Seco-Larm gives its customers an extensive range of dependable, cost-effective security products with a full program of service and support.

Specifications

  • Manufacturer Part #: SA-025Q
  • Relay Output: Form-C via wires
  • Contact Rating: 8A @ 120VAC/24VDC
  • Operating Voltage: 12VDC/24VDC operation (auto sensing)
  • Current: Less than 1mA (standby), 50mA (relay energized)
  • Dimensions: 2-7/8 x 2-1/2 inches (73 x 63 mm)
  • Approvals: RoHS
  • Warranty: 1 Year

DIP Switch Settings

Switch
Function
On
Off
Switch: #1
Function: Timing starts
On: At end of trigger
Off: At start of trigger
Switch: #2
Function: How does the timing start?
On: When the module is powered up
Off: Connecting (+) to TRG
Switch: #3
Function: Timer setting
On: In seconds
Off: In minutes
Switch: #4
Function: Steady relay output, or pulse/flash?
On: Steady relay output
Off: Pulse/flash output
Switch: #5
Function: When does the relay output start?
On: At end of timing period
Off: At start of timing period
Switch: #6
Function: Relay output mode, delayed or instant?
On: Instant output
Off: Delayed output

Downloads

»Seco-Larm Enforcer SA-025Q Multi-Purpose Programmable Timer Installation Manual (.pdf)
