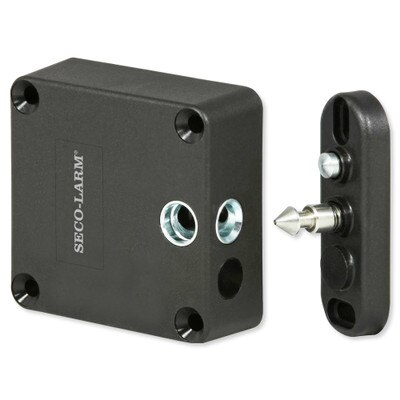

Seco-Larm Enforcer Motorized Cabinet Lock

SKU: SECL210MU3BQ

Order now and we'll ship same business day (if ordered before 3 pm PST).

$40.97

WARNING: Cancer and Reproductive Harm – www.P65Warnings.ca.gov

Details

Added Protection & Access

The Seco-Larm Enforcer Motorized Cabinet Lock provides additional security with built-in lock and door status sensors, and fail-secure operation. The motorized lock can be used with a locker, cabinet, case, drawer, or other open/close object, as well as existing keypads or keycard readers. The lock also sends signals to a connected security panel to inform you of the lock or door status.

  • Electronically secures a locker, cabinet, case, drawer, etc.
  • Lock status sensor allows for monitoring whether the lock is engaged
  • Door status sensor allows for monitoring whether the door is closed completely
  • Compatible with existing keypads or readers
  • Spring feature gently pushes door open

Installation Details

Set the lock in a suitable location, making sure the lock does not block or impede upon the door/drawer from opening and closing. Mount the lock with the included screws and wire to a selected controller. Set the relock time delay before testing the lock by opening/closing the door/drawer.

Contents

  • Lock Body
  • Rosette
  • 5-Pin Connector
  • (5) Crimp Connectors
  • (4) Long Wood Screws
  • (2) Short Wood Screws
  • Manual

Building A Secure Future Since 1971

SECO-LARM started as a developer of lighting devices in 1971. However, the company foresaw the need for reliable yet affordable security products, and over next few years established SECO-LARM as a leading multinational OEM and private label manufacturer of equipment for some of the best-known companies in the security business.

Specifications

  • Manufacturer Part #: CL-210M-U3BQ
  • Operation: Fail-Secure
  • Lock Status: Output: 1A@125VAC
  • Door Status: Output: 1A@125VAC
  • Operating Humidity: 0 to 95% Non condensing
  • Holding Force: 220-lb (100kg)
  • Operating Voltage: 12~28 VAC/VDC
  • Current Draw: Standby: 69mA@12/24 VDC, Active: 165mA@12/24 VDC
  • Housing Material: Polyamide
  • Relock Delay: 2~5 Seconds
  • Dimensions:
    • Lock body: 2-3/8"x2-3/8"x7/8" (60x60x22 mm)
    • Rosette: 13/16"x2-3/8"x1-1/16" (20x60x27 mm)
  • Weight: 3-oz (93g)
  • Warranty: 2 Year
