Seco-Larm Enforcer IR Reflective Photoelectric Beam Sensor, 50 ft.
WARNING: Cancer and Reproductive Harm – www.P65Warnings.ca.gov
Details
Monitor Your Yard Rain or Shine

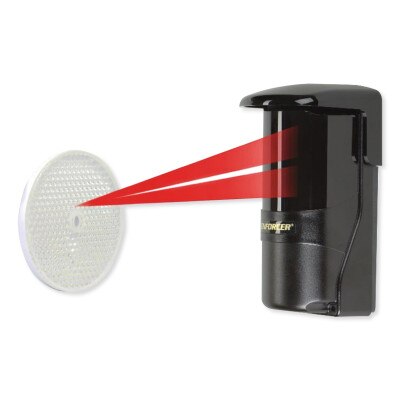

Monitor your garage, gate, driveway or doorway with the Seco-Larm Enforcer Photoelectric Beam Sensor (50'). This weatherproof sensor triggers an alarm in a connected security system when its infrared (IR) beam is broken. The 3-inch round reflector can be installed discretely on a wall or other flat surface. It provides a large sensing area for wide entryways, as well as easier alignment during installation. This sensor also features lensed optics and dual-color LEDs to strengthen the beam and minimize false alarms due to rain, snow, falling leaves, birds, etc.
- Up to 50-foot sensing range (sensor to reflector)
- Suitable for indoor or outdoor use
- Weatherproof with sunlight-filtering case
- Near immediate response time from 10ms
- Mounting hardware included
Contents
- Sensor
- Reflector
- Mounting Bracket
- Sensor Hood
- (4) Cover Screws
- (2) Mounting Screws
- Reflector Mounting Screw
- Rubber Ring
- Cable Connector
- Manual
- Removable Terminal Block
- 10KΩ Resistor
Seco-Larm Security Products
So many places and things to protect; so many ways to protect them; one partner: Seco-Larm. Under the Enforcer trademark, Home Controls offers an impressive line of Seco-Larm security products, ranging from simple switches to some of the most sophisticated alarm devices. Whether for physical security, CCTV, access control, RF equipment, or vehicle security, Seco-Larm is the premier choice. Seco-Larm gives its customers such an extensive range of dependable, cost-effective security products with a full program of service and support.
Specifications
- Manufacturer Part #: E-931-S50RRGQ
- Type: Reflective photoelectric beam sensor
- Sensing Range: Up to 50 feet (15m)
- Operating Voltage: 12~30DC/ADC, 100mA
- Current Draw: Standby:55mA@12VDC Active:40mA@12VDC
- Response Time: 10ms
- Light Source: IR LED
- LEDs:
- Solid Red: No beam signal, triggered
- Alternating Flash: Poor beam signal
- Solid Green: Good beam signal, properly aligned
- Alarm Output: NO/NC relay, 0.5A at 120VAC, min. 1s
- Tamper Switch: NC switch, 500mA@30VAC/VDC
- Alignment Angle: Horizontal: ±90 degrees; Vertical: ±15 degrees
- Enclosure: Weatherproof IP55
- Operating Temperature: -13° to 131°F (-25° to 60°C)

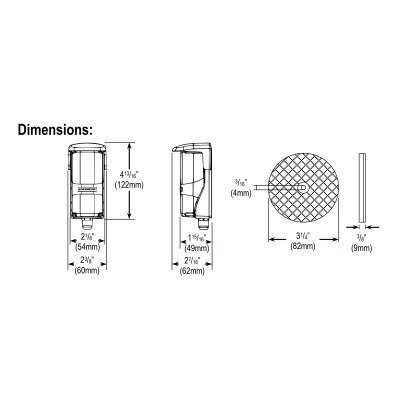

- Dimensions*: 3-3/16 x 7-3/16 x 3-9/16 inches (81 x 182 x 91 mm)
- Weight:
- Sensor: 11.6 ounces (329g) with hood
- Reflector: 5.9 ounces (167g) with hood
- Approvals: ISO 9001, CE, RoHS
- Warranty: 1 Year
