Seco-Larm Enforcer Hands-Free Video Phone Kit
WARNING: Cancer and Reproductive Harm – www.P65Warnings.ca.gov
Details
Answer Your Front Door Remotely From Another Room

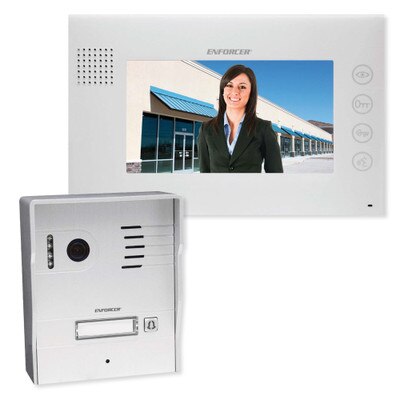

Answer your front door from another room in your house with the Seco-Larm Enforcer Hands-Free Video Phone Kit. Similar to a home intercom system, this hands-free video phone provides remote, two-way communication between you and visitors at your front door using a hands-free monitor and camera. You no longer need to walk over to your front door to answer it; just press a button on the monitor to talk with a visitor, or even unlock your door.
- Simple 2-wire connection allows communication with visitors and the unlocking of a door via the monitor
- Large 7" Color TFT display with Monitor, E-Lock, Relay Unlock, and Talk buttons
- Camera with 1/3-inch CMOS sensor, 2.1mm lens, and 700 TV lines
- Built-in IR LEDs in the camera allow nighttime operation
- Can be expanded by connecting up to 2 additional monitors and 1 camera

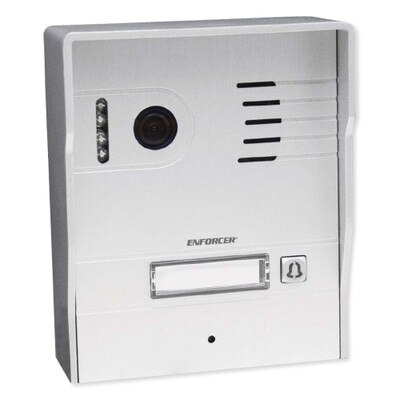

The camera and monitor have a simple 2-wire connection and operate with each other within a 230-foot (70 meters) range. The camera features a 2.1mm lens with a 1/3" CMOS sensor and 700 TV lines of resolution. It has built-in IR LEDs for nighttime operation, a doorbell button, and a microphone and speaker for two-way communication.
The monitor is designed with a 7-inch color TFT display with a built-in microphone and speaker, as well as buttons for Monitor, Talk, E-Lock, and Relay Unlock (operate an electromagnetic lock or door strike, sold separately). You can also easily connect an extra camera (DP-264-CQ, sold separately) and up to two additional monitors (DP-264-M7Q, sold separately) to view multiple entrances around the house.
Contents
- Monitor
- Camera
- Monitor Bracket
- AC Power Adapter
- Camera Bracket
- (6) Screws
- (6) Screw Anchors
- (2) Camera Hex Screws
- (6) Wire Connector (2-Wire) – Power
- Wire Connector (5-Wire) – Camera
- Diode
- MOV
- Hex Wrench
- Manual
NOTE: The distance between the camera and the farthest monitor should not exceed 230ft (70m).
Seco-Larm Security Products
So many places and things to protect; so many ways to protect them; one partner: Seco-Larm. Under the Enforcer trademark, Home Controls offers an impressive line of Seco-Larm security products, ranging from simple switches to some of the most sophisticated alarm devices. Whether for physical security, CCTV, access control, RF equipment, or vehicle security, Seco-Larm is the premier choice. Seco-Larm gives its customers such an extensive range of dependable, cost-effective security products with a full program of service and support.
Specifications
- Manufacturer Part #: DP-264-1C7Q
- UPC: 676544021025
- Credentials: RoHS, CE, FCC
- Warranty: 1 Year
Hands-Free Video Door Monitor
- Display: 7" Color TFT
- Operating Voltage: 18VDC
- Relock Delay: 5 seconds
- E-lock Delay: 1 second
- Weight: 1-lb, 2-oz (560g)
- Current Draw:
- Active: 555mA
- Standby: 20mA
- Dimensions: 9-1/2 x 6-5/16 x 1 inches(241 x 161 x 25 mm)
Hands-Free Door Camera
- Type: Color camera
- CMOS: 1/3-inch CMOS sensor
- Resolution: 700 TV lines
- Lens: 2.1mm
- Relay output: 3A@30VDC max. dry contact
- Operating Temperature: -13°~149°F (-25°~65°C)
- Weight: 1-lb, 6-oz (750g)
- Current Draw: 150mA
- Dimensions (without sunshield): 4-7/16 x 5-3/8 x 2-1/16 inches (112 x 136 x 52mm)
