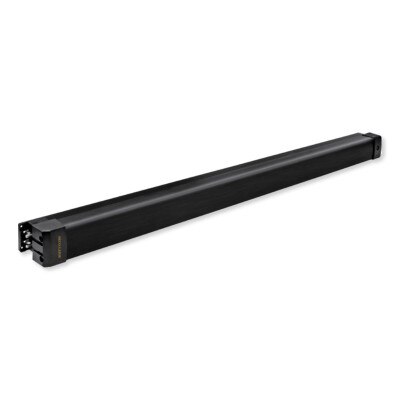

Seco-Larm Enforcer Electromechanical Push Bar

Easy Egress And Keeps Property Safe From Unauthorized Entry

Add an easy way to exit your property while maintaining a secure perimeter with the Seco-Larm Enforcer Electromechanical Push Bar, Black. This push bar features a double-locking spindle, making it stronger and more secure than other push bars on the market. It's constructed out of durable aluminum alloy for long-lasting use and has a reversible, non-handed design. Plus, it provides fail-secure operation but allows easy egress from the inside by just pressing the bar. It also has a dogging latch on the push bar to hold it open when it's necessary to keep the door from closing and it includes all the needed hardware for installation.

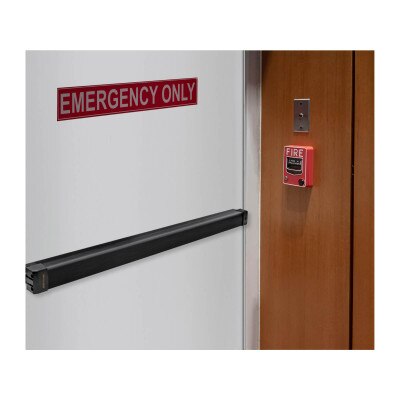

• Allows exit from inside while securely locked from the outside
• Works on non-handed wood or metal doors (36", minimum 32-7/8")

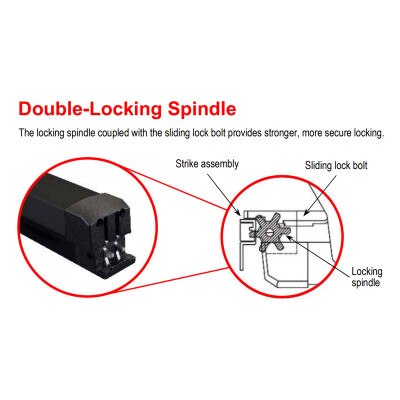

• Reversible, non-handed design with double-locking spindle
• Includes mortise lock cylinder and keys for releasing the lock from the outside
• Dogging latch on the push bar keeps it open
• Constructed out of durable aluminum alloy

Contents

• Push Bar
• (2) Flat-Head Screws
• Dogging Keyhole Cap
• Dogging Key
• Mounting Template
• (4) Round-Head Screws
• (4) Mounting Screw Caps
• Strike Assembly Parts
• Lock Assembly Parts
• Manual

Building A Secure Future Since 1971

So many places and things to protect; so many ways to protect them; one partner: Seco-Larm. Home Controls offers an impressive line of Seco-Larm security products, ranging from simple switches to some of the most sophisticated alarm devices. Whether it's physical security, CCTV, access control, RF equipment, or vehicle security, Seco-Larm is the premier choice. Seco-Larm gives its customers an extensive range of dependable, cost-effective security products with a full program of service and support.

• Manufacturer Part #: SD-961B-36GQ
• Entrance: External keyed lock
• Contact Load: 5A@125VAC
• Output: Form "C" (NO/NC/COM) door monitor
• For Doors: 36" (91.5cm), minimum 32-7/8" (83.5cm), wood or metal, non-handed
• Latch: Double locking spindle
• Color: Black
• Material: Anodized aluminum

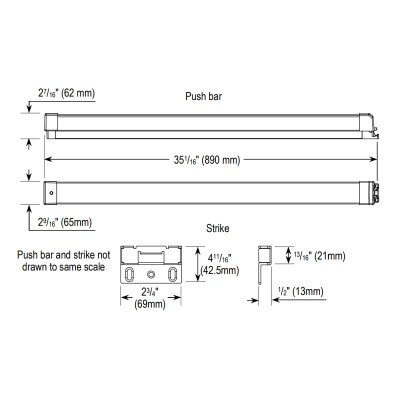

• Dimensions: 2-7/16 x 2-9/16 x 35-1/16 inches (61.5x65x890 mm)
• Weight: 5-lb 10-oz (2.56kg)
• Certifications: FCC, CE, RoHS
• Warranty: 1 Year

»Seco-Larm SD-961B-36GQ Enforcer Electromechanical Push Bars Spec Sheet (.pdf)
»Seco-Larm SD-961B-36GQ Enforcer Electromechanical Push Bars Installation Manual (.pdf)
