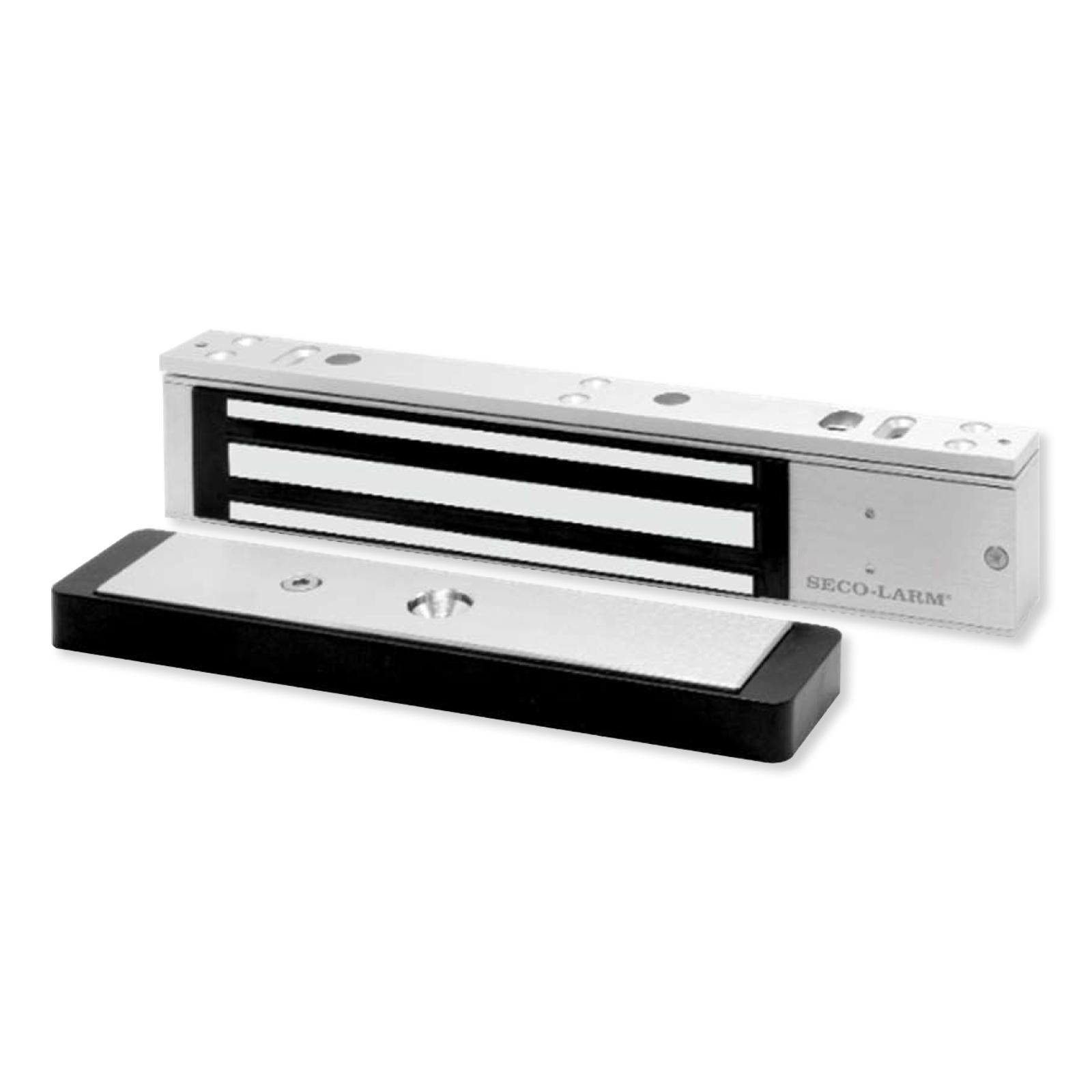

  • Seco-Larm Electromagnetic Lock with LED and Bond & Door Position Sensor, 600 Lbs.

    SEE941SA600DPSQ

    Notify me when this product is available:

    Secure Your Door with 600 Pounds Of Resistance

    Using 600 pounds (272kg) of electromagnetic holding force, the Seco-Larm Enforcer Electromagnetic Lock (600 Lb.) with LED, Bond, and Door Position Sensor is the perfect solution for securing a door in a standard indoor application. This 600 Lb. magnetic door lock is housed in anodized aluminum (US28) and comes with various features to monitor the status of the door including a built-in bond sensor with 3A dry relay output, built-in dual color status LEDs, and a door position sensor for showing the open/closed status (1/2"). This electromagnetic lock also features MOV surge protection to ensure long-term reliability and includes a detachable faceplate, an adjustable mounting bracket, and all the mounting hardware needed to make installation quick and easy.

    • Secures a door with 600 pounds (272kg) of holding force
    • Built-in bond sensor with 3A dry relay output
    • Built-in
    • Manufacturer Part #: E-941SA-600DPSQ
    • UPC: 676544021506
    • Endurance: Level IV
    • Destructive Attack: Level 1
    • Line Security: Level 1
    • Standby Power: Level 1
    • Holding Force: 600-lb
    • UL Listed: UL 294, ULC S104, UL 10B, UL 10C
    • Operating Voltage: 12/24 VDC
    • Current Draw: 12VDC: 500mA 24VDC: 250mA
    • Housing Material: Reed switch, 0.2A@12VDC
    • Operating Temperature: 32°~120°F (0°~49°C)
    • Electromagnet Dimensions: 9-13/16 x 1-11/16 x 1 inches (250 x 43 x 25 mm)
    • Armature Dimensions: 7-1/4 x 1-1/2 x 1/2 inches (185 x 38 x 12 mm)
    • Bond Sensor: SPDT relay, 3A@12VDC
    • Certifications: UL 294, CE, RoHS
