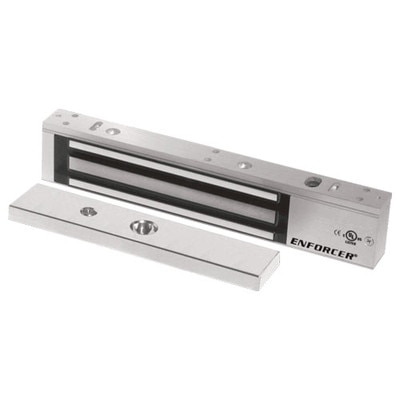

Seco-Larm Enforcer Maglock, 600 Lbs.

SKU: SEE941SA600

Order now and we'll ship same business day (if ordered before 3 pm PST).

$78.47

WARNING: Cancer and Reproductive Harm – www.P65Warnings.ca.gov

Details

Built-In Surge Protection

With 600 pounds (272kg) of electromagnetic holding force, the Seco-Larm Enforcer Electromagnetic Lock 600 Lb. magnetic door lock is ideal for securing doors in standard applications. This 600 Lb. magnetic door lock is housed in anodized aluminum and features MOV surge protection to ensure long-term reliability. The Seco-Larm Enforcer Maglock also comes with a detachable faceplate, an adjustable mounting bracket, and all mounting hardware, making installation quick and easy.

  • Secures a door with 600 pounds (272kg) of holding force
  • Reliable security with MOV surge protection
  • Powered by 12 or 24 VDC
  • All mounting hardware included
  • UL Listed for Access Control System Units and Burglary Resistant Electric Lock Mechanisms

Seco-Larm’s E-941SA series of electromagnetic locks provide an ideal solution for securing a door, cabinet or drawer against unauthorized entry. When the 600 Lb. magnetic door lock is powered, a strong magnetic field is created to attract the lock to a steel armature plate that is mounted to the door. The secured door can only be opened once the electromagnet is deactivated.

Seco-Larm Security Products

So many places and things to protect; so many ways to protect them; one partner: Seco-Larm. Under the Enforcer trademark, Home Controls offers an impressive line of Seco-Larm security products, ranging from simple switches to some of the most sophisticated alarm devices. Whether for physical security, CCTV, access control, RF equipment, or vehicle security, Seco-Larm is the premier choice. Seco-Larm gives its customers such an extensive range of dependable, cost-effective security products with a full program of service and support.

Specifications

  • Manufacturer Part #: E-941SA-600
  • Holding force: 600 pounds (272kg)
  • Operating voltage: 12 or 24 VDC, ±10 percent
  • Current draw: 500mA at 12VDC, 250mA at 24VDC
  • Temperature: 14 to 131° F (-10 to 55° C)
  • Magnet size: 9-7/8 x 1-1/16 x 1-5/8 inches (250 x 27 x 42 mm)
  • Armature size: 7-1/4 x 1/2 x 1-1/2 inches (185 x 12 x 38 mm)
  • Certification: UL, UL 10C, UL 294, UL 1034, UL 864 (Fire Alarm Systems), CE
  • RoHS compliant: Yes
  • Weight: 4 pounds, 6 ounces (2kg)

Downloads

»Seco-Larm Enforcer Electromagnetic Lock Template (.pdf)
»Seco-Larm Enforcer Electromagnetic Lock Specifications (.pdf)
