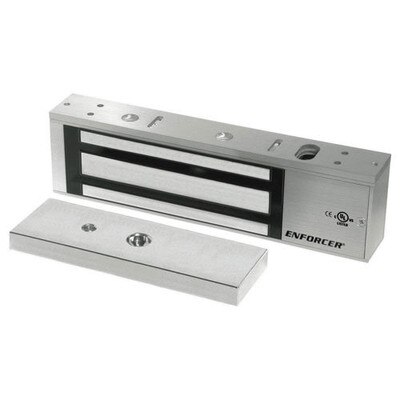

Seco-Larm Enforcer Maglock, 1,200 Lbs.

SKU: SEE941SA1200

Usually ships in 3-5 days.

NOTE: This is a heavy/dimensional part; it is not eligible for free shipping.

$120.95

WARNING: Cancer and Reproductive Harm – www.P65Warnings.ca.gov

Details

Ultra-Strong Holding Force For Heavy Duty Applications

With 1,200 pounds (545kg) of electromagnetic holding force, the Seco-Larm Enforcer Electromagnetic Lock, 1,200 Lbs. is ideal for securing high-security doors in heavy duty applications. This premium mag-lock is housed in anodized aluminum and features MOV surge protection to ensure long-term reliability. It also comes with a detachable faceplate, an adjustable mounting bracket, and all mounting hardware, making installation quick and easy.

  • Secures a door with 1,200 pounds (545kg) of holding force
  • Reliable security with MOV surge protection
  • Powered by 12 or 24 VDC
  • All mounting hardware included

Seco-Larm's E-941SA series of electromagnetic locks provide an ideal solution for securing a door, cabinet or drawer against unauthorized entry. When the electromagnetic lock is powered, a strong magnetic field is created to attract the lock to a steel armature plate that is mounted to the door. The secured door can only be opened once the electromagnet is deactivated.

Contents

  • Electromagnetic Lock
  • Bracket
  • Armature plate
  • Mounting hardware
  • Template
  • Instructions

Seco-Larm Security Products

So many places and things to protect; so many ways to protect them; one partner: Seco-Larm. Under the Enforcer trademark, Home Controls offers an impressive line of Seco-Larm security products, ranging from simple switches to some of the most sophisticated alarm devices. Whether for physical security, CCTV, access control, RF equipment, or vehicle security, Seco-Larm is the premier choice. Seco-Larm gives its customers such an extensive range of dependable, cost-effective security products with a full program of service and support.

Specifications

Parts List

  • Mounting plate
  • Electromagnet
  • Armature plate
  • Armature screw
  • (2) Steel washers
  • Rubber washer
  • Door spacer
  • Sexnut bolt
  • (2) Guide pins
  • (4) Long self-tapping screws
  • (2) Short self-tapping screws
  • (2) Hex-head mounting screws
  • (2) Tamper caps
  • (2) Allen wrenches

Technical Details

  • Manufacturer Part #: E-941SA-1200
  • Magnet Size: 10-1/2 x 1-5/8 x 2-5/8 inches (268 x 42 x 67mm)
  • Armature Size: 7-1/4 x 5/8 x 2-3/8 inches (185 x 16 x 61mm)
  • Holding Force: 1,200 pounds (545kg)
  • Current Drain: 500mA/12VDC, 250mA/24VAC
  • Voltage Tolerance: ± 10 percent
  • Temperature: -13 to 131 degrees F (-25 to 55 degrees C)
  • Weight: 10.46 pounds (5kg)
  • Certifications: UL, ULC, UL 864 (Fire Alarm Systems), UL 294 (Access Control System Units), UL 1034 (Burglary-Resistant Electric Lock Mechanism), USA only, CE
  • Warranty: 1 Year

Downloads

»Seco-Larm Enforcer Electromagnetic Lock Specifications (.pdf)
»Seco-Larm Enforcer Electromagnetic Lock Manual (.pdf)
