Seco-Larm Enforcer Double Door Electromagnetic Lock, 1200 lb.

SKU: SEE941DA1K2Q

Order now and we'll ship same business day (if ordered before 3 pm PST).

NOTE: This is a heavy/dimensional part; it is not eligible for free shipping.

$213.07

WARNING: Cancer and Reproductive Harm – www.P65Warnings.ca.gov

Details

Secure Your Double Doors with 1200 Pounds Of Resistance

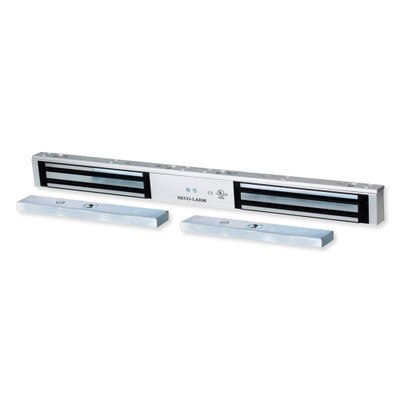

The Seco-Larm Enforcer Double-Door Electromagnetic Lock, 1200 lb, holds double doors closed with 1200 lbs of force for premium security. When powered, the locks emit an extremely strong magnetic field to secure the doors in place. Once the electromagnets are deactivated, the secured doors will open and close normally. The anodized aluminum housing and the detachable faceplate make this durable unit the choice for double door protection.

  • Electromagnetic lock for indoor double doors
  • Maintenance-free, factory-sealed design makes use and installation simple
  • MOV surge protection protects the lock from unexpected electrical surges
  • Choice between 12 or 24VDC power supplies
  • "L" bracket, "Z" brackets, and detachable faceplate for convenient installation

Contents

  • Mounting plate
  • Electromagnet
  • (2) Armature plate
  • (2) Armature screw
  • (4) Steel washers
  • (2) Rubber washer
  • (2) Door spacer
  • (2) Sexnut bolt
  • (4) Guide pins
  • (8) Long self-tapping screws
  • (4) Short self-tapping screws
  • (4) Hex-head mounting screws
  • (4) Tamper caps
  • Allen wrench

Seco-Larm Security Products

So many places and things to protect; so many ways to protect them; one partner: Seco-Larm. Under the Enforcer trademark, Home Controls offers an impressive line of Seco-Larm security products, ranging from simple switches to some of the most sophisticated alarm devices. Whether for physical security, CCTV, access control, RF equipment, or vehicle security, Seco-Larm is the premier choice. Seco-Larm gives its customers such an extensive range of dependable, cost-effective security products with a full program of service and support.

Specifications

  • Manufacturer Part #: E-941DA-1K2Q
  • UPC: 676544009801
  • Holding Force: 1,200-lb (545kg) per door
  • Operating Voltage: 12 or 24 VDC±10%
  • Current Draw:
    • 500mA@12VDC per door (1A total)
    • 250mA@24VDC per door (500mA total)
  • Operating Temperature: 14°~131° F (-10°~55° C)
  • Certification: UL, ULC, CE
  • Electromagnet Dimensions: 21" x 1-5/8" x 2-5/8" (536 x 42 x 67 mm)
  • RoHS Compliance: Yes
  • Armature Dimensions: 7-1/4" x 5/8" x 2-3/8" (185 x 16 x 61 mm)
  • Case Shipping Weight: 43-lb (19.5kg)
  • Weight: 21-lb (10kg)
  • Warranty: Limited lifetime
