Seco-Larm Enforcer CBA Wireless Outlet Controller Kit, 5 Outlets
WARNING: Cancer and Reproductive Harm – www.P65Warnings.ca.gov
Details
Complete Kit Adds Remote Control to 5 Plug-In Devices
Easily add On/Off remote control to five (5) plug-in lamps, appliances, etc. with the Seco-Larm Enforcer CBA Wireless Outlet Controller Kit (5 Outlets). This complete plug-n-play kit is easy to set up, perfect for adding wireless control to a variety of plug-in devices, such as a floor lamp, a plug-in fan, holiday lights, and more. The kit includes 5 plug-in control outlets for 5 plug-in devices, plus 2 remotes (both 5-channel) to wirelessly turn On/Off each individual outlet. Using the battery-powered remotes, you can turn On/Off your controlled devices from up to 100 feet (30m) away.*
- Kit includes 5 plug-in control outlets and 2 remotes
- Wireless remote control range up to 100 feet*
- Each outlet supports one device up to 1200W (10A)
- Energy-saving outlets draw zero power when off
- Expandable with additional outlets and remotes (sold separately)
*Line-of-sight range. Actual range may vary depending on the installation and operating environment.
Installation Details

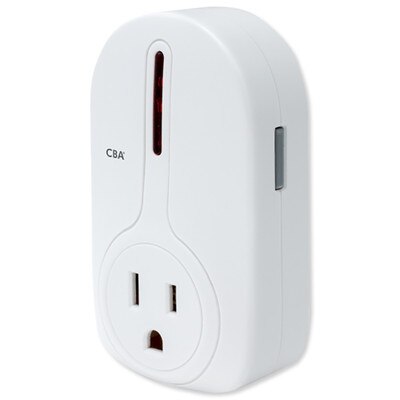

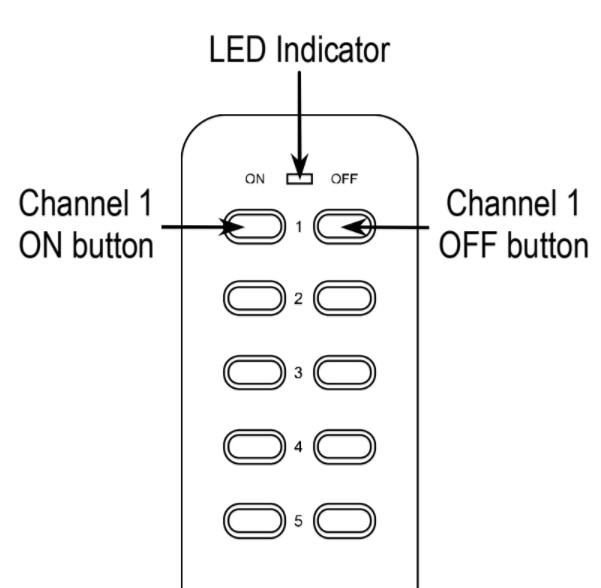

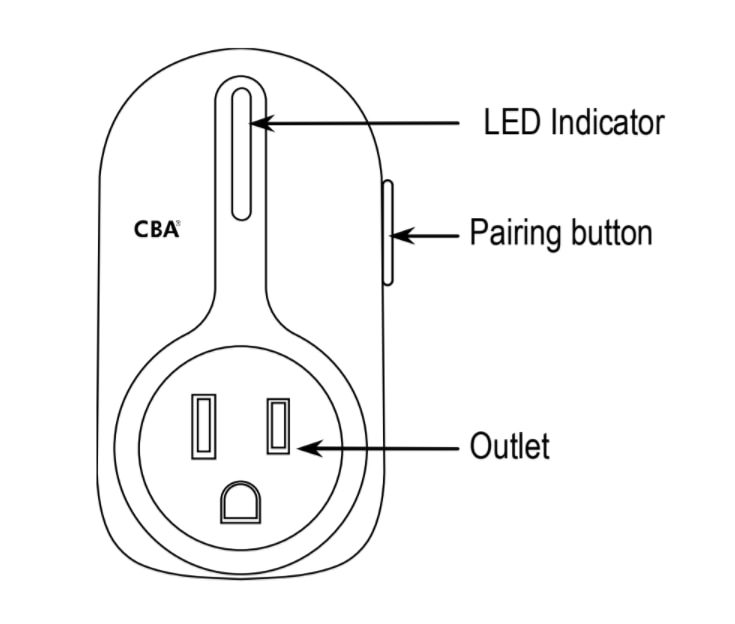

Each Wireless Outlet (5 included) plugs into a standard power outlet, and your plug-in device to be controlled plugs into the Wireless Outlet. Each Wireless Outlet is numbered, and a corresponding number is marked on the remote next to that Outlet's ON and OFF buttons to which it is paired.

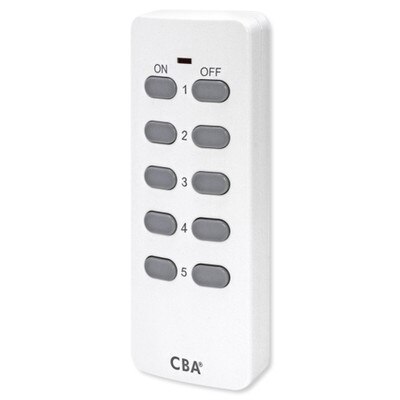

To switch the outlet's device ON or OFF, simply press the corresponding button on the remote. The plugged-in device may also be turned ON/OFF locally at the Outlet by pressing the Outlet's pairing button momentarily.
Advanced Remote Control Options
By adjusting the way your Wireless Outlets are paired with the remote, you can optionally control multiple outlets with one remote button, or control one outlet with up to 3 remotes (additional remotes sold separately). Pairing an Outlet with the remote and/or changing which remote buttons the Outlet corresponds to is simple and takes only a few minutes, as explained in the included instruction manual.
Combine Kits to Expand Remote Control
If you wish to add remote control to more than 5 plug-in devices and/or you want to use more than two remotes with your Wireless Outlets, you can easily expand this system. Simply purchase an additional kit and then pair your Outlets and remotes together according to your control preferences. (Please note, each button on a remote can be paired with an unlimited number of Wireless Outlets, but each Wireless Outlet can only have 3 remote pairings.)
Kits that may be combined together include this 5-Outlet/2-Remote Kit and the 3-Outlet/1-Remote Kit, part number LS-313A-14Q. For example, you could combine two 5-Outlet Kits, or you could mix and match by combining one 5-Outlet Kit with one 3-Outlet Kit.

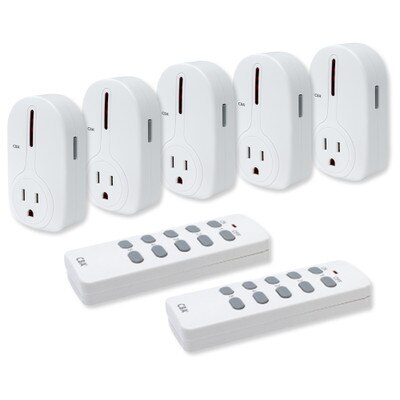

Contents
- (5) Wireless Outlets
- (2) Remotes, 5-Channel
- (2) 12VDC (23A) Batteries for Remotes
- (1) Manual
Notes
- Wireless Outlets are for indoor use only.
- Do not exceed the maximum load of 1200W (10A) per Wireless Outlet.
- Each button on a remote can be paired with an unlimited number of Wireless Outlets, but each Wireless Outlet can only have 3 remote pairings.
Building A Secure Future Since 1971
So many places and things to protect; so many ways to protect them; one partner: Seco-Larm. Under the Enforcer trademark, Home Controls offers an impressive line of Seco-Larm security products, ranging from simple switches to some of the most sophisticated alarm devices. Whether it's physical security, CCTV, access control, RF equipment, or vehicle security, Seco-Larm is the premier choice. Seco-Larm gives its customers an extensive range of dependable, cost-effective security products with a full program of service and support.
Specifications
- Manufacturer Part #: LS-525A-14Q
- Wireless Outlets Included: 5
- Remotes Included: 2
- # of Remote Channels: 5
- Working Voltage: 120V~/60Hz
- Remote Battery: 12VDC (23A) (included)
- Max. Load for each Wireless Outlet: 1200W (10A)
- Transmission Frequency: 433.92 MHz
- Remote Range: 100 feet (30m) line-of-sight
- Operating Temperature: 59° to 95°F (15° to 35°C)
- Dimensions:
- Wireless Outlet: 2-1/8 x 3-11/16 x 1-7/16 inches (54 x 94 x 36 mm)
- Remote: 1-1/2 x 4-1/8 x 11/16 inches (38 x 105 x 18 mm)
- Approvals: FCC, CE, ETL, RoHS
- Warranty: 1 Year
