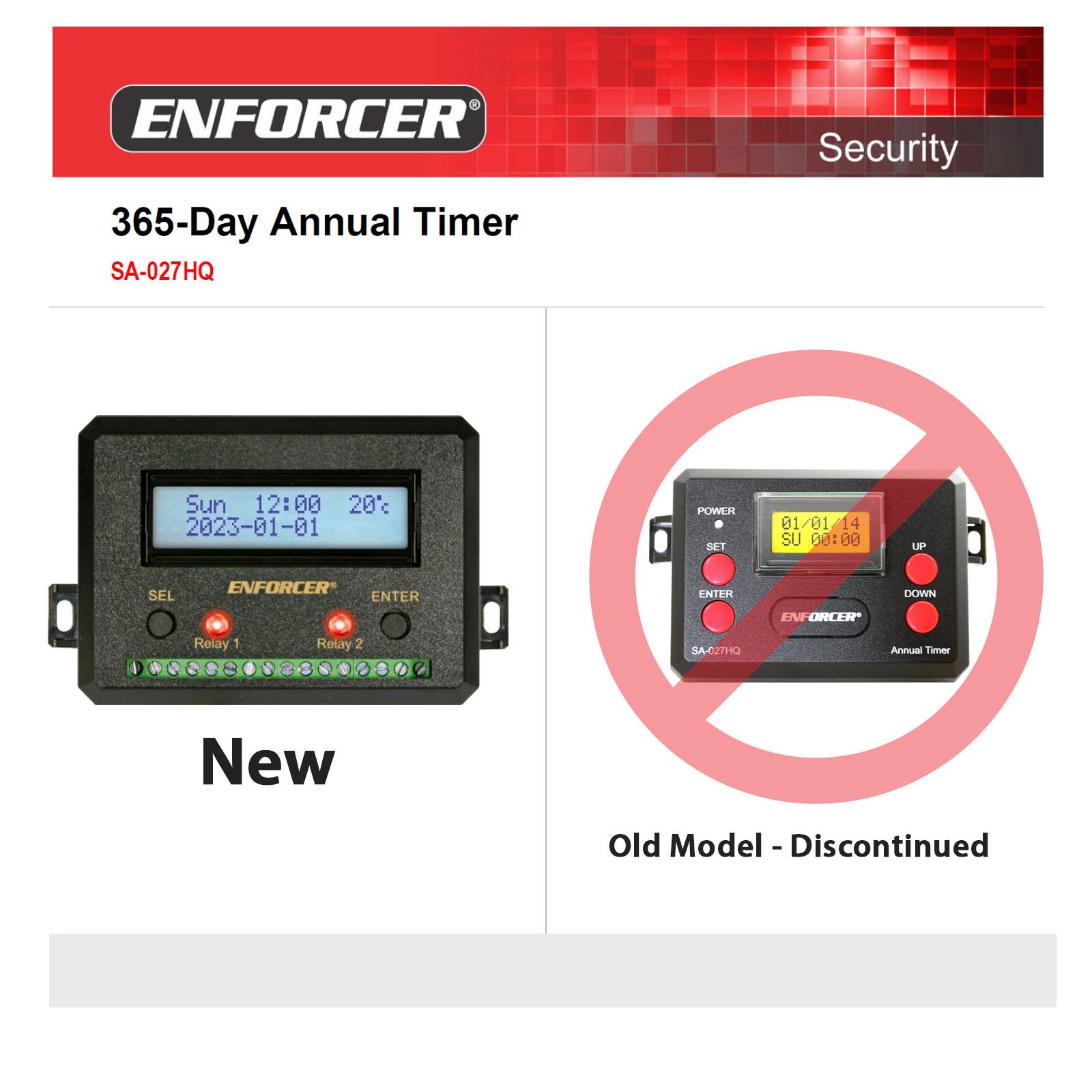

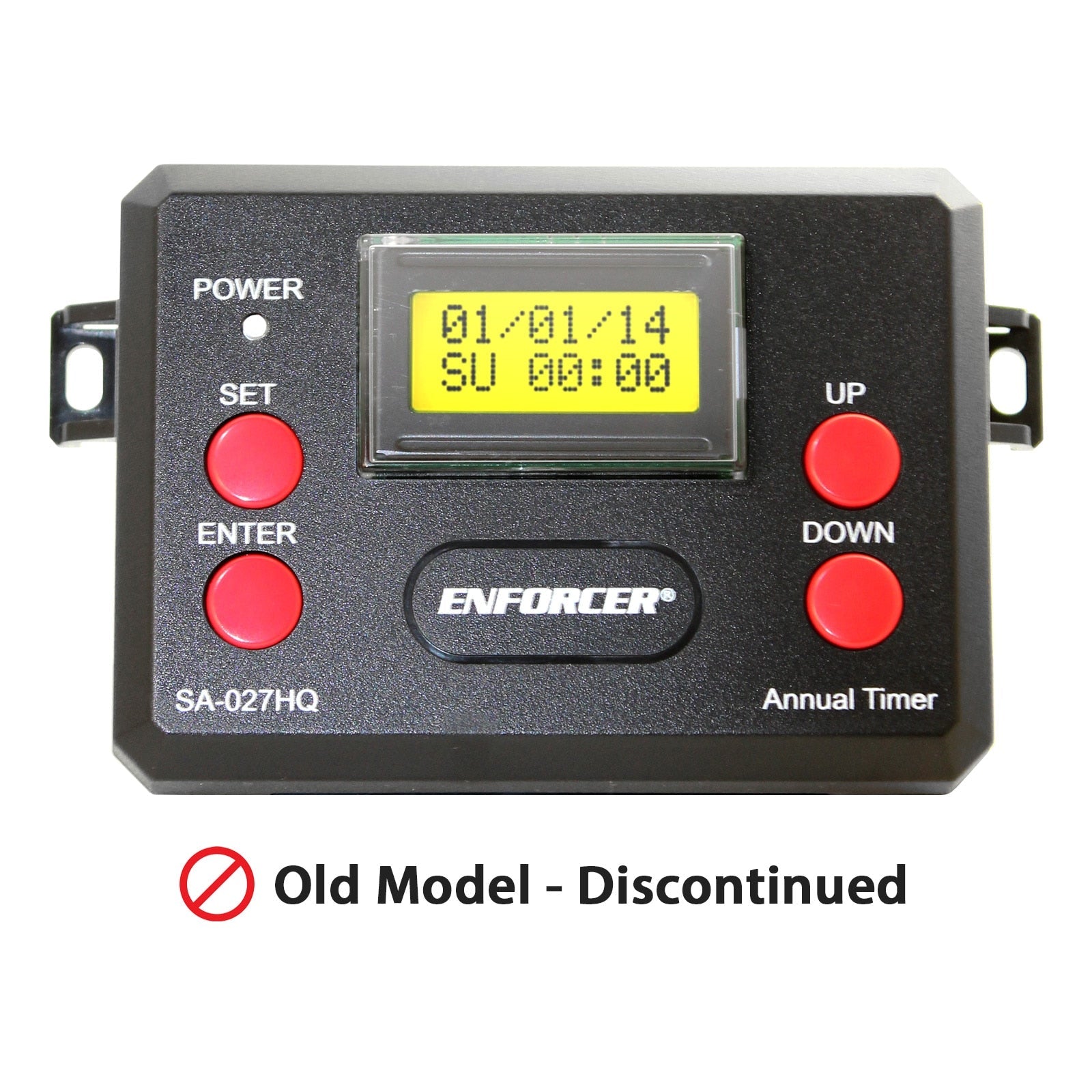

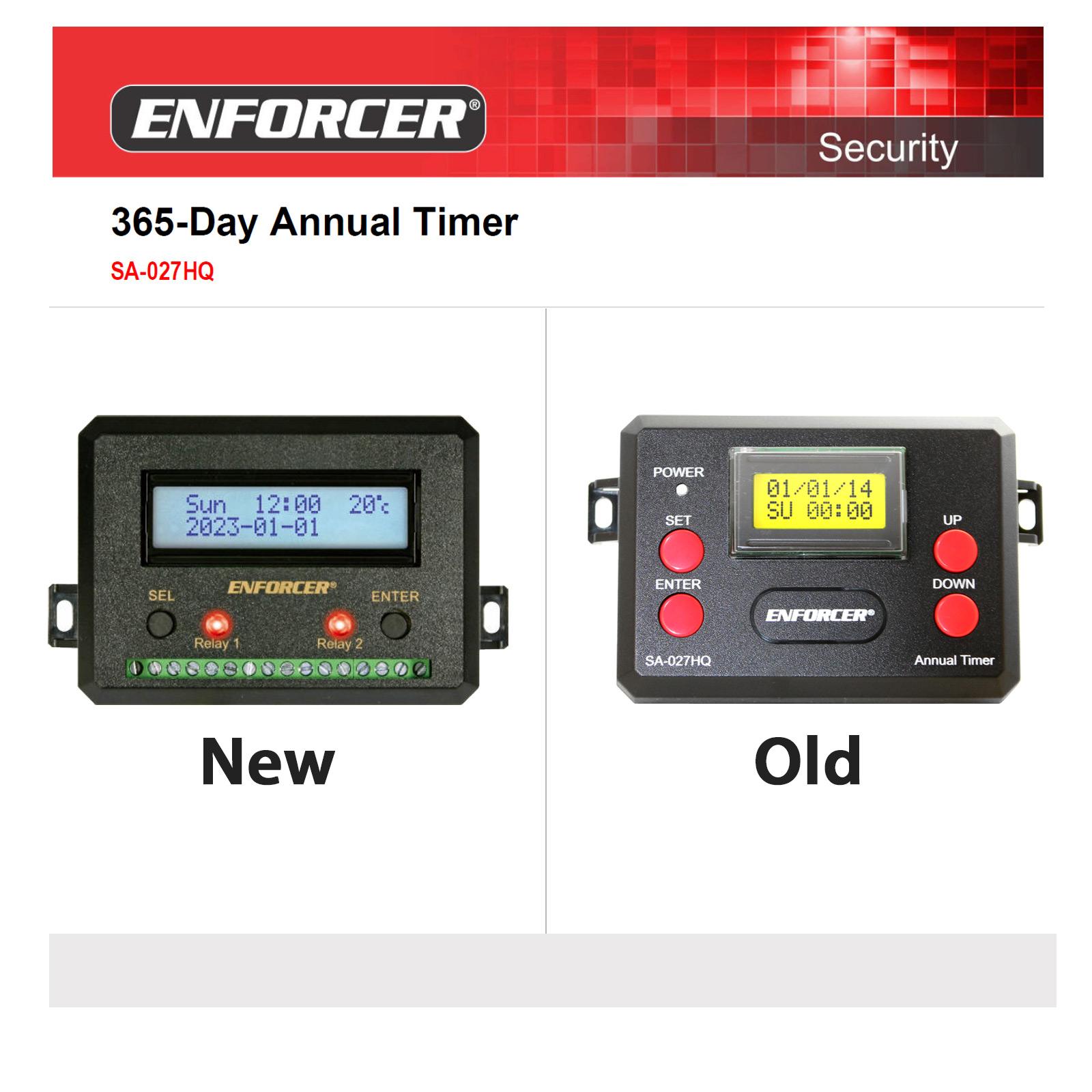

Seco-Larm Enforcer Annual Timer Module

Program Hundreds of Schedules for 2 Relays

Create comprehensive automatic schedules for almost any N.O. or N.C. relay device with the Seco-Larm Enforcer Annual Timer Module. The timer has two Form C relays, allowing you to program two devices independently to operate on weekly, daily, or hourly schedules throughout the year. It's perfect for a variety of applications, including security, lighting control, climate control, and access control.

• Schedules weekly, daily, or hourly events for two relays
• Stores up to 99 events for each relay (198 total)
• Relays operate independently or in tandem
• Backlit LCD screen makes programming easy
• Full backup options ensure reliable operation

Advanced Scheduling Options for Precise Control

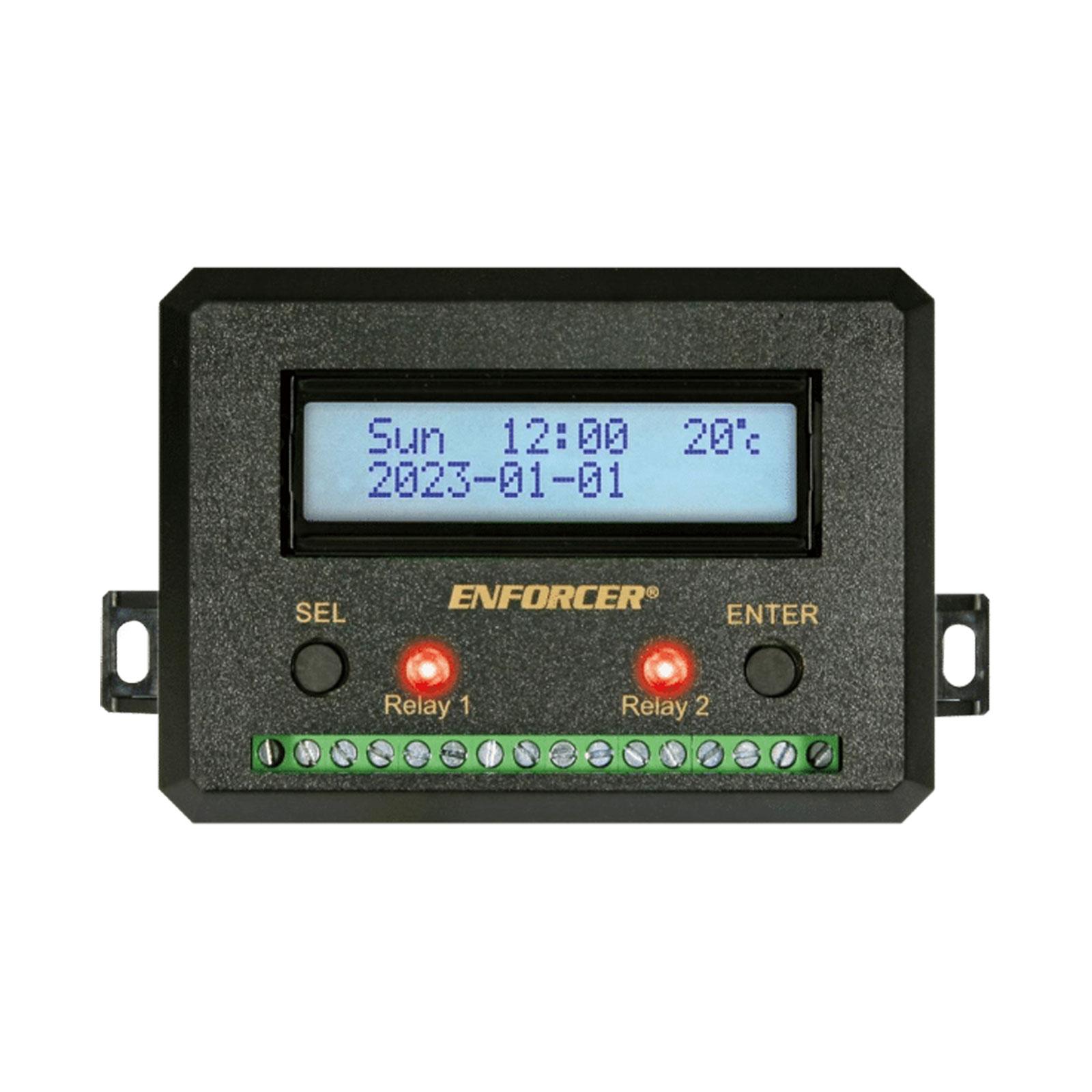

The Annual Timer Module features an alphanumeric backlit LCD screen and a few simple buttons to make programming easy. Each relay can we programmed with up to 99 scheduled events (198 total), and five different event types are available to choose from: Disable, ON, OFF, Shunt, or Momentary (1~99 seconds). Each event can be scheduled to repeat hourly, daily, or weekly. This block programming lets you easily repeat events on consecutive days throughout an entire year. You can also program up to 20 holidays to disable the timer on specific days, either a single day or the same day every year.

While the two relays can operate independently, you also have the option of programming them to operate simultaneously by setting the timer to "tandem mode". The timer also lets you override the schedule without hassle anytime.

Timer Features:

• Two N.O. or N.C. Form C relays (10A @ 24VDC)
• Allows manual operation of relays without event programming
• First-person-in function interrupts the timer's normal operation
• Supports one egress input per relay (two total)
• Can be set for Standard or Daylight Saving Time
• Compensates for leap years

Reliable Backups for Programming & Power

Designed to provide reliable scheduling all year round, the timer is powered by a 12/24 VDC/VAC power supply (sold separately) and supports an external backup battery (sold separately). It even has a built-in clock backup battery, plus a built-in battery charger to ensure that your external backup battery is always ready to kick in at a moment's notice in case of a power outage.

Additionally, the timer has EEPROM memory to retain your programming data during a power failure. Data is also password protected, so unauthorized users will not be able to change your schedules without permission.

Contents

• Annual Timer Module
• (2) Screws
• (2) Backup Battery Wires
• User Manual

NOTE: Power supply and backup battery not included.

Building A Secure Future Since 1971

So many places and things to protect; so many ways to protect them; one partner: Seco-Larm. Under the Enforcer trademark, Home Controls offers an impressive line of Seco-Larm security products, ranging from simple switches to some of the most sophisticated alarm devices. Whether it's physical security, CCTV, access control, RF equipment, or vehicle security, Seco-Larm is the premier choice. Seco-Larm gives its customers an extensive range of dependable, cost-effective security products with a full program of service and support.

• Manufacturer Part #: SA-027HQ
• UPC: 676544015581
• Relay: Dry Form C x2 10A@24VDC
• Connection: 16 pins
• Operating Voltage: 10-48 VDC, 12~24VAC
• Egress Input: Yes
• First Man Input: Yes
• Backup Battery Type: 12VDC Battery (Not included)
• LCD Display: 16x2 Standard module
• Program Switch: 2
• LED Indicator: 2x Relay Red LED Indicator
• Backlight: Yes, White LED
• Tandem: Yes, disable/enable (by program)
• Timer Backup Battery: Super capacitor
• Memory Backup During Power Failure: Yes
• Clock Format: 24 Hour
• Security Code: 4-digits, numeric, ON/OFF
• Setting Time: Visual to the second
• Setting Events:
• Any 1~7 days block schedule or holiday event or day of annually event.
• 99 for each relay total 198 events.
• Relay Disable/ON/OFF/Time 1~99 seconds
• Setting Holidays:
• 20 holidays
• 1~31 days
• Start time 00:00 & End time 23:59
• Setting DST: Yes, can be set to USA / EU-E / EU-C / EU-W / ON / OFF
• System Test: Program relay ON or OFF
• LCD Display Contrast: 0~10 contrast level adjustment or by SEL & ENTER switch to adjust
• Clear Memory: Yes
• Exit Program: 30 seconds auto exit or enter exit symbol
• Status Check:
• Easy troubleshooting Relay 1 ON / OFF,
• Relay 2 ON / OFF Power input voltage,
• Backup battery voltage and charge symbol and device temperature
• Smart Charge Function:
• Backup battery low than 9.5V will not charge Backup battery charge more than 12.8V or more than one week then will stop charge.
• Will automatically charge when adapter backup battery to SA-027HQ or more than two weeks without charge
• Dimensions: 4-3/16 x 3-1/16 x 1-1/4 inches (107 x 78 x 31 mm)
• Weight: 5.8 ounces (164g)
• Approvals: RoHS
• Warranty: 1 Year
