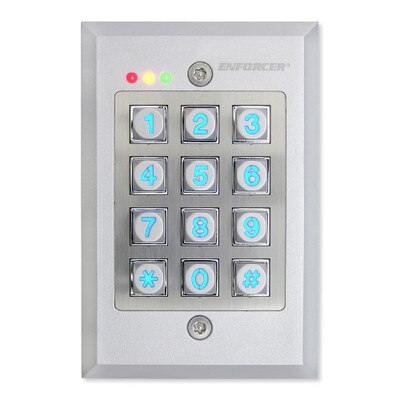

Seco-Larm Enforcer Access Control Keypad, Outdoor, Flush Mount
WARNING: Cancer and Reproductive Harm – www.P65Warnings.ca.gov
Details
Outdoor Keypad With Easy Access Control
Gain easy access to your home or office from the outdoors with the Seco-Larm Enforcer Access Control Flush Mount Keypad. This outdoor keypad can be programmed with up to 1,100 possible user codes and up to 50 possible temporary visitor codes. It can be mounted flush against the wall or to a standard single-gang back box. Programming is easy because it can be done directly from the keypad – there's no need for an external programmer. It features a keypad that illuminates when a button is pressed and the backlight can be set to FULL or AUTO in standby mode. The keypad has a single Form C relay output (1A at 30VDC) and a transistor ground output (100mA at 24VDC) – each of which can be programmed to activate for up to 99,999 seconds (nearly 28 hours). Both permanent user codes and guest codes can be 4-8 digits long. Guest codes can be programmed for one-time or limited-time use, customizable from 1 to 99 hours. Plus, the keypad's programmable delayed egress input lets users to exit without entering a code.
- 12-button outdoor keypad that illuminates when pressed
- Supports up to 1,000 possible user codes (000~999) for Output 1 and 100 user codes (001~100) for Output 2
- Supports up to 50 (01~50) temporary guest codes (1~99 hours), which can be programed for one time or limited time use
- Duress code is signaled if an authorized user is forced to open the door under duress
- Up to 50 (01~50) duress codes for Output 1 and up to 10 (01~10) for Output 2
- Keypad can be programmed to beep if door left propped open or forced open
- Interlocking input for connecting to a second keypad
- EEPROM memory will store programmed information if there's power loss
- IP66 weatherproof rating (protects against dust and water)
- Auto-adjusting operation – 12~24 VDC/VAC
Installation and Power Details
The keypad supports 12~24V AC/DC universal power, eliminating the need for special programming or jumpers. It wires into a power supply (sold separately) and mounts to the wall with the included screws and back box. In case of a power outage, all your data is stored and reliably retained in the keypad's non-volatile EEPROM memory.
Contents
- Keypad
- (2) Security Screws
- Security Wrench
- Diode
- Manual
Building A Secure Future Since 1971
So many places and things to protect; so many ways to protect them; one partner: Seco-Larm. Under the Enforcer trademark, Home Controls offers an impressive line of Seco-Larm security products, ranging from simple switches to some of the most sophisticated alarm devices. Whether it's physical security, CCTV, access control, RF equipment, or vehicle security, Seco-Larm is the premier choice. Seco-Larm gives its customers an extensive range of dependable, cost-effective security products with a full program of service and support.
Specifications
- Manufacturer Part #: SK-1123-FDQ
- Operating Voltage: 12~24 VDC/VAC
- Current Draw (at 12VDC):
- Standby: 15mA
- Keypress: 40mA
- Output 1 active: 65mA
- Output 1 & 2 active: 66mA
- Total Max. Current Draw: 100mA
- Outputs:
- #1 – Form C: 1A at 30VDC
- #2 – Transistor Ground: 100mA at 24VDC
- Duress: 100mA at 24VDC
- Interlock: 100mA at 24VDC
- Tamper: N.C. Dry Contact: 50mA at 24VDC max.
- Inputs:
- Egress: N.O. Ground
- Door Sensor: N.O. Ground
- Door Inhibit: N.O. Ground
- Operating Temperature: -4° to 158°F (-20° to 70°C)
- Operating Humidity: 5 to 95 percent non-condensing
- IP Rating: IP66
- Dimensions: 4-3/4 x 3-1/8 x 1-13/16 inches (120 x 80 x 46 mm)
- Weight: 16.2 ounces (460g)
- Approvals: FCC
- Warranty: Limited Warranty
