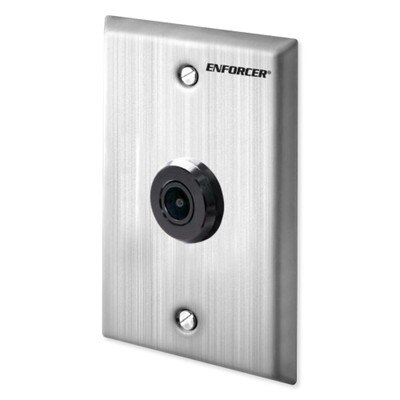

Seco-Larm Enforcer 4-in-1 Wall-Plate Camera, HD TVI, CVI, AHD, Analog

Extend The Output of Request-To-Access Plates & Other Devices

The Seco-Larm Enforcer 4-in-1 Wall-Plate Camera, HD TVI, CVI, AHD, Analog will allow you to add discreet surveillance in various areas of your property such as doors, walls, gates, entryways, machinery, and others. It features a 2.9mm wide angle lens (155° viewing angle), D-WDR (Digital Wide Dynamic Range), 2DNR (2D Digital Noise Reduction), and Sony STARVIS CMOS. All of these features provide quality footage with noise reduction, the ability to view high contrast areas, and to gain quality color saturation when recording at night. This camera supports HD TVI, CVI, AHD, and Analog formats, and has a vandal resistant design with IP67 rated weatherproof construction.

• Discreet surveillance with 2.9mm wide angle lens
• Supports HD TVI, CVI, AHD, and Analog formats
• 1/2.8" 2MP Sony STARVIS CMOS provides high quality saturation when recording at night
• 2DNR (2D Digital Noise Reduction) for clearer images
• D-WDR (Digital Wide Dynamic Range) for viewing areas of high contrast
• Vandal resistant and IP67 rated (weatherproof)

Contents

• Camera
• Single-Gang Plate
• Slimline Plate
• Angled Rubber Ring
• Angled Aluminum Ring
• Aluminum Hex Nut
• OSD Joystick
• Mounting Screws
• Manual

Notes

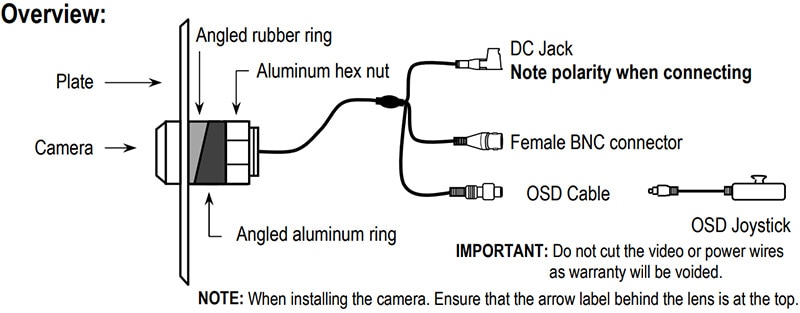

• When installing the camera, ensure that the arrow label behind the lens is at the top.
• Do not cut the video or power wires or else the warranty will be voided.

Seco-Larm Security Products

So many places and things to protect; so many ways to protect them; one partner: Seco-Larm. Under the Enforcer trademark, Home Controls offers an impressive line of Seco-Larm security products, ranging from simple switches to some of the most sophisticated alarm devices. Whether for physical security, CCTV, access control, RF equipment, or vehicle security, Seco-Larm is the premier choice. Seco-Larm gives its customers such an extensive range of dependable, cost-effective security products with a full program of service and support.

• Manufacturer Part #: EV-Y5105-N2SQ
• Type: Wall-plate camera
• Formats: TVI (Default) / CVI / AHD / Analog
• Plate Type: 1 Single-gang, 1 slimline
• CMOS: 1/2.8" 2MP Sony STARVIS™ CMOS
• Resolution: 1080p
• 2DNR: Yes
• D-WDR: Yes
• OSD (On-Screen Display): Yes
• External OSD Control: Yes
• Scanning System: 2:1 Interface
• Sync: Internal
• Video Output: 1.0Vp-p Complex video, 75Ω
• Lens: 2.9mm
• Viewing Angle: 155°
• FPS: 30FPS
• F Stop: 2.2
• Minimum Illumination: Color: 0.01Lux, BW: 0.001Lux
• Gamma Correction: 0.45
• S/N Ratio: 50dB
• Gain Control: Auto
• Operating Voltage: 12VDC
• Current Draw: 130mA±15%
• IP Rating: IP67
• Operating Temperature: 14°~122° F (-10°~50° C)
• Dimensions:
• Camera: 1-7/16" x ø1-1/8"(36 x ø28 mm)
• Single-Gang Plate: 2-3/4" x 4-1/2" (70 x 114 mm)
• Slimline Plate: 1-1/2"x4-1/2" (38 x 114 mm)
• Camera Body Weight: 2.8-oz (80g)
• Credentials: RoHS, FCC, CE
• Warranty: 3 Year

»Seco-Larm EV-Y5105-N2SQ Enforcer 4-in-1 Wall-Plate Camera Spec Sheet (.pdf)
»Seco-Larm EV-Y5105-N2SQ Enforcer 4-in-1 HD TVI, CVI, AHD, Analog Wall-Plate Camera Installation Manual (.pdf)
