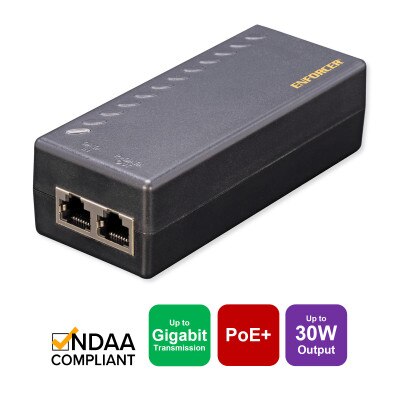

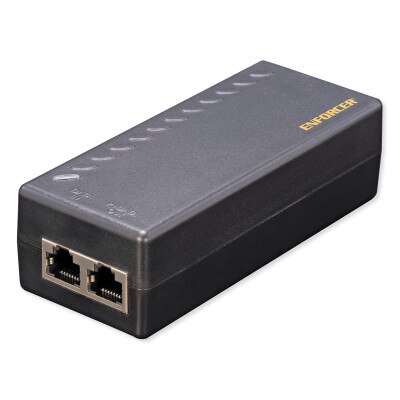

Seco-Larm ENFORCER 30W PoE Injector

Supply Power And Connect To Various PoE Devices

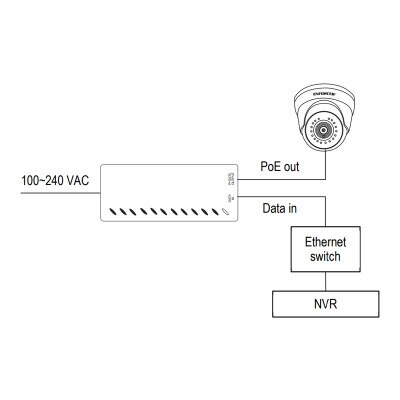

Improve your network infrastructure by providing a reliable way to deliver data signals and supply power to a PoE device with the Seco-Larm ENFORCER 30W PoE Injector. Once the injector is connected to an Ethernet switch it can deliver data signals and supply power to a PoE enabled device such as an IP camera, IP access control device, an IEEE 802.3af/at compliant network accessory, or other PoE device using a Cat5e or Cat6 cable. This enables you to install a PoE device in an area where a power outlet isn't nearby or available, making installation simple without having to use an extra external power supply. The Injector can also convert 100 to 240 VAC to low voltage DC and support up to 30W on 2 pairs and data speeds up to 10/100/1000 Mbps. Additionally, the Seco-Larm ENFORCER 30W PoE Injector has a plug-and-play design and features LEDs to indicate the power supply input and PoE output.

• Delivers data signals and supplies power from an Ethernet switch to a PoE enabled device
• Internal AC/DC converter with plug-and-play installation
• Connects to 10/100/1000BASE-T PoE devices
• Provides protection against anti-interference, overcurrent, overload, and overvoltage
• Meets IEEE 802.3af/at Ethernet standard

Contents

• 30W PoE+ Injector
• Manual

Seco-Larm Security Products

So many places and things to protect; so many ways to protect them; one partner: Seco-Larm. Under the Enforcer trademark, Home Controls offers an impressive line of Seco-Larm security products, ranging from simple switches to some of the most sophisticated alarm devices. Whether for physical security, CCTV, access control, RF equipment, or vehicle security, Seco-Larm is the premier choice. Seco-Larm gives its customers such an extensive range of dependable, cost-effective security products with a full program of service and support.

• Manufacturer Part #: NJ-A301U-T6AQ
• Operating Voltage: 100 to 240 VAC
• Connections:
• Data In: 1 x Shielded RJ45
• PoE Out: 1 x Shielded RJ45
• PoE Power Output: Up to 52VDC, 30W
• Power Link: Pin 1/2 (–), 3/6 (+) up to 30W
• Network Cables: Cat5e or higher
• Protection: Overcurrent, overload, overvoltage, anti-interference
• Ethernet Speed: 10/100/1000 Mbps
• LED Indicators: Green – power in, red – power out
• Operating Humidity: 90% (Maximum, non-condensing)
• Operating Temperature: 14° to 104° F (-10° to 40°C)
• Dimensions: 4-3/4 x 2 x 1-7/16 inches (121 x 50 x 36 mm)
• Certifications: FCC, CE, RoHS
• Warranty: 1 Year
