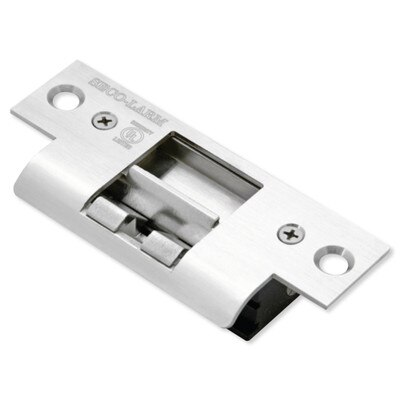

Seco-Larm Door Strike, No Cut

SKU: SESD995CD3Q

Usually ships in 3-5 days.

$105.35

WARNING: Cancer and Reproductive Harm – www.P65Warnings.ca.gov

Details

Add An Electric Strike With Minimal Cutting Into Door Frame

The Seco-Larm No-Cut Electric Door Strike is used to convert a cylindrical lockset into an electronic access-controlled locking system. This "no-cut" model is uniquely designed to fit most metal or wood doors with only minimal cutting required of the door frame beyond the hole for the strike. It's also field-selectable for fail-safe or fail-secure operation and has a reversible, non-handed design so it can fit on a right-handed or left-handed door.

  • Converts a cylindrical lockset into an electronic access-controlled lock
  • Field-selectable for fail-safe or fail-secure operation
  • Works with any cylindrical door locking system
  • Provides 1,500-pound holding force/static strength
  • Uses non-polarized connection to access control or egress device
  • Stainless steel keeper for strength and durability
  • Powered by a solenoid, not a buzzer coil (12VDC)

The strike can be connected to a digital keypad or other entry device. It features a low-profile design to support use with most metal doors and has a stainless-steel keeper for strength and durability. It also includes mounting tabs for when mounting to hollow aluminum and metal doors.

Contents

  • Door Strike
  • (2) Electrical Connectors
  • (2) Wiring Connectors
  • (2) Mounting Tabs
  • (2) Wood Screws
  • (4) Machine Screws
  • (2) Machine Screws (narrow)
  • (2) Security Screws
  • (2) Anchor Nuts
  • Manual

Notes

  • For indoor use only.
  • This strike has NO horizontal or vertical adjustments.

Building A Secure Future Since 1971

So many places and things to protect; so many ways to protect them; one partner: Seco-Larm. Home Controls offers an impressive line of Seco-Larm security products, ranging from simple switches to some of the most sophisticated alarm devices. Whether it's physical security, CCTV, access control, RF equipment, or vehicle security, Seco-Larm is the premier choice. Seco-Larm gives its customers an extensive range of dependable, cost-effective security products with a full program of service and support.

Specifications

  • Manufacturer Part #: SD-995C-D3Q
  • Operating Voltage: 12/24 VDC
  • Current Draw:
    • 12VDC
    • 24VDC
  • Latch Throw: 9/16 inch (15mm)
  • Keeper Width: 1-7/16 inch (36mm)
  • Static Strength: 1,500 lb. (680kg)
  • Dynamic Strength: 70 lb.-ft (9.68kg-m)
  • Endurance:
    • 100,000 cycles (UL tested)
    • 1,000,000 cycles (factory tested)
  • Operating Temperature: 32° to 120° F (0° to 49° C)
  • Operating Humidity: 0 to 85%
  • Dimensions: 4-7/8 x 1-1/4 x 1-1/16 inches (124 x 32 x 27.5 mm)
  • Credentials: CE, RoHS, UL
  • Warranty: 3 Years

Downloads

»Seco-Larm SD-995C-D3Q No-Cut Door Strike Spec Sheet (.pdf)
»Seco-Larm SD-995C-D3Q No-Cut Door Strike Installation Manual (.pdf)
»Seco-Larm SD-995C-D3Q No-Cut Door Strike Technical Drawing (.pdf)
