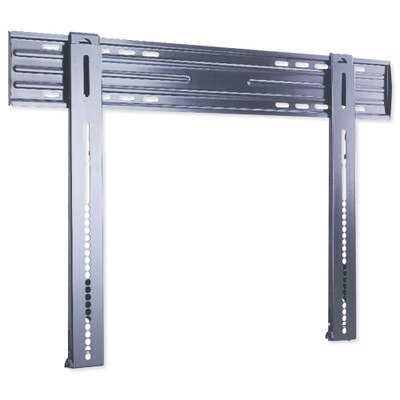

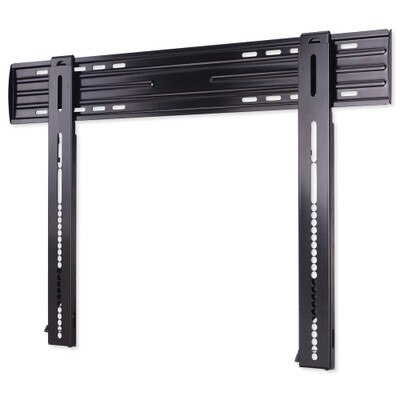

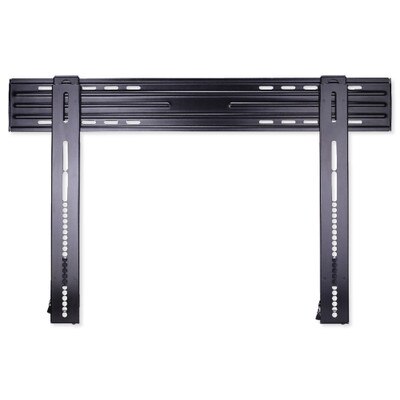

Sanus Super Slim Fixed Wall Display Mount, 51-80"
WARNING: Cancer and Reproductive Harm – www.P65Warnings.ca.gov
Details
DEALER ONLY ITEM: Not Available Directly to End Users.
Dealers, log on to see pricing. »Sign up to become an authorized installer.
Easy-Install TV Mount with Ultra-Low Profile
Specially designed for the custom installer, the Sanus Super Slim Fixed Position Wall Mount for 51"-80" Flat Panel TVs is made to facilitate a quick installation that gives viewers an incredibly aesthetic TV setup. Only 0.55" in depth, this "super slim" mount achieves an ultra-low profile to create a near flush appearance for the TV. After installation, the TV can slide side-to-side for the perfect view.
- Mounts 51-80" flat screen TV up to 150 pounds
- Low profile depth of 0.55" creates near flush appearance
- Slides side-to-side for perfect positioning on the wall
- Organizes and conceals unsightly cables
- Compatible with VESA-compliant flat screen TVs
- Earned the CE Pro Best Award 2009
Installation Details
The tool-free mount is compatible with VESA-compliant flat screen TVs that weigh up to 150 pounds and measure 51 to 80 inches (129.54 to 203.2 cm) diagonally. It's simple to install with the included hardware. You can take advantage of the free mobile apps provided by Sanus for the iPad, iPhone and iPod touch, as well as the free online mount finder that helps you make sure you're purchasing the right size mount for your TV, and the free online height finder that helps you determine the best placement for the mount.
As part of the HDpro series, this mount offers exclusive features that make installation even easier. "ClickStand" technology holds the bottom of the TV away from the wall for easy cable access after the TV has been mounted, and hidden quick-release tabs on both mounting brackets easily pull down to unlock the TV from the bracket anytime you need complete access to the back of the TV.
Additionally, the "ProSet" feature allows post-installation height and leveling micro-adjustments for perfect positioning after hanging. Its expandable, universal brackets create a perfect fit with your TV, and the mounting holes are designed to accommodate 16" or 24" studs.
Contents
- Super Slim Fixed Position Wall Mount
- Installation Hardware
SANUS Stands the Test of Time
Founded in 1986 as Sanus Systems, this long-time manufacturer quickly became a leader in residential A/V furniture and accessories. In 2002, Sanus's universal wall mount for flat screen TVs was introduced, solidifying the company's high profile in the electronics industry. Just two years later in 2004, Sanus Systems merged with another wildly popular A/V mount company, Chief Manufacturing, who now both operate under parent company Milestone AV Technologies. Today, the SANUS brand is one of most highly regarded residential A/V brands in the world, offering award-winning TV mounts, A/V racks, speaker stands and more.
Specifications
- Manufacturer Part #: LL11-B1
- TV Size Range: 51 to 80 inches (129.54 to 203.2 cm)
- Maximum TV Weight: 150 pounds (68.04 kg)
- Depth From Wall: 0.55 inch
- Universal Mounting: Yes; 65 x 25 through 825 x 500
- Dimensions: 35.3(W) x 22.5(H) x 0.55(D) inches (89.66 x 57.15 x 1.4 cm)
- Weight: 9 pounds (4.08 kg)
- Approvals: UL, cUL
- Warranty: 10-Year Limited
Supported VESA Patterns:
- VESA 100 x 100
- VESA 100 x 200
- VESA 200 x 100
- VESA 200 x 200
- VESA 200 x 300
- VESA 200 x 400
- VESA 300 x 100
- VESA 300 x 200
- VESA 300 x 300
- VESA 300 x 400
- VESA 400 x 100
- VESA 400 x 200
- VESA 400 x 300
- VESA 400 x 400
- VESA 400 x 500
- VESA 500 x 100
- VESA 500 x 200
- VESA 500 x 300
- VESA 500 x 400
- VESA 500 x 500
- VESA 600 x 100
- VESA 600 x 200
- VESA 600 x 300
- VESA 600 x 400
- VESA 600 x 500
- VESA 700 x 200
- VESA 700 x 300
- VESA 700 x 400
- VESA 700 x 500
- VESA 800 x 200
- VESA 800 x 400
- VESA 800 x 500
