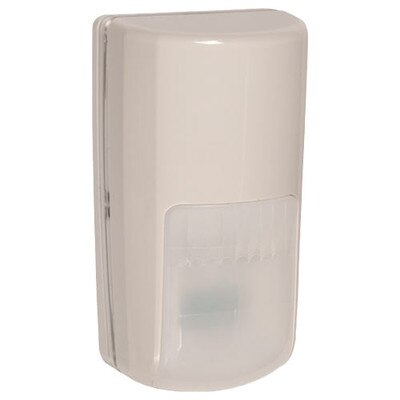

STI Wireless Outdoor Motion Detector

SKU: STI34752

Usually ships in 3-5 days.

$82.50

WARNING: Cancer and Reproductive Harm – www.P65Warnings.ca.gov

Details

Ignores Animals Up to 100 Pounds

Designed to reduce false alarms, the STI Wireless Outdoor Motion Detector senses motion up to 33 feet away, while ignoring animals up to 100 pounds. The weatherproof detector also features Dual-Frequency infrared (DFIRT) opto-electronics to further minimize the chance of false activations. When a true alarm is activated, the detector signals your STI wireless receiver (sold separately) to alert you.

  • Senses motion up to 33 feet away within 90 degrees
  • Ignores pets up to 100 pounds (45 kg)
  • Supervised for low battery and signal reception
  • Compatible with any STI Wireless Alert Series Receiver

The battery-powered motion detector installs outdoors either on a flat wall or in a 45-degree corner with the included screws. If its tamper cover is opened after installation, a tamper signal will be sent to the receiver. Additionally, if the unit is removed from the wall, loses signal, or has low battery, the receiver produces a single beep once a minute.

Contents

  • Motion Detector
  • Lithium Battery
  • Mounting Screws

Note: Requires an STI Wireless Alert Series Receiver to alert you.

We Protect The Things That Protect You®

Safety Technology International (STI) is a family owned and operated business that began over 35 years ago with Jack Taylor's invention of the Stopper Pull Station Protector. STI now markets more than 1,000 products throughout the world that help prevent false fire alarms, theft, and vandalism of the devices that protect us all.

Specifications

  • Manufacturer Part #: STI-34752
  • Mounting Hardware: #6 screw
  • Mounting Height: 7.5 feet (ideal height)
  • Replacement Battery: CR123A 1500mAH
  • Temperature Range: -40° to 131° F (-40° to 55° C)
  • White Light Immunity: 25000 lux
  • RF Immunity: 50 V/m 10-1000 MHz; 20 V/m 1-2 GHz
  • Housing Dimensions: 4.4(H) x 2.4(W) x 2(D) inches
  • Tamper Switch: Form A (NC). 50 mA at 30 VDC
  • Wireless Range: 33 feet (10 m) in sensor-facing direction
  • Optical Fields-of-View:
    • Long-range: 88 degrees
    • Mid-range: 30 degrees
    • Short-range: 18 degrees
    • Look-down: 8 degrees
  • Approvals: FCC, IC
  • Warranty: 1 Year

Downloads

»STI-34752 Wireless Outdoor PIR Motion Detector Installation Manual (.pdf)
