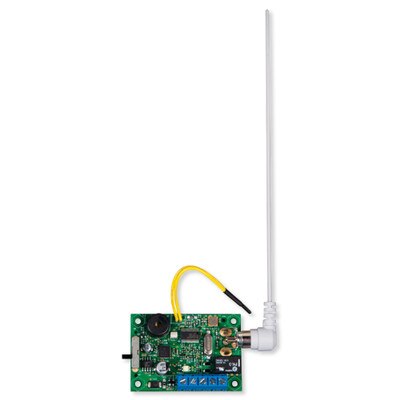

STI Single Channel Slave Receiver

SKU: STI34098

Usually ships in 3-5 days.

$47.78

WARNING: Cancer and Reproductive Harm – www.P65Warnings.ca.gov

Details

Connect One STI Wireless Device to Your Third-Party System

Connect an STI wireless device to a third-party home security or automation system with the STI Single Slave Receiver. This compact receiver module hard-wires into a third-party control panel to enable wireless communication with one STI transmitter/sensor, creating a new wireless zone. This allows your third-party system, for example, to alert you when an STI Wireless sensor is triggered. The receiver utilizes Form C relay contacts rated at 1A at 12 VDC.

  • Allows one STI Wireless device to communicate with a third-party controller
  • 1,000-foot line of sight wireless range
  • Connects to a control panel using Form C relay contacts

How It Works

The STI Single Slave Receiver receives STI encoded 433.92 Mhz radio signals from STI Wireless transmitters/sensors.

Installation Details

Install the Single Slave Receiver into a protected enclosure to prevent signal interference. The Receiver connects to a control panel using Form C relay contacts.

To activate the Slave Receiver, move the onboard switch to Program. Connect a desired STI transmitter/sensor (sold separately) to the receiver by activating the transmitter (see transmitter instructions). The receiver will beep twice to confirm programming. Afterwards, move the mode switch to the intended mode. Activate the connected transmitter again to confirm enrollment.

NOTE: Receives signals from only one transmitter; attempting to program a second transmitter will delete original transmitter. To connect additional STI Wireless devices to your system, purchase additional Slave Receivers.

We Protect The Things That Protect You®

Safety Technology International (STI) is a family owned and operated business that began over 35 years ago with Jack Taylor's invention of the Stopper Pull Station Protector. STI now markets more than 1,000 products throughout the world that help prevent false fire alarms, theft, and vandalism of the devices that protect us all.

Specifications

  • Manufacturer Part #: STI-34098
  • Operating Voltage: 12 VDC; 16mA
  • Standby Voltage: 12 VDC; 10mA
  • Resistive Contact Ratings: 30 AC/DC, 1A
  • Warranty: 1 year

Downloads

»STI STI-34098 Single Channel Slave Receiver User Manual (.pdf)
