SCP Low Voltage Media Enclosure Kit

SKU: SCHCCxxKITECPL

Please Select Option To View Availability

$99.95 to $119.95

WARNING: Cancer and Reproductive Harm – www.P65Warnings.ca.gov

Details

Attractive Design Keeps Your Components Safe

Ensure your wireless and connected devices are well-protected with the SCP Low Voltage Media Enclosure Kit. This enclosure has an attractive design and is made out of sturdy, durable ABS plastic material. It provides a deep interior measuring 5.25 inches, leaving plenty of room to secure your home automation components. With a concealed venting design, it allows for plenty of air flow circulation to keep your devices cool. And because the enclosure is made out of ABS plastic material, it's Wi-Fi transparent so that you don't have to worry about signal interference that you would typically experience with metal enclosures. The SCP Low Voltage Media Enclosure Kit fits between 16-inch o/c studs, is UL compliant and Cox communications approved, and includes 2 electrical knockouts for single gang boxes.

  • 5.25" interior allows plenty of room for automation components
  • ABS plastic construction allows full range of wireless signals
  • (2) electrical knockouts for single gang boxes
  • Concealed venting design for plenty of air flow circulation
  • UL compliant and Cox communications approved
  • Available in 18-inch or 28-inch options

Contents

  • Media Enclosure Kit
  • Manual

Quality Installations Deserve Quality Products

Structured Cable Products is a manufacturer of high quality structured wiring products, security, fire alarm, speaker as well as LAN cable and accessories. With over 15 years of manufacturing and distribution experience of quality cable and accessories SCP can provide all of your cable and accessory solutions.

Specifications

  • Manufacturer Part #:
    • HCC-18-KIT-ECPL: 18-inch
    • HCC-28-KIT-ECPL: 28-inch
  • UPC:
    • HCC-18-KIT-ECPL (18-inch): 817777015935
    • HCC-28-KIT-ECPL (28-inch): 817777015973
  • Item: Plastic Enclosure with Vented Hinged Cover
  • Color: White

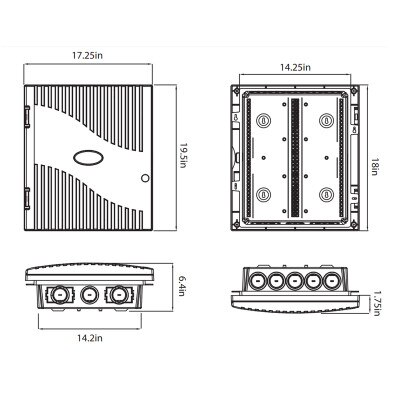

  • Dimensions:
    • 18-inch:
      • Inside: 18(H) x 14.25(W) x 5.25(D)
      • Overall Cover Outside: 19.50(H) x 17.25(W) x 1.75(D)

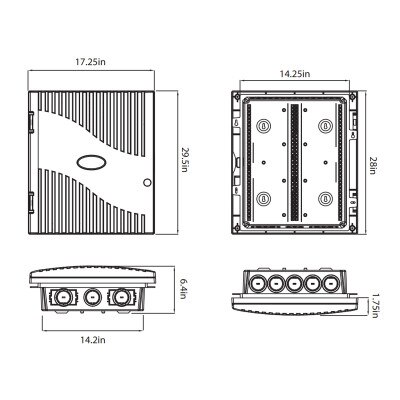

    • 28-inch:
      • Inside: 28(H) x 14.25(W) x 5.25(D)
      • Overall Cover Outside: 29.50(H) x 17.25(W) x 1.75(D)
  • Standards and Certifications: Cox communications approved; UL compliant

Downloads

»SCP HCC-18-KIT-ECPL Low Voltage Media Enclosure Kit, 18 In. Spec Sheet (.pdf)
»SCP HCC-18-KIT-ECPL Low Voltage Media Enclosure Kit, 18 In. Technical Drawing (.pdf)
»SCP HCC-28-KIT-ECPL Low Voltage Media Enclosure Kit, 28 In. Spec Sheet (.pdf)
»SCP HCC-28-KIT-ECPL Low Voltage Media Enclosure Kit, 28 In. Technical Drawing (.pdf)
