SCP Active Optical 4K HDR HDMI Cable with Detachable Connector
WARNING: Cancer and Reproductive Harm – www.P65Warnings.ca.gov
Details
Slim, Flexible HDMI Cable For Any Installation

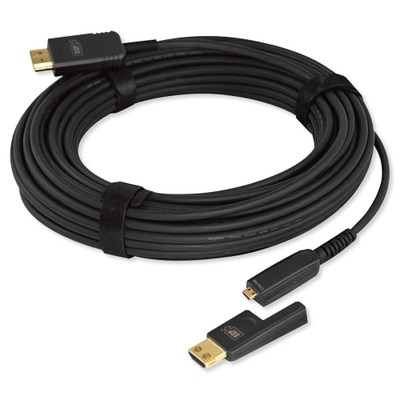

Ensure reliable distribution of 4K high-definition HDMI signals at extended lengths with the SCP Active Optical 4K HDR HDMI Cable with Detachable Connector. Available in three different lengths, the 24 Gbps Active Optical (AOC) cable supports quality HDMI runs up to 10 meters (33 ft), 15 meters (49 ft), or 20 meters (65 ft). It outperforms other cables in its class due to its design, which features a hybrid cable made with OM3 fiber and copper wire – a combination that makes it thinner and more flexible than other cables.
- Thinner, lighter, and more flexible than traditional HDMI cables
- Supports Ultra HD (4K), HDR, Multi-Channel Audio, EDID, CEC, HDCP 2.2, ARC and HEAC
- Snug-Tite Grip for secure connectivity
- Detachable connector: type D/A adapter
- Pulling capsule included for easy installation through conduit and tight spaces

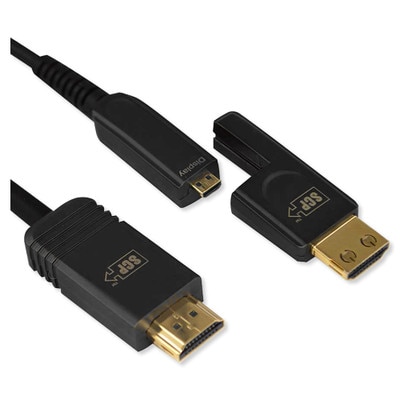

The SCP Active Optical 4K HDR HDMI Cable features a micro HDMI end on the display/sink side with a unique detachable Type D/A adapter. There's also an SCP Pulling Capsule included to protect the cable end during installation, making conduit or tube installation extremely easy. Also featured is the SCP Snug-Tite Grip, which keeps both connector ends securely connected to their devices for optimized signal integrity.
Contents
- Active Optical 4K HDR HDMI Cable
- Detachable Adapter
- SCP Pulling Capsule
- USB Power Cord for Optional 5V Power Supply
- Installation Manual
Quality Installations Deserve Quality Products
Structured Cable Products is a manufacturer of high quality structured wiring products, security, fire alarm, speaker as well as LAN cable and accessories. With over 15 years of manufacturing and distribution experience of quality cable and accessories SCP can provide all of your cable and accessory solutions.
Specifications
- Manufacturer Part #:
- 995AOC-10M (10 Meters)
- 995AOC-15M (15 Meters)
- 995AOC-15M (20 Meters)
- HDCP & DDC: HDCP 2.2 Fully Support bi-directional EDID and HDCP communication
- Video Bandwidth:
- 6 Gbps/x3 Channel R.G.B. (max)+ 6 Gbps/ Clock
- Supporting HDMI 2.1 up to 24 Gbps (6 Gbps/ch 4)
- Supported Resolution & Distance: HDTV : 480p, 720p, 1080i and 1080p deep color, 4K@30Hz, 4K@60Hz(4:4:4), 3D Full HD 1920 x 1080 , up to 100 meters
- O/E Converter:
- Transmitter (Source): 4 channel 850 nm VCSEL array
- Receiver (Sink): 4 CH GaAs PD array
- ESD Protection: High ESD protection at TMDS outputs 8 kV (HBM)
- Connector Type: HDMI A to type D, with HDMI A/Male Adaptor
- Cable Type: Hybrid type with OM3 fiber and copper wire
- Cable Length: 10m/15m/20m (33/49/65 ft)
- Cable Outer Diameter: 4.5mm
- Jacket Outer Material: TPE (LSZH – Low Smoke Zero Halogen) or PVC (CL2)
- Differential Input: 100 ohm (type)
- Power Consumption: 250mW (max)
- Power Supply: Optional USB 5v Rx Side
