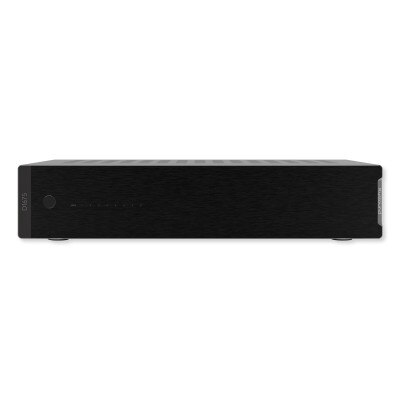

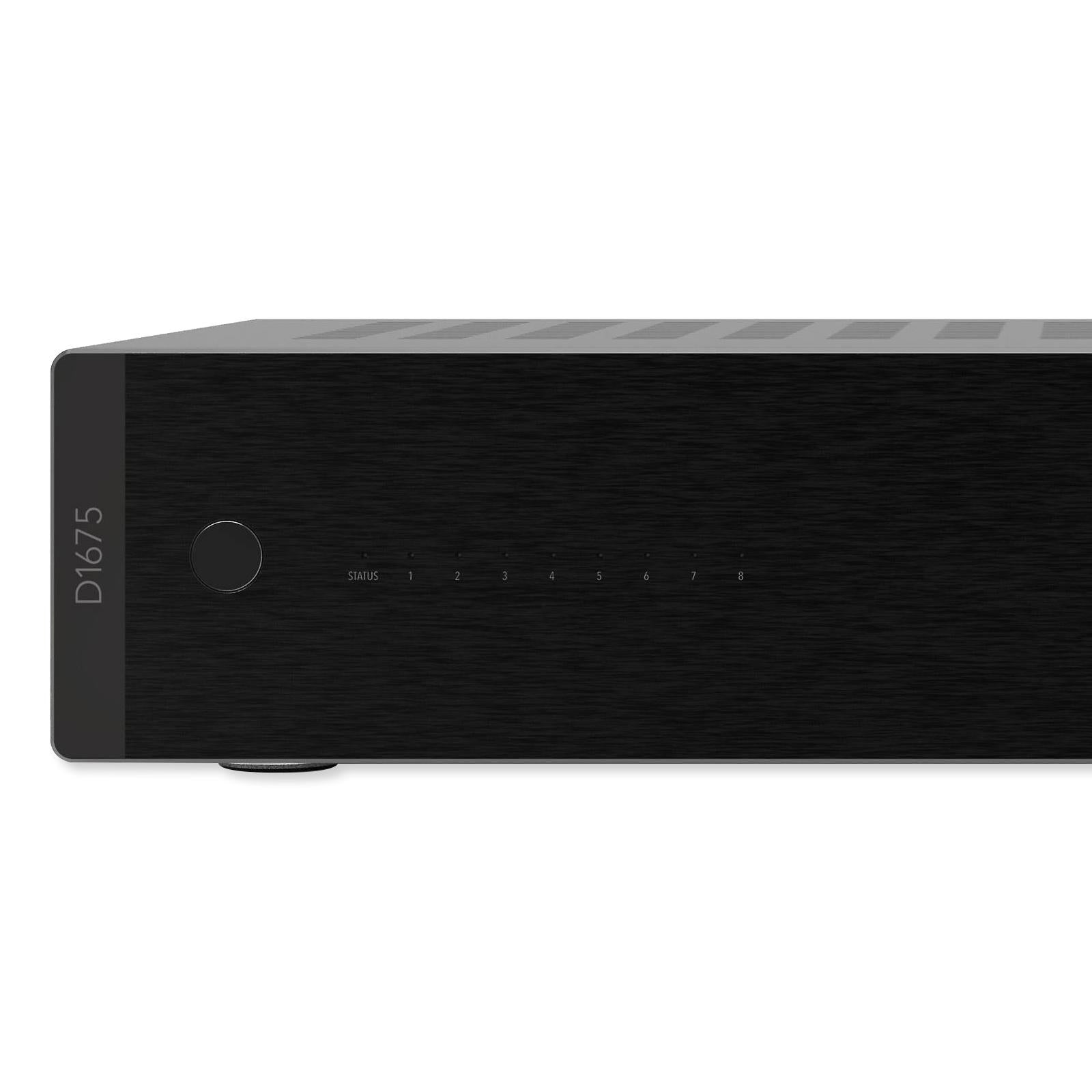

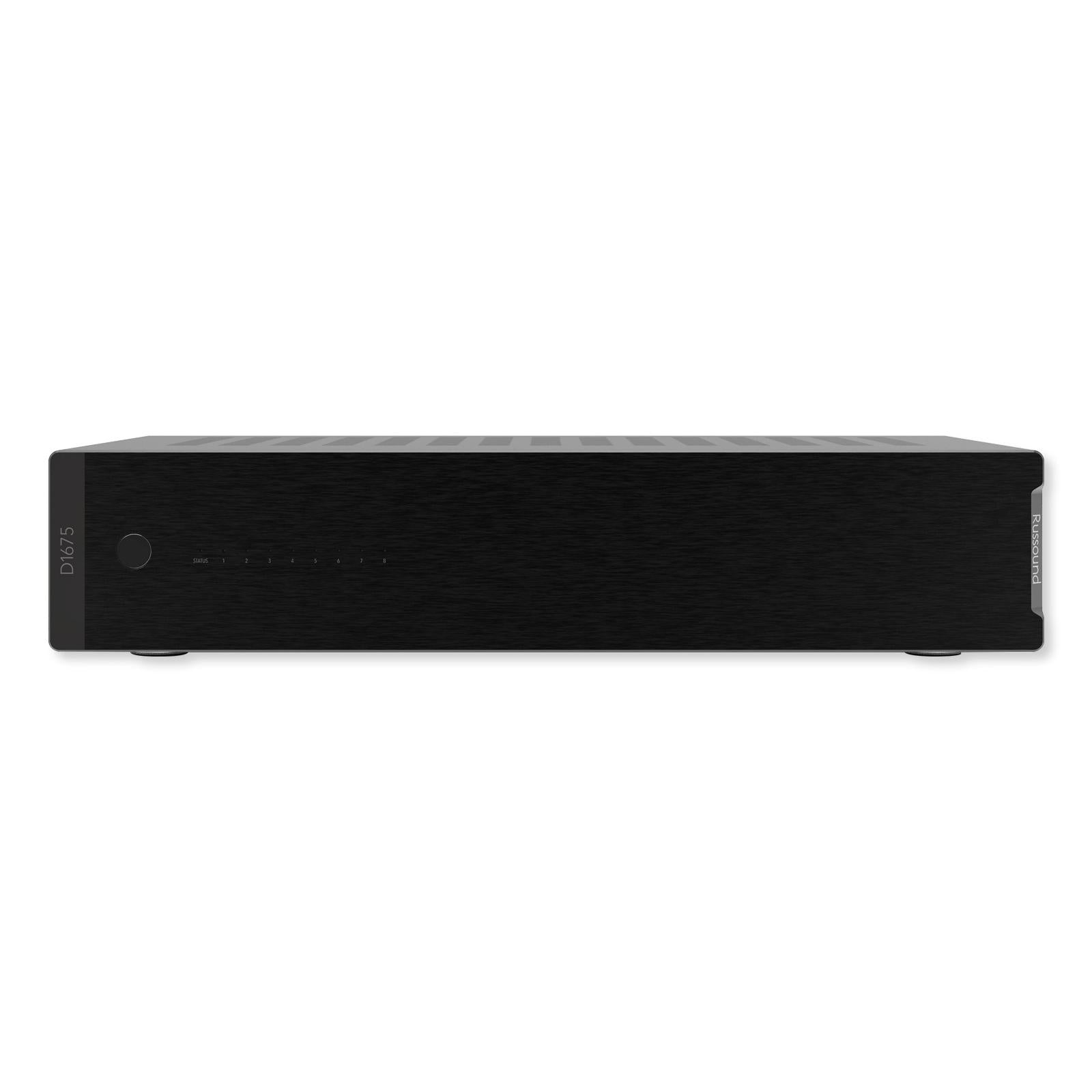

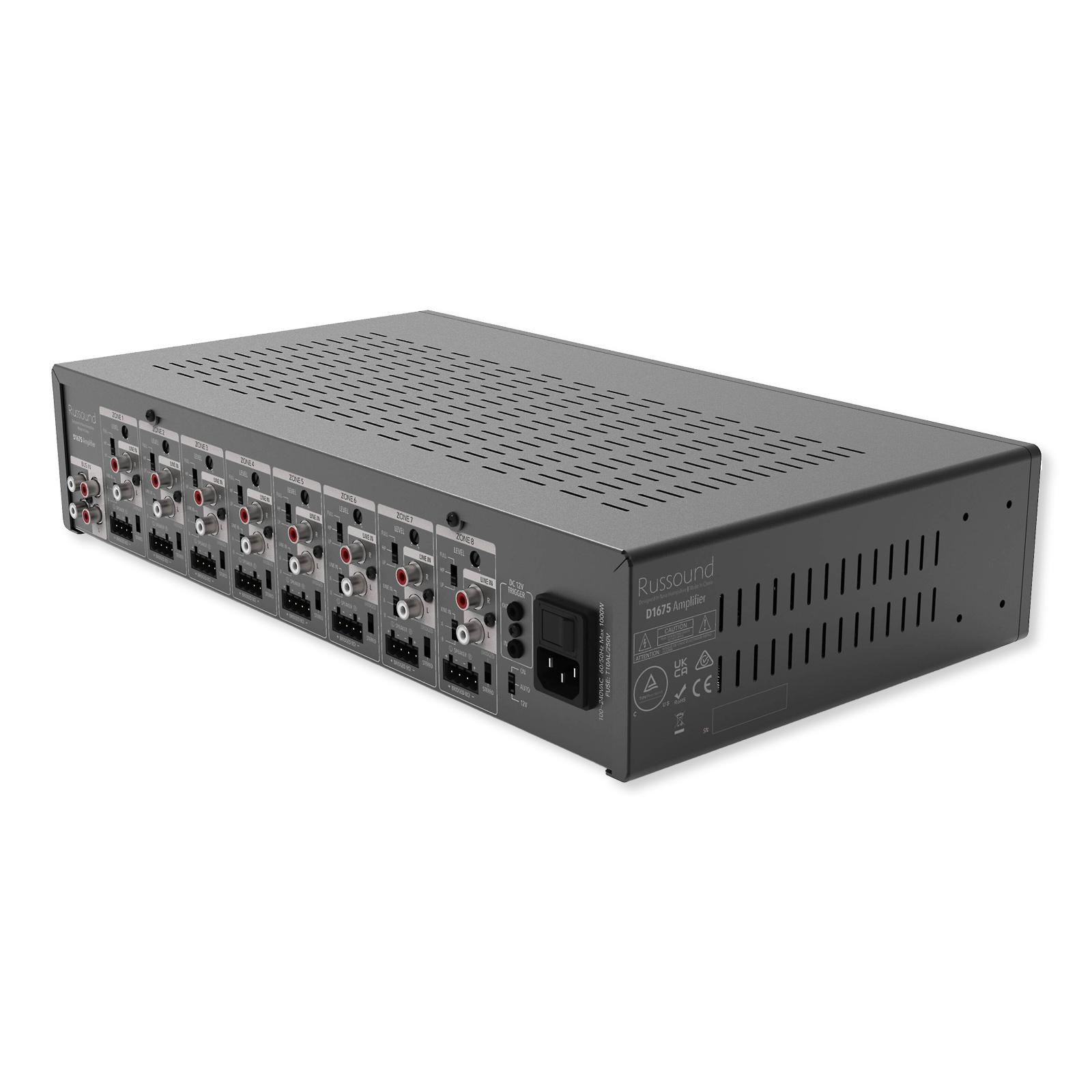

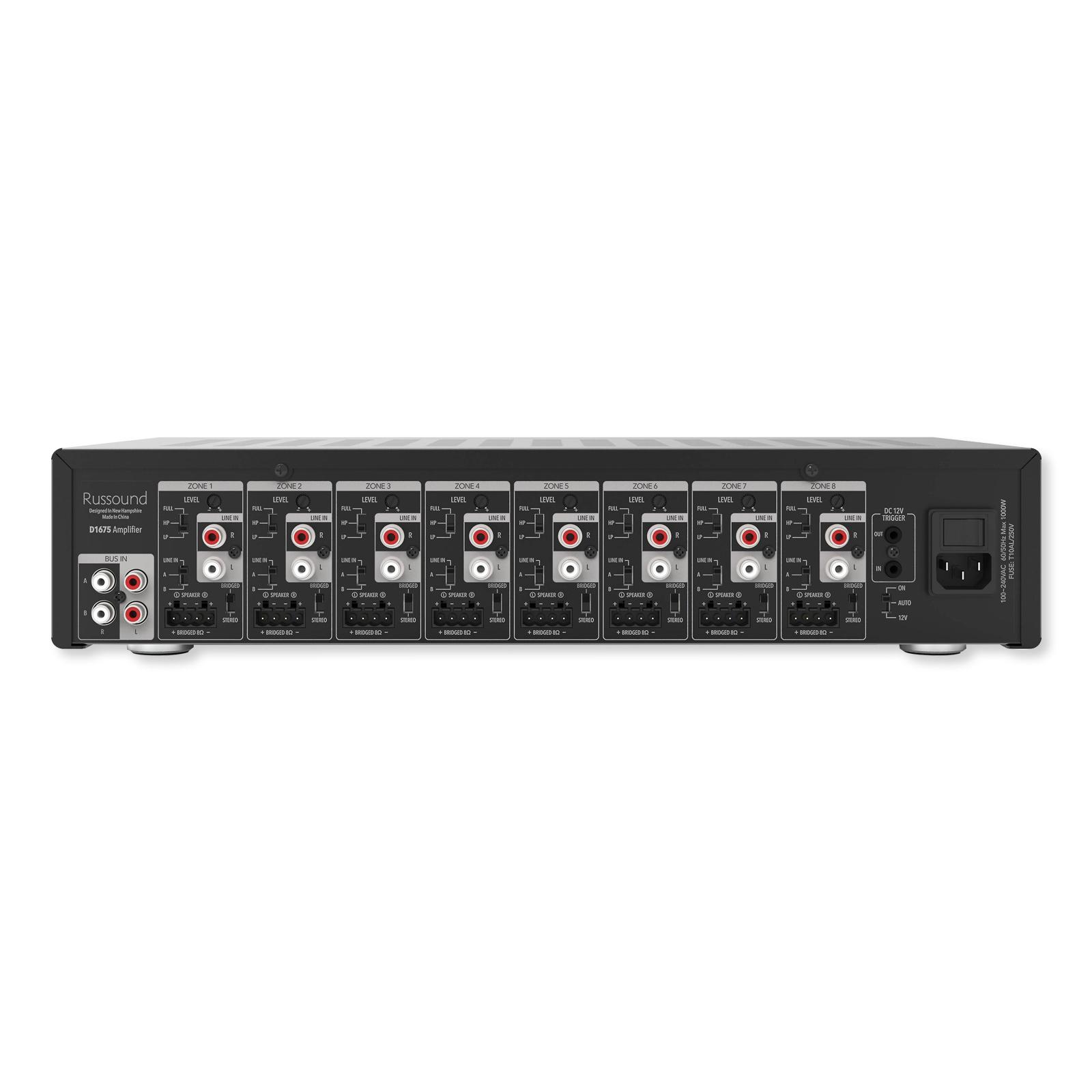

Russound 8 Zone, 16-Channel Premium Digital Amplifier

Install a Versatile Amplifier For Any Audio System

Support the full power of your premium home audio speakers with the Russound 8 Zone, 16-Channel Premium Digital Amplifier. This digital audio amplifier supports up to 8 independent zones at up to 75 Watts per channel to provide optimal sound quality. The D1675 can support up to 10 audio sources: 2 via dual bus inputs that can be played across all or a selected number of zones, while each individual zone may accept its own dedicated line level audio source to increase the amount of options to play throughout your system. Built-in audio filter setting switches for each individual zone allows you to reconfigure the audio output for each zone depending on the connected audio components; from low frequency subwoofers for playing heart pounding music to higher frequencies to deliver clear audio for smaller speakers. Audio zones can be bridged together to support up to 150W speakers or subwoofers.

• 16-channel amplifier arranged in stereo pairs for custom configurations for each 8 zones
• 37 watts per channel into 8 ohms and 75 watts per channel into 4 ohms; or bridged channel of 150W
• Supports up to 10 audio inputs: 2 bus inputs or 1 dedicated line input per zone
• Built-in audio filter configures each zone to provide full range sound or to engage a custom low-pass or high-pass filter
• Zones can be bridged to support speakers up to 150W, creating flexible configurations
• Compatible with Russound volume controllers and speakers
• Global and independent zone triggering
• Can be rack mounted using the included rack-mount ears and hardware

Installation Details

The D1675 Premium Digital Amplifier can be rack mounted into a standard media cabinet filling in two rack units with included hardware. The Amplifier can also be placed onto a desktop surface.

Contents

• D1675 Digital Amplifier, 16-Channel
• Power Cord, 6 Ft.
• Set of 4-Pin Speaker Connectors
• Set of Rack Mount Ears with Screws
• Manual

Russound Brings Engineered Innovation and Extraordinary Sound

The Russound name is synonymous with audio quality around the world. Russound delivers a complete range of multiroom audio systems, source equipment, volume controls, amplifiers, loudspeakers and intercom systems. Every audio device from Russound has been manufactured to fulfill the ideal listening experience of any user – from background music listening to premium performance in your favorite listening areas at home. Russound remains dedicated to providing its dealers and customers with the right products for their desired audio needs.

• Manufacturer Part #: D1675
• UPC: 612934853920
• Power Output:
• 4 Ohms: 75W per channel, 1 kHz One Zone Driven
• 8 Ohms: 37W per channel, 1 kHz One Zone Driven
• 8 Ohms Bridged: 150W, 1 kHz One Zone Driven
• Frequency Response:
• Full Range Mode: 20Hz to 20kHz ±3dB at 1W output into 4 or 8 Ohms
• Low Pass (LP) Mode: 20Hz to 160Hz ±3dB at 1W output into 4 or 8 Ohms
• High Pass (HP) Mode: 80Hz to 20KHz ±3dB at 1W output into 4 or 8 Ohms
• Input Sensitivity:
• 4Ω, One Zone: 620 mV for 75W @ 1kHz
• 8Ω, One Zone: 690 mV for 37W @ 1kHz
• Input Impedance: >22k Ohms Line Input
• Signal-to-Noise Ratio, 4 Ohms: >90dB A-weighted
• Signal-to-Noise Ratio, 8 Ohms: >96dB A-weighted
• Volume Gain Adjustment: By Zone

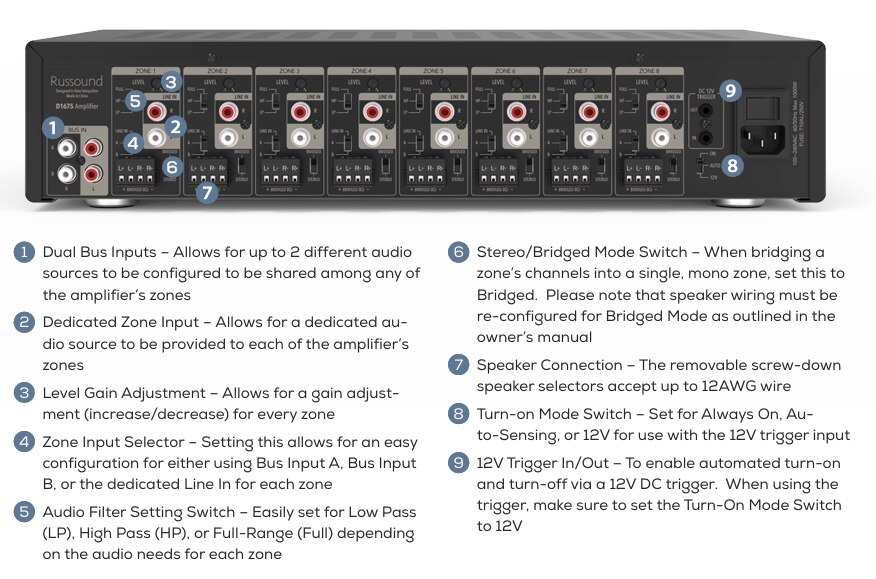

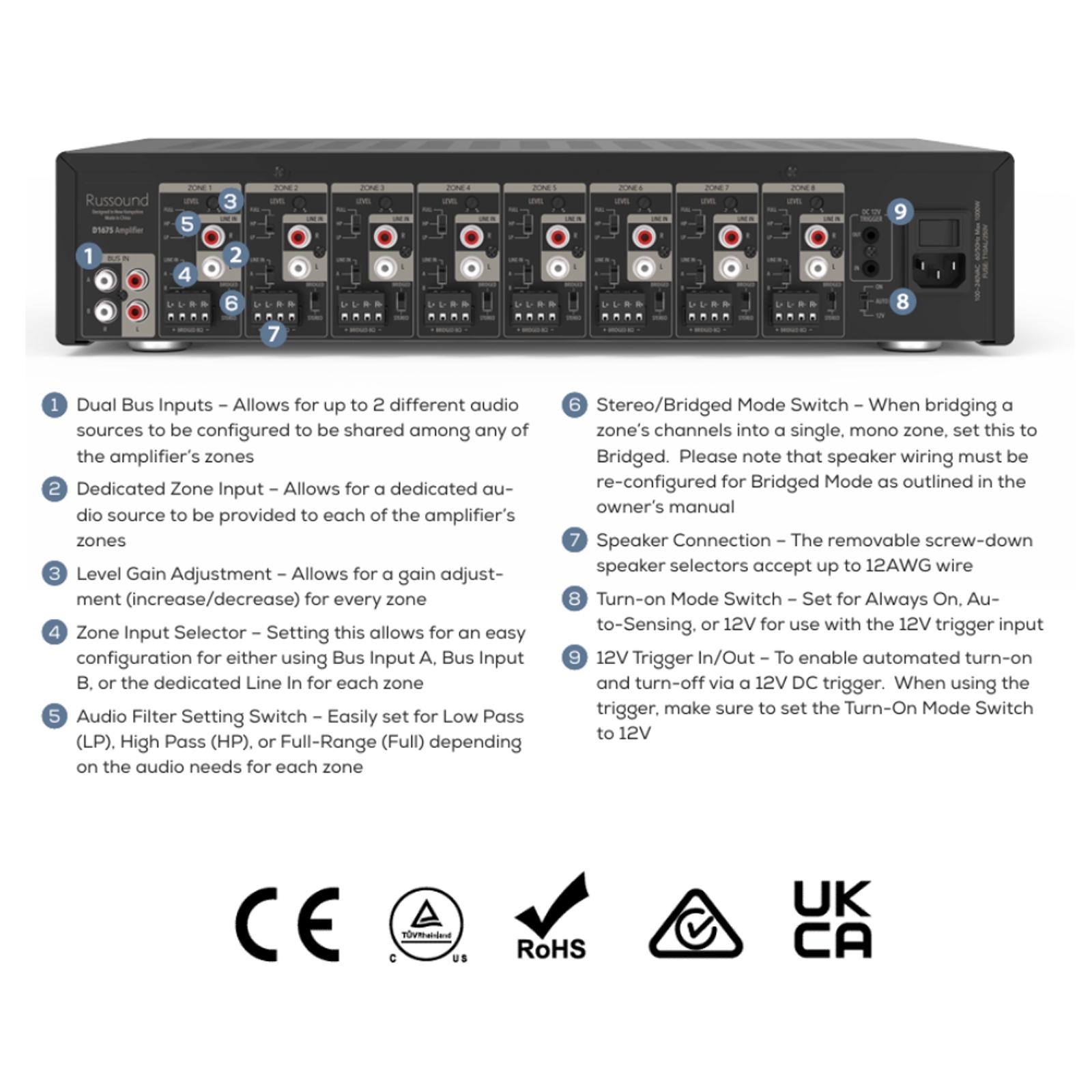

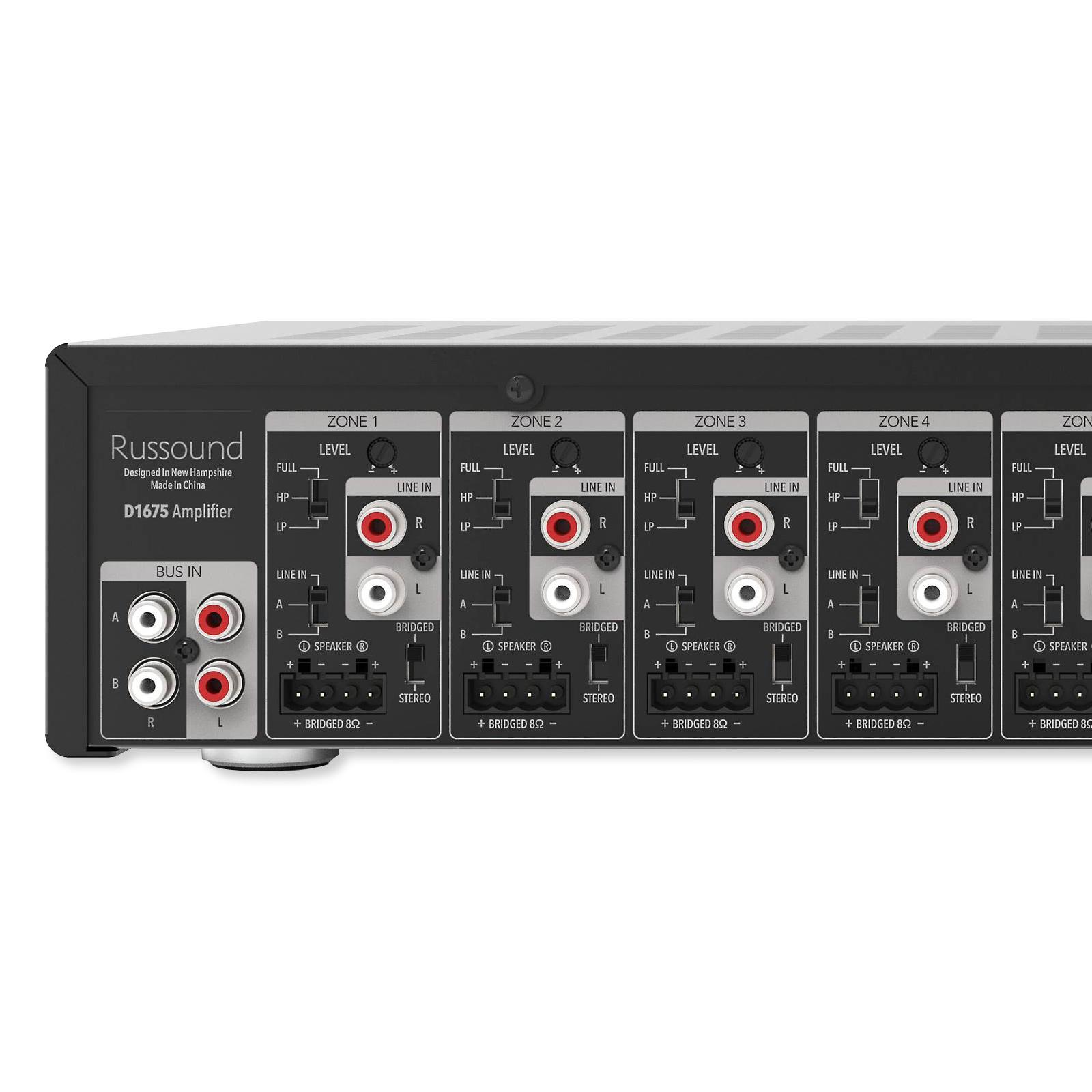

• Zone Line Input: Line or Bus select switch per zone
• Speaker Connectors: Detachable screw-down, support up to 12 gauge wire
• Operating Temperature: 32°F to 104°F (0°C to 40°C)
• Operating Altitude: 0 to 9,843ft (3,000m)
• Power Requirements:
• North American Model D1675: 115-120VAC, 60Hz (1000W Max)
• International Model D1675i: 220-240VAC, 50Hz (1000W Max)
• Power Connector: IEC C14
• Standby Power Consumption: 0.3W
• Dimensions: 17.125(W) x 3.5(H) x 9.75(D) inches (51.33 x 17 x 36.3 cm)
• Weight: 12.8lbs (5.8kg)
• Warranty: 2-Year Limited
