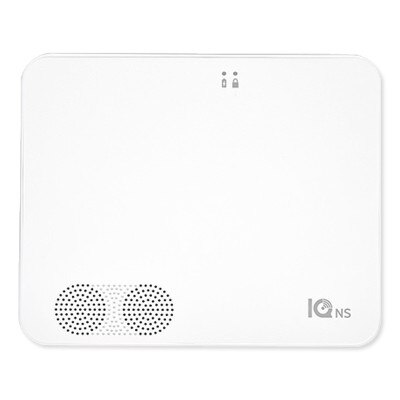

Qolsys IQ4 NS Control Panel, Z-Wave 800 + PowerG (Verizon)

Increase the Range and Size of Your Qolsys Network

Start your smart home and smart security system with the Qolsys IQ4 NS Control Panel, Z-Wave 800 + PowerG (Verizon). This automation and security hub is a part of Qolsys' line of smart home and smart security controllers, built with enough components to build, automate, and support virtually any automation or security task desired. The IQ4 NS Control Panel utilizes an Android 9 operating system accessed via browser interface or mobile application to enable you to command hundreds of devices using Z-Wave 800 (U.S.) and PowerG wireless protocols. The IQ4 NS Control Panel provides you with the bedrock necessary to create nearly anything you need to make your home safer, smarter and easier to stay connected.

• System hub manages hundreds of security and home automation devices
• Supports hundreds of Z-Wave Plus and PowerG wireless devices
• Compatible with Z-Wave 800 series devices along with existing Z-Wave and Z-Wave Plus devices
• Command lights, security sensors, intercoms, video doorbells, smart locks, garage doors, and thermostats from one location
• Connects to Verizon's LTE network (SIM Card built-in) for keep your system online
• 2x front-facing 2W speakers and 85-decibel siren provides clear audio for intercom communication and alarms
• Sends/receives PowerG signals up to 2000 ft
• Remote management/monitoring services powered by Alarm.com (includes the Verizon LTE cellular connection)

IQ4 NS Panel versus IQ Panel4 or IQ4 Hub

The IQ4 NS Panel is a traditional security hub with no built-in interface or controller functionality, unlike the IQ Panel 4 or IQ4 Hub. The IQ4 NS Panel does not include the touchscreen of the IQ Panel 4 or the IQ4 Hub, the built-in glass break or motion detectors, 8MP Camera, or microphones for intercom communication. The IQ4NS Panel can support the same amount of devices, automated routines, and remote connections as the other IQ system hubs. For local touchscreen control over your Qolsys system, in addition to control via Alarm.com or the Alarm.com app, consider the QSIQP4001x Qolsys IQ Panel 4 or the QSIQPH051 Qolsys IQ 4 Hub, each sold separately.

Additional Features

• Dual Path Connectivity: Built-in Wi-Fi and LTE radios work together to create dual-path connectivity to the cloud to ensure that you're always connected. This improves latency, reliability, speed, and provides software updates.
• Bluetooth Disarming: Bluetooth Touchless Disarming allows you to pair up to five smartphones or tablets for secure, authenticated disarming. No more accidentally setting off your alarm. Just leave your smartphone in your pocket or purse to automatically set or disarm your security as you leave or arrive home.
• Android 9: Unlike old systems that do not provide software updates, the IQ Panel 4 uses the Android 9 operating system that's intuitive, upgradeable, and future proof. It offers language support, a video player, custom text to speech, and an appified experience.

Built-In Verizon LTE Wireless Internet

The IQ4 NS Panel works on the Verizon LTE network (SIM card included) to transmit and receive security information wirelessly. This allows the system to be controlled remotely with your smartphone or tablet using the Alarm.com mobile app (Android, iOS, Windows, and Blackberry).

Alarm.Com App

The IQ4 NS Panel is monitored by Alarm.com and can be controlled remotely with your smartphone or tablet using the Alarm.com mobile app (Android, iOS, Windows, and Blackberry). You'll be able to monitor and control your smart home in real-time and from anywhere to arm or disarm your security system, lock or unlock your smart doors, watch live video from your cameras, turn off lights, and much more!

Installation Details

The Panel comes with a SmartMount backplate for easy wall installation. The SmartMount also serves as the base for compatible desktop mounts such as the IQ 4 Stand (QSIQP4STANDx). The Panel plugs into a standard power outlet using the included power supply. The required Internet connection is provided by the pre-installed Verizon LTE SIM Card. An Alarm.com account is also required, but not included.

Z-Wave Plus v3 Certification

Z-Wave Plus v3 is an upgraded Z-Wave certification program to help you identify products that take advantage of the latest Z-Wave hardware platform, also known as 800 Series or Gen8 Z-Wave. Z-Wave Plus v2 compatible devices include extended wireless relay range up to 1300ft/400m (or 7900 ft/2400m point-to-point range with Z-Wave LR), three layers of encryption, faster operation, and longer battery life.

Contents

• IQ4 Panel NS
• Verizon LTE SIM Card (pre-installed)
• Power Supply
• SmartMount backplate
• Quick Install Guide

Notes

• Requires an Internet connection and an active remote monitoring account with Alarm.com.
• Requires the Alarm.com mobile app to monitor and control the IQ4 NS Panel remotely using a smartphone or tablet (Android, iOS, Windows, and Blackberry).
• IQ Panel 4 Stand for desktop is sold separately.

Qolsys: All In One. Always Connected.

Founded in 2010 with the mission to improve lives through technology, Qolsys develops innovative life safety, security, and home control devices built to set a higher standard for the industry. Qolsys products are flexible, intuitive, and reliable. As Qolsys says, "There's never been a better time to get connected."

• Manufacturer Part #: IQPK048
• Platform: Android 9
• Processor: Qualcomm Snapdragon 8 core SOM (System on a Module)
• Flash Memory: Internal Storage, 16GB NAND Flash
• User Codes: Up to 242: Role based (Dealer, Installer, Master, User, Guest, Duress)
• Network:
• Wi-Fi: Wi-Fi 802.11 a/b/g/n/ac dual band 2.4/5GHz – including built-in router capability
• Cellular: LTE Category 4 (Bands 2/25, 4/66, 5, 7, 12/17, 13, 14 non-FirstNet, 26)
• Z-Wave 800: Supports up to 137 devices (80 lights, 20 Locks, 10 Thermostats, 6 Garage Doors, 21 Misc)
• PowerG: Up to 128 Devices/Zones (915 MHz Long Range Encrypted 2-Way Wireless)
• Bluetooth: Qualcomm Bluetooth Low Energy (BLE) 4.2
• LED Indicator:
• Power LED: Green (On)
• Status LED: RGB (Programmable)
• Speaker/Siren: Front-facing 2W speaker + 85dB piezo siren
• Battery: Rechargeable Lithium Ion 3000mAh Rated for over 24 hours
• Power Supply: 7v DC 1000mA CC, Input 100-240VAC 50/60Hz Adapter evaluated at 120vAC for UL/cUL
• Buttons: Single button for pairing and troubles / alarm in memory announcements
• Dimensions: 6.1" H x 7.5" W x 1" D (155mm x 191mm x 26mm)
• Temperature:
• Operational: 32°F to 120.2°F (0°C to 49°C)
• Storage: -4°F to 122°F (-20°C to 50°C)
• Humidity: up to 93% relative humidity indoors
• Mount: SmartMount for wall mounting included. SmartMount table stand sold separately
• Certifications:
• UL/cUL: UL-985, UL-1023, UL2610, ULC-S545, ULC-S304
• FCC: 2AAJXQS-IQP4Z (may contain additional modules with separate FCC IDs) 2AAJXQS-ZW8
• IC: 11205A-QSIQP4Z
• Warranty: 1-Year Limited
