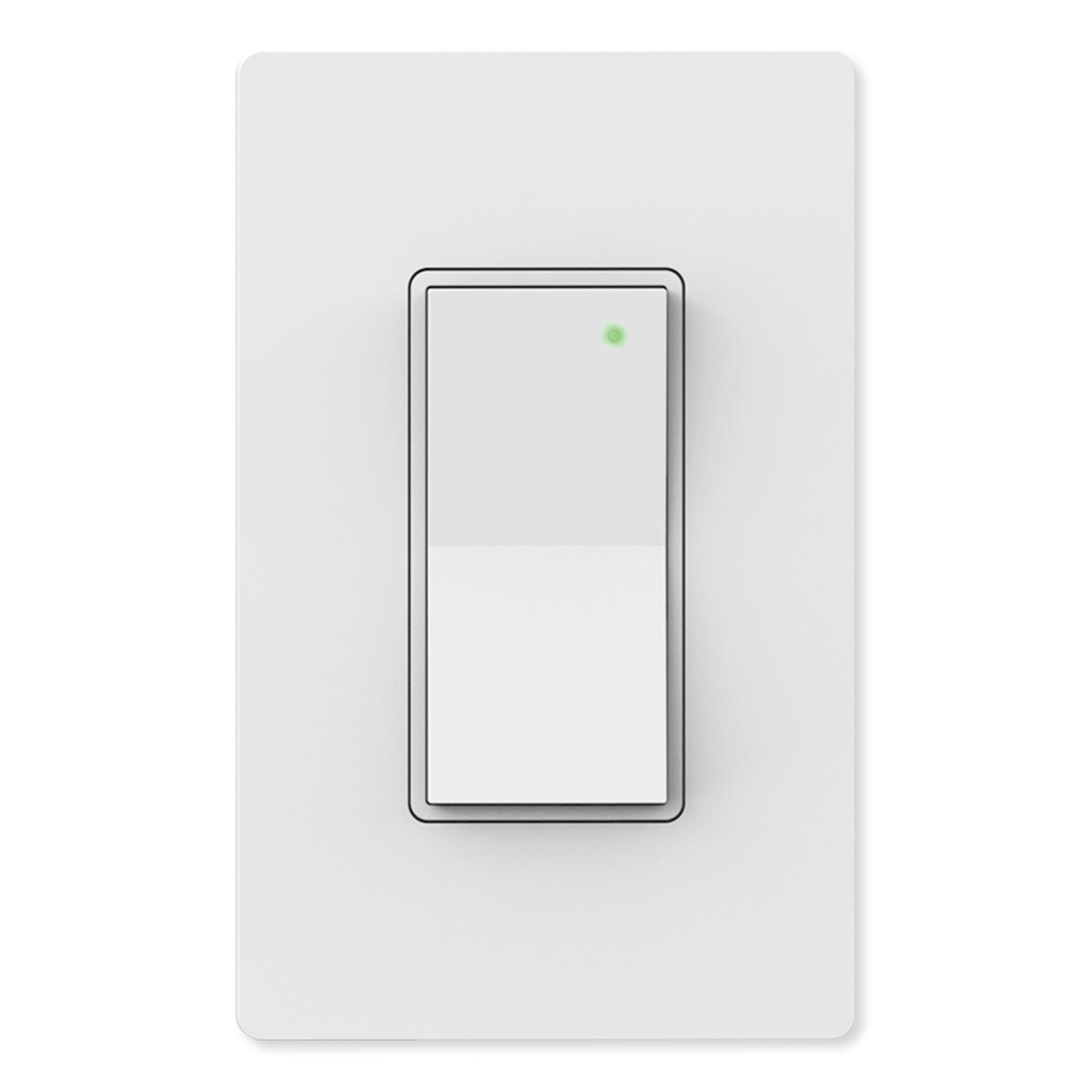

Qolsys IQ Power Switch PowerG

Add Control Over Lights and Small Devices to Your Qolsys Wireless System

Remotely control lights and small appliances through secure wireless connections with the Qolsys IQ Power Switch PowerG. This PowerG connected switch adds remote On/Off control over connected lighting or small appliance loads to provide convenient remote control as well as inclusion into your smart home network. The Switch controls connected lights with short or long presses of either button and issues different contextual commands depending on the On/Off status of connected lights. A built-in status LED displays the current light level of connected lights and can help you find the switch in the dark. The IQ Power Switch combines a sleek, modern aesthetic with reliable wireless technology to add intuitive smart lighting control to your home.

• PowerG connected switch controls lighting and small appliance loads with On/Off commands from the switch and connected controllers
• Supports control over incandescents up to 600W, CFLs/LEDs up to 300W, and resistive loads up to 5A
• Easily integrates into PowerG networks and sends/receives PowerG signals up to 2000 ft
• Integrate the switch into automated scenes or scheduled routines
• LEDs indicate device status and light levels
• Compatible with PowerG enabled IQ Panel 4, IQ4 Hub and IQ4 NS Panels running V4.4.1 and higher and IQ PRO panels running V4.3.0n and higher

Alarm.Com App

Every Qolsys security and automation system is monitored by Alarm.com and can be controlled remotely with your smartphone or tablet using the Alarm.com mobile app (Android, iOS, Windows, and Blackberry). Monitor and control your smart home in real-time and from anywhere to arm or disarm your security system, control individual devices, lock or unlock your smart doors, watch live video from your cameras, activate preprogrammed scenes or scheduled routines and much more!

Installation Details

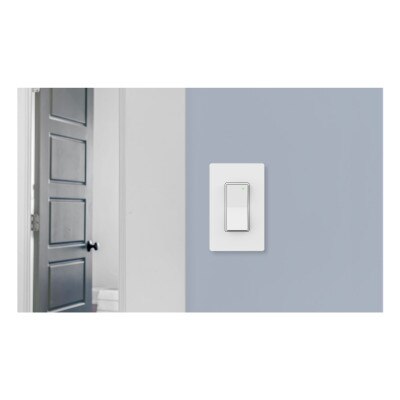

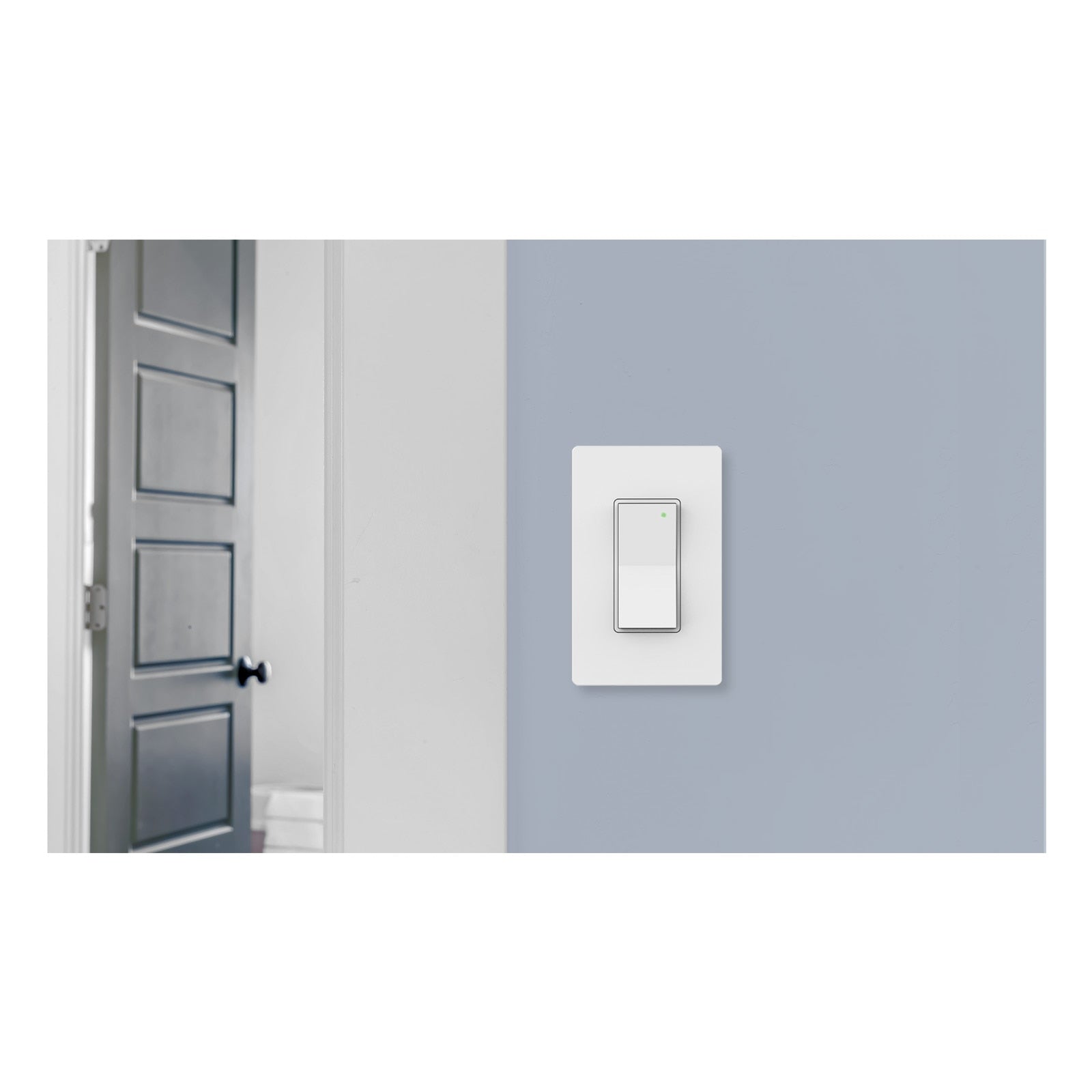

The Qolsys IQ Switch PowerG fits into a single-gang installation and replaces an existing switch. The Switch is not compatible with standard 3-way or 4-way switches. Easily add the switch into your Qolsys system through buttons inputs on the switch listed in the instructions or by scanning the QR code printed on the box label. Neutral wiring is required for installation.

Contents

• IQ Power Switch

Notes

• The IQSWH-PG is not compatible with standard 3-way or 4-way switches.
• The IQSWH-PG is designed for indoor use only.

Qolsys: All In One. Always Connected.

Founded in 2010 with the mission to improve lives through technology, Qolsys develops innovative life safety, security, and home control devices built to set a higher standard for the industry. Qolsys products are flexible, intuitive, and reliable. As Qolsys says, "There's never been a better time to get connected."

• Manufacturer Part #: IQSWH-PG
• EAN: 7290109985527
• Power Supply: 120V at 60Hz
• Standby Power Consumption: <1W
• Wiring: Direct wiring connection, wire gauge 16-10 AWG
• Maximum Noise: 24dB at 20cm
• Maximum Load: Incandescent 600W, CFL/LED 300W
• Max Current: 5A
• Protocol: PowerG
• Radio Frequency: 912-919 MHz
• Wireless Range: Up to 2000 ft line of sight
• Operation Temperature: 32°F to 104°F (0°C to 40°C)
• Storage Temperature: -4°F to 140°F (-20°C to 60°C)
• Humidity: 0 to 85%, non-condensing
• Weight: 0.25 lbs (116 grams)
• Color: White
• Warranty: 1-Year Limited
