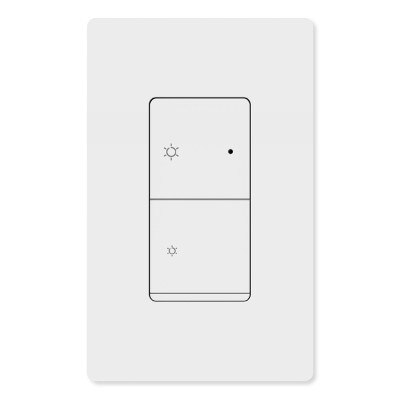

Qolsys IQ Dimmer Switch PowerG

Add Wireless RF Remote Control to Dimmable Lights

Upgrade your home lighting through wireless remote control with the IQDMR-PG Qolsys IQ Dimmer Switch PowerG. This PowerG connected dimmer switch replaces an standard existing wall switch to issue On/Off/Dim/Brighten commands over connected wired lights from the switch itself or from a controller of your Qolsys automation and security system. The Dimmer controls connected lights with short or long presses of either button and issues different contextual commands depending on the On/Off status or brightness level of connected lights. A built-in status LED displays the current light level of connected lights and can help you find the switch in the dark. The IQ Dimmer Switch combines a sleek, modern aesthetic with reliable wireless technology to add intuitive smart lighting control to your home.

• PowerG connected dimmer switch controls dimmable bulbs with On/Off/Dim/Brighten/Delay commands
• Compatible with dimmable incandescents up to 200W, and CFLs/LEDs 100W
• PowerG Wireless technology provides a secure and reliable connection with other smart home devices
• Integrate the dimmer switch into automated scenes or scheduled routines to create personalized lighting scenarios
• LEDs indicate device status and light levels
• Compatible with PowerG enabled IQ Panel 4, IQ4 Hub and IQ4 NS Panels running V4.4.1 and higher and IQ PRO panels running V4.3.0n and higher

Alarm.Com App

Every Qolsys security and automation system is monitored by Alarm.com and can be controlled remotely with your smartphone or tablet using the Alarm.com mobile app (Android, iOS, Windows, and Blackberry). Monitor and control your smart home in real-time and from anywhere to arm or disarm your security system, control individual devices, lock or unlock your smart doors, watch live video from your cameras, activate preprogrammed scenes or scheduled routines and much more!

Installation Details

The IQDMR-PG Qolsys IQ Dimmer Switch PowerG fits into a single-gang installation and replaces an existing switch. The IQ Dimmer-PG is not compatible with standard 3-way or 4-way switches. Easily add the dimmer switch into your Qolsys system through buttons inputs on the switch listed in the instructions or by scanning the QR code printed on the box label. Neutral wiring is required for installation.

Contents

• IQ Dimmer Switch

Notes

• The IQ Dimmer-PG is not compatible with standard 3-way or 4-way switches.
• The IQ Dimmer-PG is designed for indoor use only.
• The IQ Dimmer-PG can not be used for inductive loads.

Qolsys: All In One. Always Connected.

Founded in 2010 with the mission to improve lives through technology, Qolsys develops innovative life safety, security, and home control devices built to set a higher standard for the industry. Qolsys products are flexible, intuitive, and reliable. As Qolsys says, "There's never been a better time to get connected."

• Manufacturer Part #: IQDMR-PG
• EAN: 7290109985541
• Power Supply: 120V at 60Hz
• Standby Power Consumption: <1W
• Wiring: Terminal block connection, wire gauge 16-10 AWG
• Maximum Load: Incandescent 200W, CFL/LED 100W
• Max Current: 1.67A
• Protocol: PowerG
• Radio Frequency: 912-919 MHz
• Wireless Range: Up to 2000 ft line of sight
• Operation Temperature: 32°F to 104°F (0°C to 40°C)
• Storage Temperature: -4°F to 140°F (-20°C to 60°C)
• Humidity: 0 to 85%, non-condensing
• Weight: 0.3 lbs (137 grams)
• Color: White
• Warranty: 1-Year Limited

»Qolsys IQ PowerG Everywhere Spec Sheet (.pdf)
»Qolsys IQDMR-PG IQ Dimmer-PG Installation Manual (.pdf)
