Platinum Tools 10GIG Termination Kit

SKU: PL90170

Usually ships in 1-2 days.

$239.95

WARNING: Cancer and Reproductive Harm – www.P65Warnings.ca.gov

Details

Complete Kit For Terminating High Bandwidth Cables

When creating a home network with high bandwidth cables, bring along this turnkey field kit. The Platinum Tools 10GIG Termination Kit includes everything an installer needs to terminate the larger cables that today’s media-streaming homeowners require. Whether you’re working with data, audio or video signals, streaming media traffic through Cat6E, Cat6A, Cat7 and larger industrial Ethernet cables just got easier!

  • Ideal for creating bandwidth-intensive networks
  • Terminates larger cable to meet 10-Gig standards
  • Comes with 100 RJ45 Cat6A/10-Gig shielded connectors

Tele-TitanXg Crimp Tool

The gem of this kit is the Tele-TitanXg Crimp Tool, which is specially designed to terminate all pins of RJ45 Cat6A/10-Gig shielded connectors (100 included). The compact, rugged tool provides a straight action crimp at industry-specific crimp heights with minimal effort, and its built-in cable stripper facilitates precise stripping for round wire and flat satin. It also has a built-in cable cutter. When not in use, the crimp tool stays securely closed with a gun-style lock.

External Ground Crimp Tool

In addition to the Tele-TitanXg, the 10GIG Termination Kit includes an External Ground Crimp Tool used to perform concentric terminations. With full control to prevent over or under crimping, you can easily achieve a 360-degree crimp on the external ground tab of shielded RJ45 connectors.

The tool’s dual cavity supports cable ODs ranging from 0.245 to 0.335 inches (6.2 to 8.5mm). Its spring-loaded, non-ratcheted design with molded handles minimizes the hand force required to crimp.

Cyclops 2 Cable Jacket Stripper

Ready to use out of the kit, the lightweight Cyclops 2 Cable Jacket Stripper is used to remove the cable jacket from shielded/unshielded twisted pair and fiber optic cables. The stripper accepts cable ODs ranging from 0.10 to 0.43 inches (2.5 to 11mm), and self-adjusts to automatically score PVC and Plenum without damaging the foils, braids or conductors.

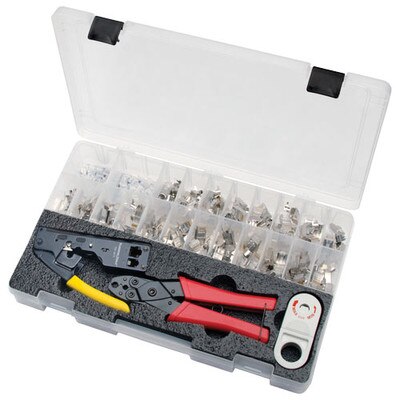

Kit Includes

  • Tele-TitanXg Cat6A/10-Gig Crimp Tool (12515C)
  • External Ground Crimp Tool (12360C)
  • Cyclops 2 Cable Jacket Stripper (15010C)
  • RJ45 Cat6A/10-Gig Shielded Connectors w/Liners – 100 each (106190)
  • Instructions

Platinum Tools Makes Connections Easy!

Platinum Tools, founded in 1997, was created based upon two very simple objectives. First, develop and source the absolute best possible solutions for the preparation, installation and hand termination of wire and cable. Second, implement an operational infrastructure that can deliver these products in an efficient, timely and high quality manner. All of our products absolutely must satisfy three critical benchmark criteria – Utility of function, Quality of function, and Economic value.

Specifications

External Ground Crimp Tool

  • Materials: Steel frame, black oxide finish

RJ45 Cat6A/10-Gig Shielded Connectors

  • Max. Cable OD: 8.5mm (0.335 inches)
  • Max. Conductor OD: 1.35mm (0.053 inches)
  • Approvals: UL and RoHS compliant; Exceeds 10-Gig performance standard.
