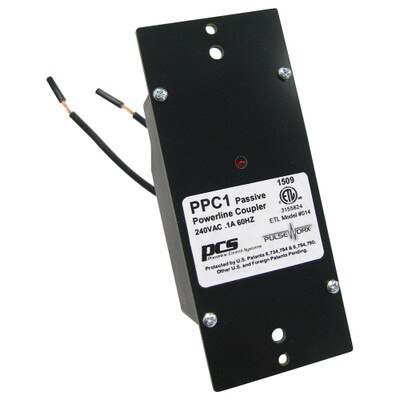

PCS PulseWorx UPB Wired-In Passive Phase Coupler

SKU: PCPPC1

Order now and we'll ship same business day (if ordered before 3 pm PST).

$66.95

WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov

Details

Send UPB Signals Through a Split-Phase System

Enhanced over the original model, this PCS PulseWorx UPB Wired-In Passive Phase Coupler, re-released in 2016, offers a simpler installation process to help you transmit UPB commands from one electrical phase (leg) to the other more easily than ever. The coupler is designed for use in a home with a 120V/240V split-phase electrical system. It installs in a junction box and wires into two phases (circuits) of the circuit breaker panel. This upgraded model features four main improvements over the original model:

  • Same size as wall switch models RWS, WS1DL-6, WS1R-15 to match
  • Fits in a single-gang box just like a wall switch dimmer
  • No longer requires junction box knockout
  • Offers convenient mounting points for secure installation

NOTE: This model does not amplify signals. To use a phase coupler with a built-in amplifier, alternatively purchase model SPR-1.

UPB PulseWorx Lighting Control System

An integral part of a complete PulseWorx Lighting Control System, this device uses the patented UPB powerline communication technology (invented by PCS) to reliably communicate with any other UPB-compatible devices over the existing house electrical wires. No new wires are necessary, thus making PulseWorx perfect for retrofit situations. When initial configuration is complete, a single push of a button is all you need to activate any group of lights (or virtually anything else that connects to AC power wiring) throughout the house simultaneously.

Specifications

Technical Details

  • Manufacturer Part #: PPC-1
  • Warranty: 5 Years
  • US Patent No.: 6,734,784; 6,784,790; 7,265,654; 7,688,183. U.S. and foreign patents may be pending.

Electrical

  • Power Requirements: 120V/240V AC 50Hz/60Hz
  • Connections/Power Wire:
    • Two 16 AWG gauge 105°C insulation
    • Wire Phase to Phase
  • Standby Power Consumption: 0.8 Watts
  • Environmental Conditions: Indoor Use Only or water-proof enclosure next to circuit breaker panel
  • Operating Temperature: -40° to 194°F (-40° to 90°C)
  • Operating Humidity: 10 to 90 percent RH (non-condensing)
  • Certifications: Safety tested for USA and Canada to ETL tested to UL508 UL-508-2010 CSA C22.2 #14-2010

Operation

  • Status LED Modes: Non-programmable
  • LED Indicators: Red LED (Power)
  • IR Receiver: No
  • During Power Outage: Power-Off
  • Setup Mode: None required

Mechanical

  • Color: Black
  • Program Button Type: None
  • Mounting: Wired
  • Dimensions: 4.25(H) x 1.68(W) x 1.37(D) inches
  • Weight: 7 ounces

Wiring Diagram
