PCS PulseWorx UPB Door Bell Module


Usually ships in 1-2 days.


WARNING: Cancer and Reproductive Harm – www.P65Warnings.ca.gov


Great For Hearing Impaired

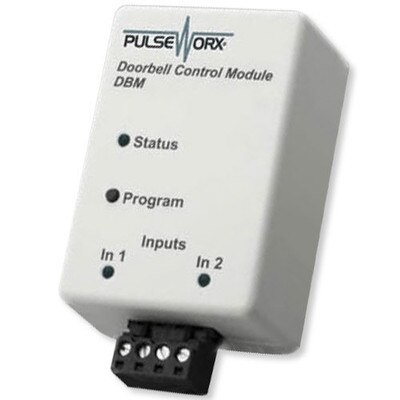

The DBM Doorbell Ring Interface Module is a small plug-in device designed to sense the current of a doorbell ring to trigger the transmission of digital commands onto the existing powerlines.

Send any UPB link command to turn on or off (or blink) any light or group of lights upon the ringing of a doorbell. Great for the hearing impaired!


Simply plug the DBM into any standard wall outlet and wire the device to one or more doorbell circuits. The Doorbell Ring Interface Module provides two independent channels of doorbell ring sensing inputs to activate single lights, trigger dramatic scenes, or send messages to a central controller. The DBM can be configured to send any UPB link command to turn on or off or blink a light or group of lights upon a doorbell ring.

Senses Front and Back Doorbells Independently

Each input is completely independent of the other. An easy-to-wire four terminal connector enables terminating up to two separate off-the-shelf doorbell circuits from as far away as 1000 feet.

Transmits to the Powerline

Each input can be programmed to transmit on the powerline – activate or deactivate any link when it senses the doorbell ring.

Sensing Disabled

Each input sensing channel can be temporarily suspended when the DBM receives a specific UPB Activate command. It can then be unsuspended upon receiving a specific UPB Deactivate command. This is very useful for setting up a keypad pushbutton to suspend an input at special times that you don't want the "normal" sensing to occur.

Easy To Configure

Like all PulseWorx devices, the DBM can be initially configured using PCS's free UPStart Setup Software tool. UPStart enables configuring such parameters as Network Name, Network ID, Unit ID, Room name, Device name, default on light levels, fade rates, LED colors, dimming disable, auto shut-off time, etc. as well as test the operation and communication strength of the device. UPStart has the option to configure an entire network off-line and then download the information into the devices after they are installed in the home.

UPB PulseWorx Lighting Control System

An integral part of a complete PulseWorx Lighting Control System, this device uses the patented UPB powerline communication technology (invented by PCS) to reliably communicate with any other UPB-compatible devices over the existing house electrical wires. No new wires are necessary, thus making PulseWorx perfect for retrofit situations. When initial configuration is complete, a single push of a button is all you need to activate any group of lights (or virtually anything else that connects to AC power wiring) throughout the house simultaneously.


  • Manufacturer Part #: DBM

UPStart UPB Software

This Windows-based application, along with a UPB Powerline Interface Module (PIM), allows you to program, configure and test your UPB smart home automation system. »Free download here
