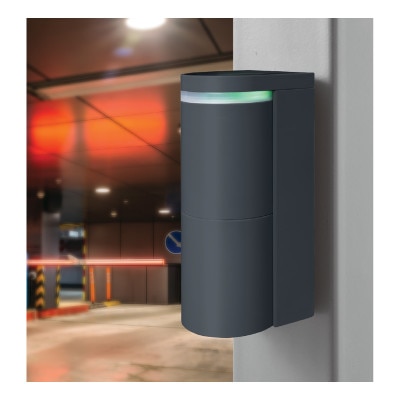

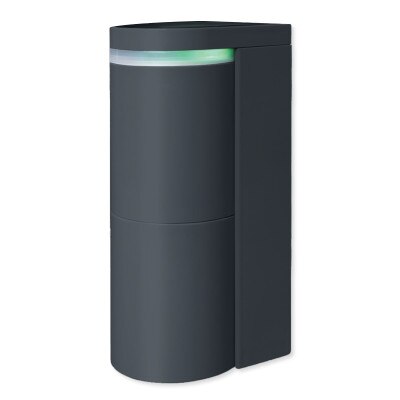

Optex 26' Range Virtual Loop 2.0 Vehicle Presence Sensor

Installs Above The Ground With No Underground Wiring

Easily detect and manage access for vehicles entering or exiting your property with the Optex Virtual Loop 2.0 Vehicle Presence Sensor, 26 FT Range. This vehicle presence sensor has the ability to ignore nearly all human movement all while detecting vehicles of all sizes from small cars to large trucks. It uses FMCW (Frequency-Modulated Continuous-Wave) detection technology and communicates via Microwave 2.4GHz and BLE communication (2.4 GHz frequency). What makes this vehicle detector unique from other standard vehicle detector units is it installs above the ground, which eliminates the hassles associated with installing a ground loop. You won't have to worry about costly and time-consuming construction work such as cutting concrete, drilling, or coring. You'll not only save time and money, but also minimize disruption to your property. Plus, this vehicle presence sensor is water resistant and durable in all weather conditions, performing well in rain, snow, and extreme temperatures.

• Detects moving or stationary vehicles and uses Microwave FMCW detection technology
• Ignores human movement and can detect all types of vehicles
• Long detection range of 18 to 26 feet with wide angle adjustment (96 degrees)
• Installs above ground (2 outputs) with no ground loop necessary for installation
• Settings via free Optex Virtual Loop smartphone app (Android or iOS)

Contents

• Virtual Loop 2.0 Vehicle Presence Sensor
• Attachment Screws
• Quick Reference Guide

Optex: The Quality Products People Expect

Optex specializes in passive and active infrared technology, control systems and CCTV products for home and business security. Since its founding in 1979, Optex has established a world-wide reputation for quality, innovation and technical excellence. Their products always represent an investment in performance and long-term satisfaction.

• Manufacturer Part #: OVS-02GT
• UPC: 788924092478
• Detection Method: Microwave (FMCW)
• Frequency: Microwave: 24GHz, BLE communication: 2.4GHz
• Response: MIN 500ms
• Supply Voltage: 12 to 24 VAC/DC
• Power Consumption: Heater enabled: Up to 300mA, Heater disabled: Up to 90mA (at 24V)
• Output:
• Spec: 1 – Non-voltage solid state relay output 30VDC 0.3A or less (resistance load) (N.O./N.C.)
• Spec: 2 – Non-voltage mechanical relay output 30VDC 1A or less (resistance load) (N.O./N.C.)
• Delay: Off / 0.5 / 1 / 2 / 3 / 4
• Hold Time: Off / 0.5 / 1 / 2 / 3 / 10 / 30 / 60
• Mode: Detection / Pre-detection / Mask
• Type: Holding / Pulse IN / Pulse OUT
• Pulse Time Duration: 150ms / 250ms / 500ms / 1s
• Input:
• Spec: N.O. contact Non-voltage relay Input, On resistance 100Ω or less, Off resistance 200kΩ or more, Internal pull-up voltage: approx 3.3V
• Mode: Link (OR gate) / Link (AND gate) / Inhibit / Wake
• Application: Barrier – Activation, Protection / Slide gate – Activation, Protection / Swing gate – Activation, Protection, Shadow
• Detectable Vehicle Speed: 1.2 to 22 miles/h (2 to 35km/h)

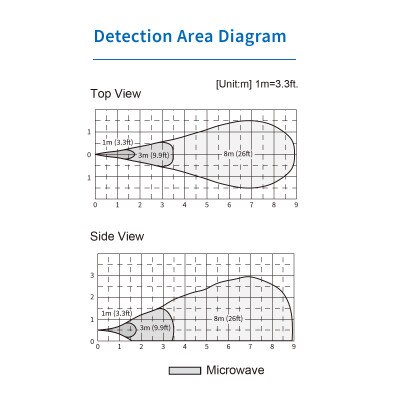

• Detection Range: 7ft (1.5m) to 26ft (8m) 20 inch (0.5m) pitch
• Main Sensitivity: Level 1 to 7
• Fine Tuning Presence: Level 1 to 7
• Close Range Sensitivity: Level 1 to 7
• Side Approach Detection: Off / On (2.5s)
• Vibration Sensitivity: Off / Low / Middle / High
• Sensitivity Boost: Off / Low / Middle / High
• Sensitivity Boost Timer: Off / 0.5 / 1 / 2 / 3 / 4 / 5 / 10 / 20 / 40
• Relay Response Time: Level 1 to 4
• Presence Detection Timer: 5 / 15 / 60 / 180 / Infinity
• Slide Gate Cancellation: Off / On
• Off / On: Switchable (with smartphone App or by holding a magnet close to the unit)
• Standard Operation Mode:
• Detection Operation: Standby: Solid green, Detected: Solid red, Bad environment: Solid purple, Calibration incomplete: Solid blue
• Wake Up: Wake up: Solid blue for 3 seconds
• Sensor Reset: Completed reset: Blinking blue (fast) for 2 seconds
• Smart Phone App Connection Mode:
• Setting Detection Operation: Standby: Blinking green (slow), Detected: Blinking yellow (slow), Bad environment: Blinking purple (slow), Calibration incomplete: Blinking blue (slow)
• Area Check: Standby: Blinking green (slow), Pre-detected: Blinking yellow (slow), Detected: Blinking red (slow)
• Calibration: In progress: Blinking blue & green, Error unstable: Blinking red & yellow (fast), Error high reflection: Blinking red & blue (fast), High reflection: Blinking purple (for 10s)
• Ambient Temperature: -22 to 122°F (-30 to 50°C)
• Operating Ambient Humidity: 95% max (no condensation)
• Degree of Protection: IP66 / NEMA4
• Installation Location: Indoor / Outdoor
• Installation Height: 20in (500mm) from the road surface to the bottom of the unit
• Sensor angle Adjustment: Left and right: ±96° (3° pitch)
• Weight: 21oz (600g) including accessories

»Optex OVS-02GT Virtual Loop 2.0 Spec Sheet (.pdf)
