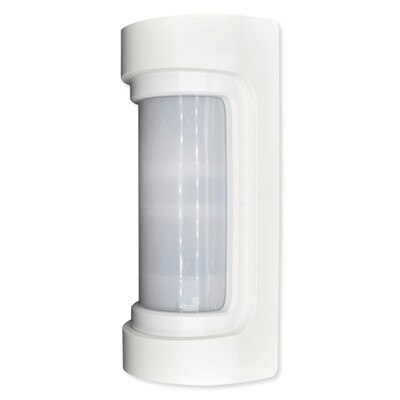

Optex VX Shield 90-Degree Wide Angle Outdoor Detector

SKU: OPVXSxxAM

Please Select Option To View Availability

$154.17 to $181.94

WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov

Details

90° Wide Angle Outdoor Detection Coverage

The Optex VX Shield 90° Wide Angle Outdoor Detector provides versatile and reliable outdoor motion detection of wide areas of your property. It features anti-masking functionality, digital triple layer detection, and SMDA Logic technology to account for climate changes and wind-swept vegetation to further refine movement detection capabilities in any outdoor environment.

  • 90° wide angle detection with animal tolerance
  • Active infrared anti-masking functionality
  • 40 feet wide angle with triple layer detection area
  • SMDA Logic: differentiates between false alarms & genuine intrusions
  • Shield housing with IP55 protection and UV resistant ASA body

Digital Triple Layer Detection

An alarm will be generated when the upper and lower PIR detection areas and MW detection area are simultaneously crossed. This technology prevents detection of smaller sized animals, such as dogs, to trigger the alarm.

Reliable Detection

  • SMDA Logic (Super Multidimensional Analysis) technology can differentiate between climate changes and vegetation sways and actual intrusions.
  • The IR digital anti-masking function helps detect when a covering object, such as tape, is on the lens surface.
  • 5 types of pre-cut area masking seals are included for setting various detection areas.

Contents

  • VX Shield 90° Wide Angle Outdoor Detector
  • Accessories
  • Manual

Optex: The Quality Products People Expect

Optex specializes in passive and active infrared technology, control systems and CCTV products for home and business security. Since its founding in 1979, Optex has established a world-wide reputation for quality, innovation and technical excellence. Their products always represent an investment in performance and long-term satisfaction.

Specifications

  • Manufacturer Part #:
    • VXS-AM: Hardwired
    • VXS-RAM: Wireless
  • Detection Method: Passive Infrared
  • PIR Coverage: 12 m (40 ft) 90° wide / 16 zones
  • PIR Distance Limit: 2.5 to 12 m (5 levels)
  • Detectable Speed: 0.3 to 2.0 m / s (1' to 6'7" / s)
  • Sensitivity: 2.0 °C ( 3.6 °F) at 0.6 m / s
  • Power Input:
    • VXS-AM: 9.5 to 18 V DC
    • VXS-RAM: 3 to 9 V DC Lithium or Alkaline Battery
  • Current Draw:
    • VXS-AM: 24 mA max. at 12 V DC
    • VXS-RAM: 10 µ A standby / 4 mA max. at 3 V DC
  • Alarm Period: 2.0 ± 0.1 sec.
  • Warm-Up Period: 60 sec. or less (LED blinks)
  • Alarm Output:
    • VXS-AM: N.C. / N.O. Selectable 28 V DC 0.1 A max.
    • VXS-RAM: N.C. / N.O. Selectable-Solid State Switch 10 V DC 0.01 A max.
  • Trouble Output:
    • VXS-AM: N.C. 28 V DC 0.1 A max.
    • VXS-RAM: N.C. / N.O. Selectable-Solid State Switch 10 V DC 0.01 A max.
  • Tamper Output:
    • VXS-AM: N.C. 28VDC 0.1 mA max. open when cover unit, main unit or mounting plate is removed
    • VXS-RAM: N.C. / N.O. Selectable-Solid State Switch 10 V DC 0.01 A max.
  • LED Indicator: Red LED
    • 1. Warm-up
    • 2. Alarm
    • 3. Masking detection DIP switch ON or Walk test
  • Operation Temperature: -4°F to +140°F (-20°C to +60°C)
  • Environment Humidity: 95% max.
  • International Protection: IP 55
  • Mounting Height/Weight: 0.8 to 1.2 m (2'7" to 4')
  • Weight:
    • VXS-AM: 400 g (14.1 oz.)
    • VXS-RAM: 500 g (17.6 oz.)
  • Accessories:
    • VXS-AM: Screw (4 x 20 mm) x 2, Masking seal x 3
    • VXS-RAM: Connector for POWER and ALARM, Connector for TROUBLE, Velcro tape, Screw (4 x 20 mm) x 2, Masking seal x 3
