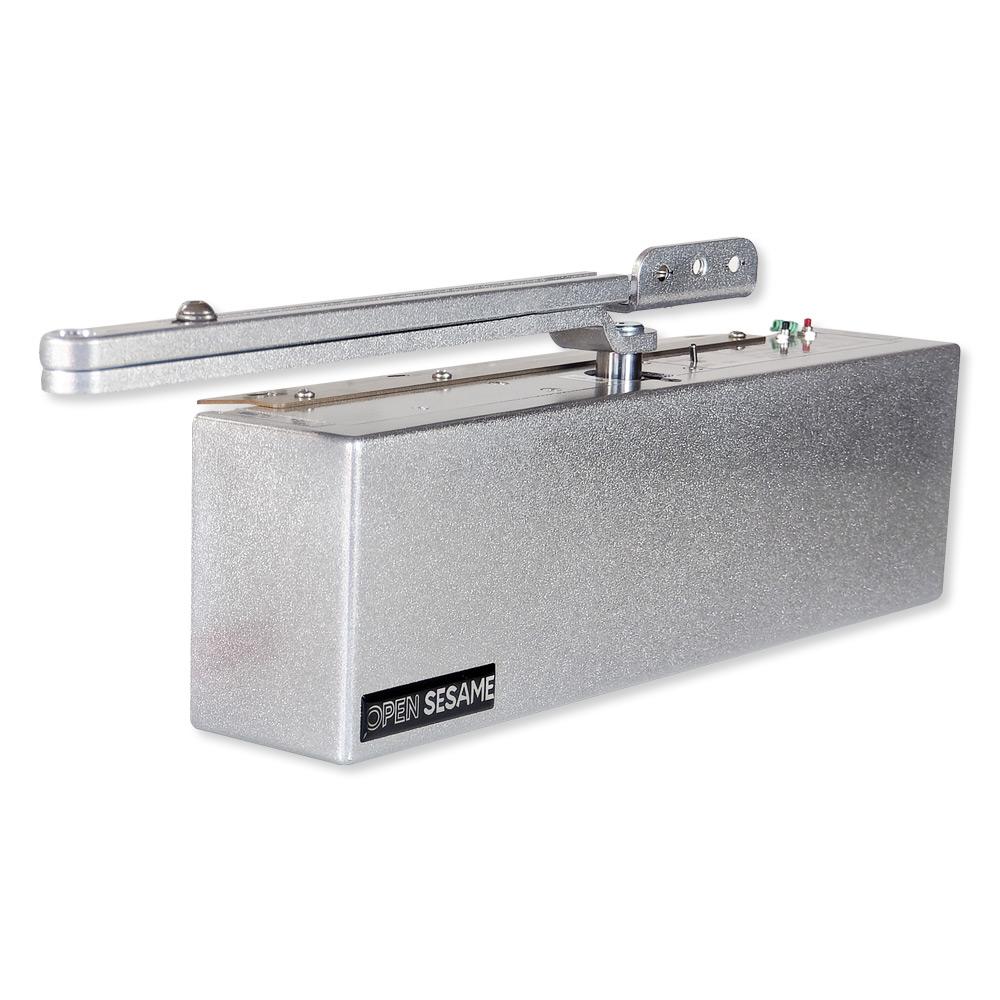

Open Sesame Automatic Door Opener Kit

SKU: OSRSPD

Order now and we'll ship same business day (if ordered before 3 pm PST).

NOTE: This is a heavy/dimensional part; it is not eligible for free shipping.

$2,200.00

WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov

Details

Easily Open & Close Doors

Easily gain access to your home with the Open Sesame automatic residential door opener system. The system allows you to lock, open, close and lock your front door – all automatically with a wireless remote control. The system accommodates people with most types of disabilities, giving you completely independence in your own home.

The Open Sesame system will release and open a locked (or unlocked) door, pause for entrance or exit, close automatically, and then return the door to its locked position. Each Open Sesame automatic residential door opener system comes standard with a remote control that can be either handheld or easily mounted on a wheelchair. This high-powered automatic home door device can activate the door system from anywhere in the home, and can be activated with fingers, palm, the side of the hand and more. You can also operate the door manually.

If you would like to extend the time the door is open, you can do so by pushing the remote control again. The door will stay open as long as you like. To close the door, simply push the remote once again.

Easy Installation

This low-voltage system can be installed in just a few hours, without hiring an electrician. The system includes a basic 24-volt AC power adapter that plugs into a standard outlet, up to 30 feet away.

The Open Sesame automatic residential door opener system is battery powered. A power adapter constantly charges the internal battery. This means in the event of a power outage, you will still have full power use of your door for several hours.

Works On Any Door

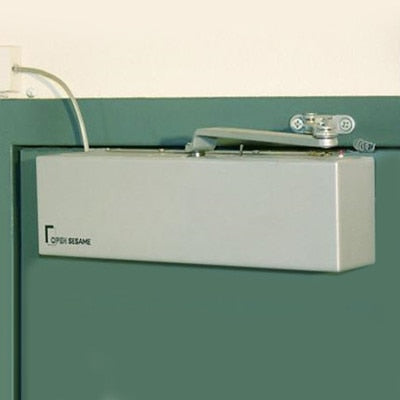

The Open Sesame Door Opener System operator is built to support your home's exterior doors. It is adaptable to many different door arrangements: it can be configured to operate with either left-handed or right-handed hinged doors, or outward opening or inward opening doors. Because of the versatility of the Open Sesame Door Opener System, you can even take the unit with you if you relocate (only minor adaptations may be necessary).

Top-Quality System

Each Open Sesame door opener is assembled by hand by an individual craftsman. After assembly, the automatic residential door opener is inspected and thoroughly tested as a complete working system. Open Sesame uses the highest quality materials available: permanently lubricated steel gears, steel housing, and commercial grade door release hardware. No plastic parts are used!

Expansion Options

The Open Sesame Door Opener System can be customized with a wide range of activation devices, including handheld or keychain remotes, wall push pads, keypads and other environmental controls.


Available Color: Silver
(Off-White and Bronze are available by special order, at no additional cost)

Contents:

  • Open Sesame Door Operator (Model 133; includes Battery Backup and Radio Receiver)
  • Standard remote control
  • Electric Strike Plate (Adams Rite 7440)
  • Low-voltage wiring kit (Plug-in power adapter with 30' cord and surface mount RJ-11 phone jack)
  • Mounting hardware and screws

NOTE: The current Open Sesame automatic residential door opener system communicates on a wireless 433MHz frequency (previous models used 390MHz or 315MHz frequencies). If you are purchasing a new system, then all your devices will work together. However, if you are expanding an existing system, please let us know the frequency so we can get you the right accessory.

Complete Independence with Open Sesame

Open Sesame door openers provide an ideal way to create automated doors. Designed to deliver complete remote operation, Open Sesame handicap residential door opener systems can unlock the door and open it, pause the door so you can pass through, and then close the door behind you. Your door opening wishes are Open Sesame's command.

Specifications

It is strongly recommended that you continue to carry keys to your home in the event of an unexpected failure in some part of the Open Sesame Door System.

  • Operator: 16-24 VAC/DC
  • Wall Transformer:
    • Input: 115 VAC, 60 Hz
    • Output: 24 VAC, 20 VA
  • Battery: 12V DC, 1.2Ah sealed lead-acid battery
  • Motor: 12V DC, 1.5A
  • Clutch: 12V DC, 0.5A
  • Supply for Unlatching Device: 12V DC, 1A
  • Radio Receiver: Up to 1 Billion Security Code Combinations (Programmable)
  • Dimensions: 2-5/8" x 4" x 14-1/8" (Suitable for mounting with perpendicular wall close to door frame.)
  • Weight: 10 Lbs.
  • Material/Finish: Steel housing Powder coated finish

Important note: Some doors manufactured by door and window companies have proprietary three-point locking systems, with upper and lower latches (or pins) as well as a latch on the side of the door. For these doors, the upper and lower pins will have to be retracted or removed. The latch on the side of the door should be a standard cylindrical door latch in order to facilitate automatic release via an electric strike. We suggest lightly modified mounting positions of both the door operator and arm in order to create greater forces needed to open and close the door through the tight weather seals.
