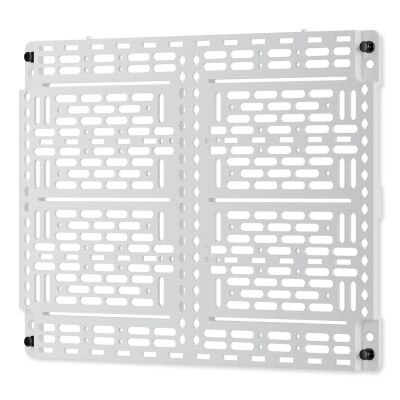

On-Q/Legrand Universal Mounting Plate

Support Various Devices in Your Media Enclosure

Safely support devices in your media cabinet with the Legrand Structured Wiring Enclosure with the On-Q Universal Mounting Plate. This mounting plate will extend the mounting flexibility of your structured wiring enclosure by providing the ideal vented and stable surface for mounting heavy/tall devices that typically need extra support such as ISPs, connected hubs, modem routers and more. It can be installed vertically or horizontally and its ABS plastic construction ensures Wi-Fi transparency for all wireless connected home devices within the structured wiring enclosure.

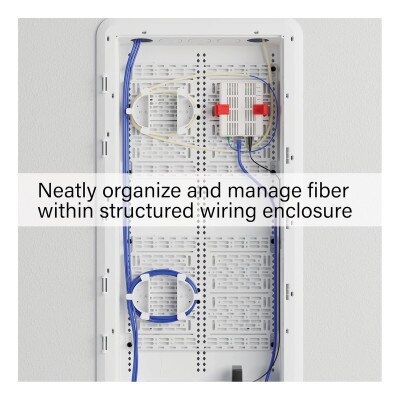

• Adds mounting location for devices in structured wiring enclosures

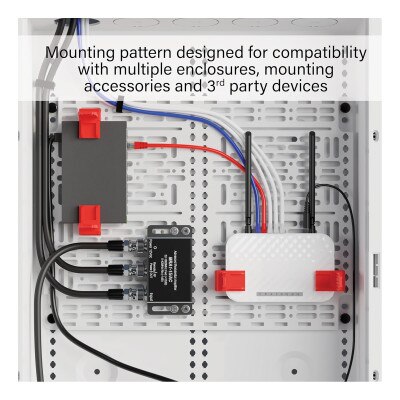

• Ideal for supporting tall/heavy devices such as ISPs, connected hubs, modem routers and more
• Screw holes are evenly spaced out on a 1" square pattern and can be utilized for threading cables or affixing devices
• Can be installed in horizontal or vertical orientation
• Plastic design minimizes Wi-Fi interference for nearby wireless devices

The On-Q/Legrand Shelf Mounting Bracket is constructed with a unique hole pattern, allowing for various options to secure devices. Plus, included are 2 pairs of plunger/grommets for securing the bracket in the enclosure as well as a 3 ft hook and loop strap for strapping in devices for added support. This bracket can hold up to 10 pounds and is only compatible with Legrand plastic structured wiring enclosures.

Installation Details

Secure the Universal Mounting Plate to your wiring enclosure board using the included plungers, or with screws to any other surface for general mounting.

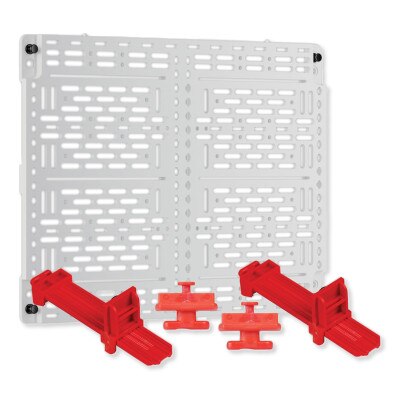

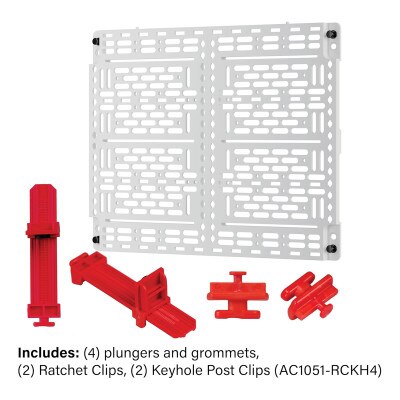

Contents

• Mounting Plate
• (4) Grommets
• (4) Plungers
• (2) Keyhole Clips
• (2) Ratchet Clips
• (2) Metal Enclosure Mounting Adapters

Start With A Strong Foundation

From innovative enclosures to high-performance connection outlets, On-Q products guarantee a smooth installation. Your home is a refuge from the world, a sanctuary from the elements, a place you can relax in comfort. Maximize your home living experience with innovative solutions from On-Q/Legrand. Let your family enjoy the convenience they want with the added peace-of-mind they need. On-Q/Legrand is changing the definition of home living.

• Manufacturer Part #: AC1040F
• UPC: 804428435143
• Material: ABS Plastic
• Color: White
• Weight: 0.59 lb
• Dimensions: 15.8 L x 12.0 H x 0.89 D inches (401.4 x 305.1 x 22.7 mm)

»On-Q AC1040F Universal Mounting Plate Kit Spec Sheet (.pdf)
