On-Q/Legrand Dual-Purpose In-Wall Enclosure with 5-in Mounting Plate, 17"

Protect and Conceal Crucial Cables or Components

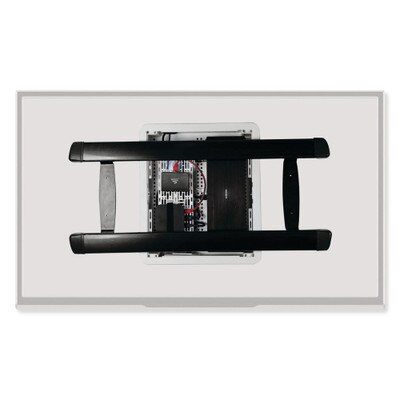

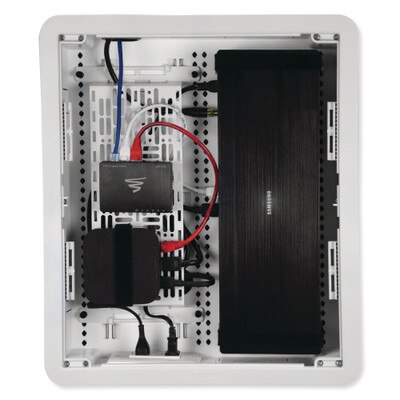

The On-Q/Legrand 17-in Dual-Purpose In-Wall Enclosure is engineered to provide storage of structured wiring and AV components. The ENP1705-NA-V1 is constructed of Wi-Fi transparent material to manage wireless components and AV devices at point-of-use locations, like directly behind a TV or other media centers. It can also be used for structured wiring purposes, as smaller-sized options in the existing line of On-Q enhanced structured wiring enclosures. The ENP1705-NA-V1 is compatible with devices like Apple TV, Roku, Amazon Fire TV, network switches, 3rd party structured wiring components and more. Includes a 5-in elevated mounting plate, cover, trim ring and drywall clips, allowing for both new construction and retrofit installations.

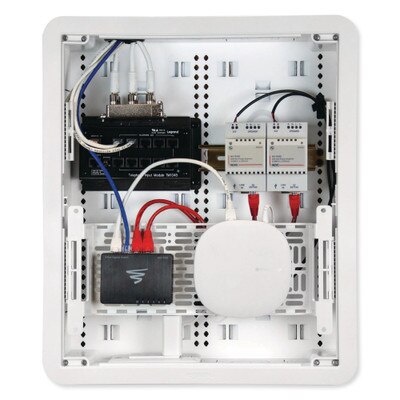

• Designed for in-wall storage and distribution of structured wiring and AV components

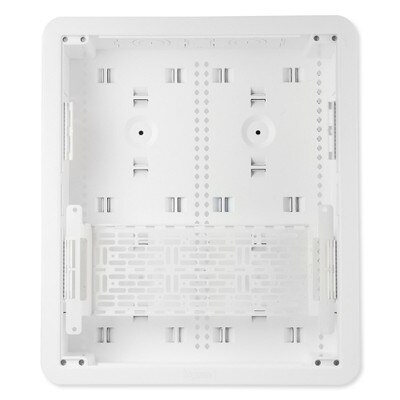

• Includes removable mounting plate that features 1.5-in of elevation to accommodate larger devices and frees up space in the enclosure

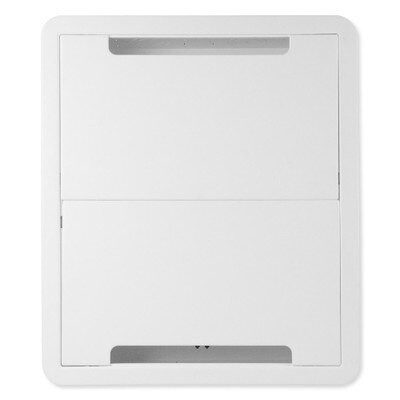

• Tool-free cover is low profile and designed to snap into place providing a "flush" appearance to wall surface

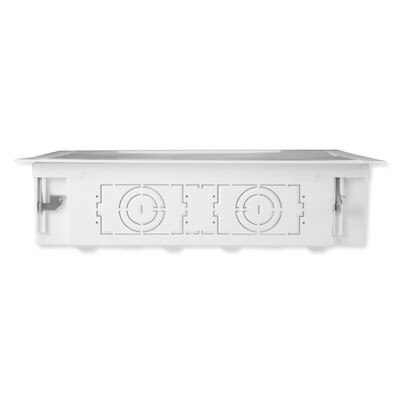

• Features (2) AC knockouts to accommodate a single gang junction box to power devices in enclosure and a cable passthrough cover for outside cable connections
• Universal mounting grid maximizes compatibility with 3rd party devices without additional mounting brackets
• Features drywall clips to allow both retrofit and new construction installations
• UL Listed and constructed of Wi-Fi transparent ABS plastic to ensure uninterrupted performance of wireless devices

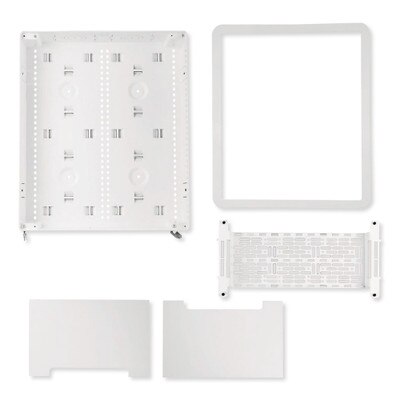

Contents

• In-Wall Enclosure
• Cover
• Elevated Mounting Plate
• Trim Ring
• Drywall Clips

Start With A Strong Foundation

From innovative enclosures to high-performance connection outlets, On-Q products guarantee a smooth installation. Your home is a refuge from the world, a sanctuary from the elements, a place you can relax in comfort. Maximize your home living experience with innovative solutions from On-Q/Legrand. Let your family enjoy the convenience they want with the added peace-of-mind they need. On-Q/Legrand is changing the definition of home living.

• Manufacturer Part #: ENP1705-NA-V1
• UPC: 804428434153
• Material: ABS Plastic
• Color: White
• Compatibility: Paintable with Rust-Oleum paint for plastic or equivalent
• Thickness: 0.1 in
• Frame: Injection-molded plastic
• Operating Temperature: 32° to 122° F (0° to 50° C)
• Operating Humidity (non-condensing): 0 to 93 percent
• Dimensions: 15.87 (W) x 18.52 (H) x 4.09 (D) inches (403 x 470 x 104 mm)
• Certifications: RoHS
