On-Q/Legrand Trio Combo Module, 6x8 with Cat5e Data


Order now and we'll ship same business day (if ordered before 3 pm PST).


WARNING: Cancer and Reproductive Harm –


Maximum Distribution In Minimal Space For Phone, Video & Data Networking

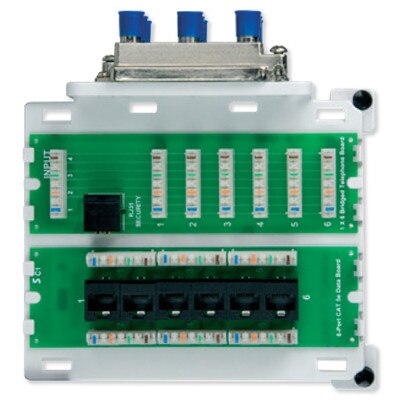

Set up phone, video, and data networking distribution in a small home or multi-dwelling unit (MDU) with the On-Q/Legrand Trio Combo Module, 6x8 with Cat5e Data. Featuring a compact design to maximize space within a structured wiring enclosure, the Trio Combo Module comes with an MDU Mounting Bracket, a 6-way phone module, an 8-way coax splitter, and a 6-Port Cat5e data board. This allows distribution of one phone line to six locations, one coax video signal (2 GHz) to eight locations, and up to six Ethernet drops using Cat5e cable. The phone module also features an RJ31X line seizure port for security applications.

  • Pre-configured structured wiring for a small home or MDU
  • Maximizes space within the enclosure due to its compact design
  • Distributes 1 phone line to 6 locations
  • Distributes 1 video signal (2 GHz) to 8 locations
  • Supports up to 6 Ethernet drops

Installation Details

The bracket mounts in the enclosure with slide mounting tabs on one side of the bracket and push-pins at the corners of the opposite side of the bracket. The 8-way coax splitter screws to the top of the mounting bracket and the 6-way phone module and 6-Port Cat5e data board snap directly into the mounting bracket (make sure each end snaps into place for a secure installation).


  • MDU Mounting Bracket (part # AC1042)
  • 6-Port Cat5e Data Board (part # AC0506)
  • 6-Way Phone Module (part # TM0106)
  • 8-Way Coax Splitter (part # VM0208)
  • (2) Self-Tapping Screws

Start With A Strong Foundation

From innovative enclosures to high-performance connection outlets, On-Q products guarantee a smooth installation. Your home is a refuge from the world, a sanctuary from the elements, a place you can relax in comfort. Maximize your home living experience with innovative solutions from On-Q/Legrand. Let your family enjoy the convenience they want with the added peace-of-mind they need. On-Q/Legrand is changing the definition of home living.


  • Manufacturer Part #: CO1156
  • Color: White
  • Cable Type: Cat5e, Coaxial
  • Number of Ports: 21
  • Material: ABS Plastic
  • Mounting:
    • Enclosure
    • Snap in modules
    • Screw down splitter
  • Operating Temperature: 32°F to 122° F (0° to 50° C)
  • Dimensions: 6.4(W) x 6.7(H) x 3.5(D) inches (163 x 169 x 88 mm)
  • Certifications: RoHS
