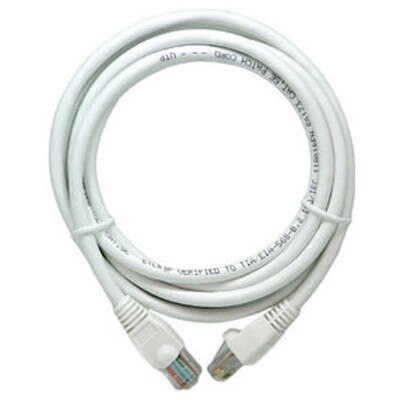

On-Q/Legrand Cat5 Patch Cable

Please select option to view availability

SKU: OQAC35xxWHV1
$3.55 - $10.75

WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov

Supports 10 Gigabit Ethernet Speeds

The On-Q/Legrand Cat5 Patch Cable is a 100MHz, 24 AWG stranded patch cable that supports 10 Gigabit Ethernet speeds and meets the Cat5e performance specification. The cable features a snagless overmold to prevent its insertion tab from catching onto nearby cables.

Start With A Strong Foundation

From innovative enclosures to high-performance connection outlets, On-Q products guarantee a smooth installation. Your home is a refuge from the world, a sanctuary from the elements, a place you can relax in comfort. Maximize your home living experience with innovative solutions from On-Q/Legrand. Let your family enjoy the convenience they want with the added peace-of-mind they need. On-Q/Legrand is changing the definition of home living.

Technical Details

  • Manufacturer Part #: AC35xx-WH-V1
  • Cable Type: Cat5e
  • Pair Count: 4
  • Color: White
  • Termination: Phosphor Bronze IDC blades, contact area plated with 50 micro-inches of hard gold over 100 micro-inches of Nickel
  • Housing Material: UL Listed 94V0 Flame-Retardant Polycarbonate (plug)
  • Input Plug Type: RJ45
  • Flammability Rating: UL 94V-0 (plug)
  • Material: Fire-retardant PVC compounds (cord)
  • Wire Gauge: 24 AWG
  • FCC Standard: Yes
  • Fed Spec Number: FCC Part 68 Subpart F
  • UN SPS C: 43223303
  • Warranty: 15 Year
