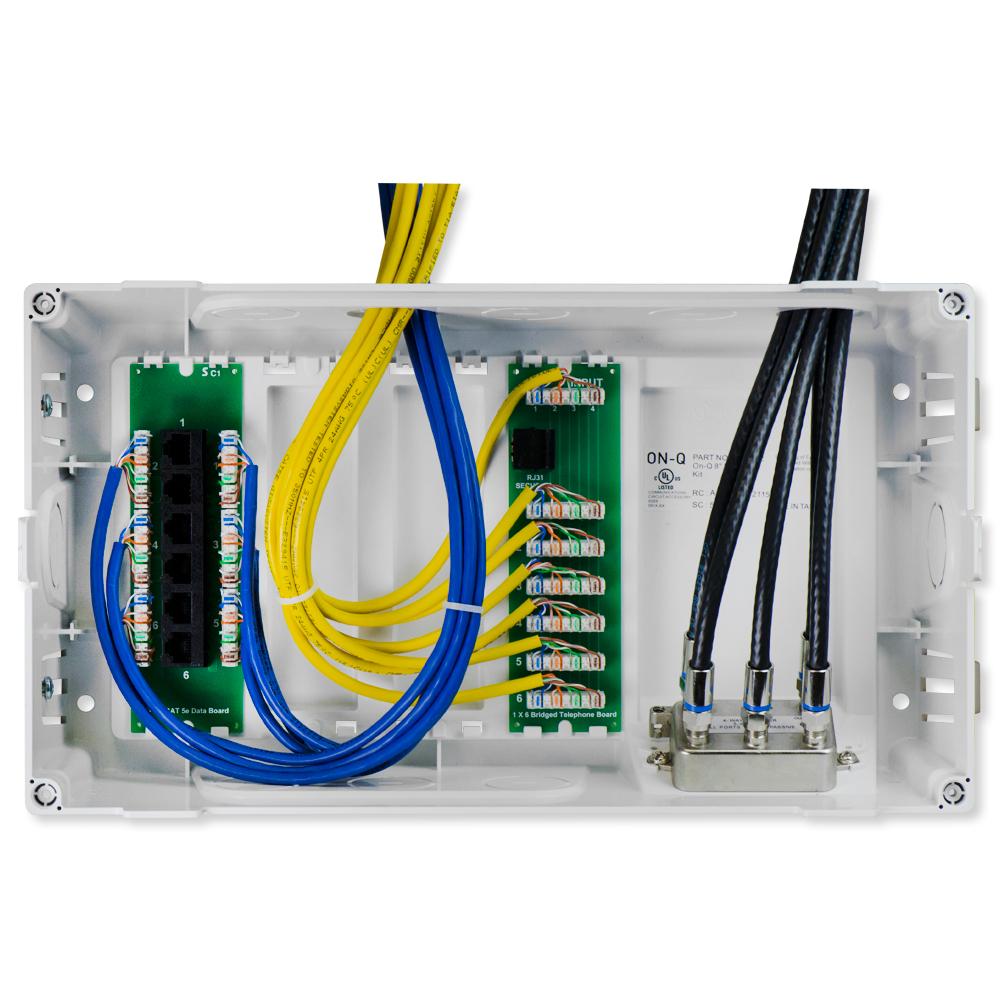

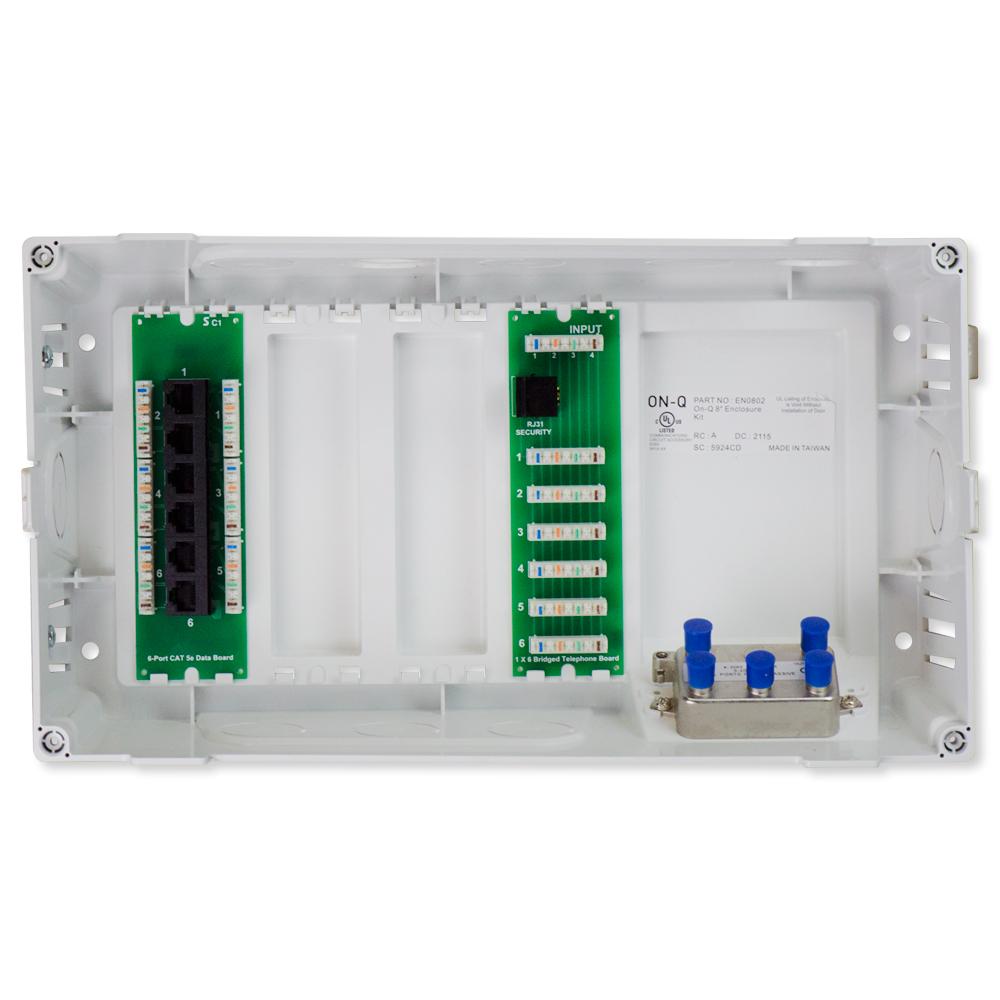

  • On-Q/Legrand 8 In. MDU Enclosure Kit with Cat5e Data Kit

    OQEN0803

    Notify me when this product is available:

    Complete Kit for Phone, Video, & Data Networking

    Quickly set up phone, video, and data networking distribution in a small home or multi-dwelling unit (MDU) with the On-Q/Legrand 8" MDU Enclosure Kit with Cat5e Data Kit. Designed for easy install and replication, the complete kit comes with a plastic, cost-effective structured wiring enclosure with a pre-installed 6-way phone module, 4-way coax splitter, and a 6-Port Cat5e data board. This allows distribution of one phone line to six locations, one coax video signal to four locations, and up to six Ethernet drops using Cat5e cable. The phone module also features an RJ31X line seizure port for security applications.

    • Pre-configured structured wiring for a small home or MDU
    • Distributes 1 phone line to 6 locations
    • Distributes 1 coax video signal to 4 locations
    • Supports up to 6 Ethernet drops
    • Enclosure either flush- or surface-mounts
    • Provides room

    Manufacturer Part #: EN0803

    MDU Enclosure (EN0800)

    • Color: White
    • Material: ABS molded plastic
    • Dimensions: 8.02(H) x 14.38(W) x 3.71(D) inches (203.7 x 365.2 x 94.2 mm)
    • Approvals: cULus Listed for communications equipment

    6-Port Cat5e Data Board (AC0506)

    • Cable Type: Full Duplex Gigabit
    • Number of Ports: 6
    • Connection Type: RJ45/IDC
    • Type: Low Voltage, Data Network Component
    • Special Features: Punch down style termination, 6-Port, RJ45 Data Ports
    • Humidity: 10% - 90% Relative Humidity (non-condensing)
    • Jack Connectors: Cat5e RJ45
    • Material: Plastic
    • Mounting: Custom MDU enclosure mountable
