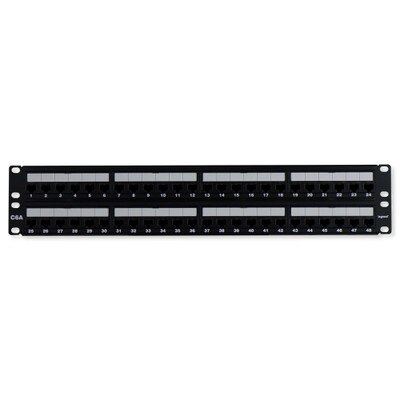

On-Q/Legrand 48-Port Cat6A Rack-Mount Patch Panel

SKU: OQWP486A

Usually ships in 3-5 days.

$342.78

WARNING: Cancer and Reproductive Harm – www.P65Warnings.ca.gov

Details

Fits Into A Standard 19-Inch Rack

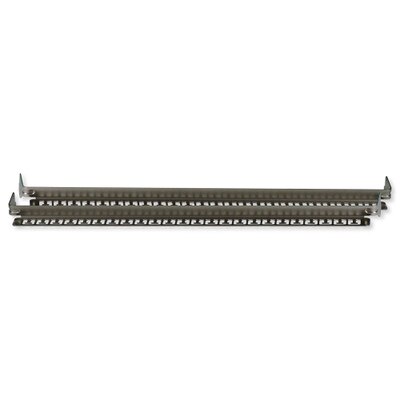

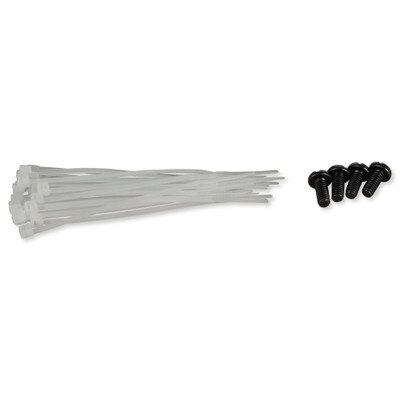

As the use of high definition content grows, so does the need for connectivity devices to support high bandwidth networks. The Cat6A Rack Mount Patch Panel is an ideal piece of equipment to help meet those needs. Designed for light commercial or residential installations, this patch panel supports 48 Cat6A network connections. The unit meets the TIA T568B.2-10 standard up to 500 MHz of bandwidth for supporting 10 Gigabit Ethernet network connections over copper. Plus, it offers an optional cable management bar for rear panel cable management, cable ties for strain relief, and front facing labels. When mounted in an enclosure, the patch panel occupies space for two units (2U).

Start With A Strong Foundation

From innovative enclosures to high-performance connection outlets, On-Q products guarantee a smooth installation. Your home is a refuge from the world, a sanctuary from the elements, a place you can relax in comfort. Maximize your home living experience with innovative solutions from On-Q/Legrand. Let your family enjoy the convenience they want with the added peace-of-mind they need. On-Q/Legrand is changing the definition of home living.

Specifications

  • Manufacturer Part #: WP486A
  • Cable Type: Cat6A
  • Color: Black

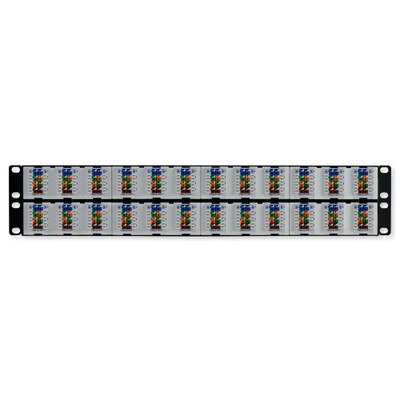

  • Output And Line Out Connection: 110 Punchdown T568A/B Universal Wiring
  • Type: Rackmount Patch Panel
  • Material: Plastic, Steel, Aluminum
  • Mounting: Rack
  • Product Fits Into: 19-inch rack
  • Number Of Ports: 48
  • Dimensions: 3.5(H) x 19(W) x 3(D) inches (88.90 x 480 x 80 cm)
  • Approvals: RoHS
  • Warranty: On-Q 25-Year System Warranty
