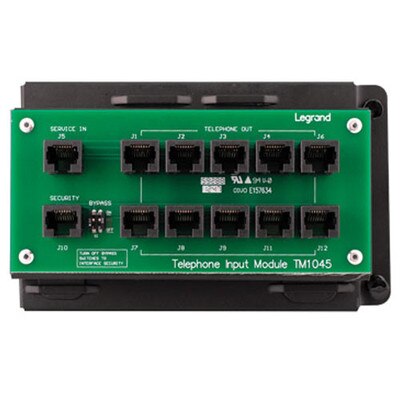

On-Q/Legrand 10-Way RJ45 Phone Module with RJ31X

Distributes 4 Telephone Lines To 10 Locations

Designed to provide basic telephone distribution, the On-Q/Legrand 10-Way RJ45 Telephone Module with RJ31X distributes up to four incoming telephone lines (RJ45) to 10 locations. An integrated RJ31X line seizure port supports security applications. The module mounts in a structured wiring enclosure with the included mounting bracket.

• Supports up to 10 locations
• RJ31X line seizure port for security
• Mounts in a structured wiring enclosure

Contents

• Telephone Module
• Mounting Bracket

Start With A Strong Foundation

From innovative enclosures to high-performance connection outlets, On-Q products guarantee a smooth installation. Your home is a refuge from the world, a sanctuary from the elements, a place you can relax in comfort. Maximize your home living experience with innovative solutions from On-Q/Legrand. Let your family enjoy the convenience they want with the added peace-of-mind they need. On-Q/Legrand is changing the definition of home living.

• Manufacturer Part #: TM1045
• Color: Black
• Connection Type: Phosphor Bronze contacts, plated Gold over Nickel
• Type: Telecom Module
• Input Plug Type: RJ45 Male
• Connection Method: RJ45, RJ31X
• Material: 18 Gauge Cold Rolled Steel
• Mounting: Enclosure
• Receptacle Type: RJ45, RJ31X
• Number of Receptacles: 12
• Dimensions: 5.78(W) x 3.1(H) x 1.6(L) inches (14.7 x 7.9 x 4.1 cm)
• Weight: 1.01 pounds
• UL Standard: Yes
• UN SPS C: 43222819
• Warranty: 15 Year

»On-Q/Legrand TM1045 10-way RJ45 Telecom Module w/RJ31X Installation Instructions (.pdf)
