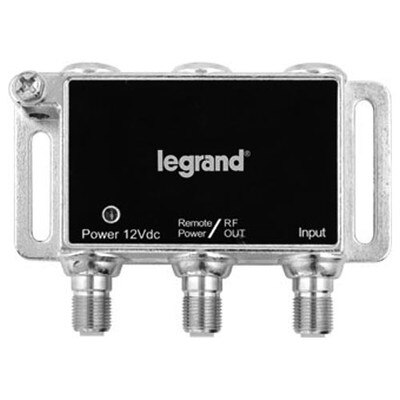

On-Q/Legrand 1-Port Digital Cable Amplifier with Coax Network Support

Boosts Video Signals By 15dB

Improve the strength of video signals throughout your home with the On-Q/Legrand 1-Port Digital Cable Amplifier with Coax Network Support. Compatible with MoCA, VoIP, and DOCSIS 3.0 networks, this high-definition video RF amplifier boosts signals by 15dB and features ultra-low noise for a strong video signal solution.

• Improves video signal strength throughout the home
• For use with MoCA, VoIP, and DOCSIS 3.0 networks
• Amplifies RF signal strength by up to 15dB

Start With A Strong Foundation

From innovative enclosures to high-performance connection outlets, On-Q products guarantee a smooth installation. Your home is a refuge from the world, a sanctuary from the elements, a place you can relax in comfort. Maximize your home living experience with innovative solutions from On-Q/Legrand. Let your family enjoy the convenience they want with the added peace-of-mind they need. On-Q/Legrand is changing the definition of home living.

• Cable Type: Coaxial
• Color: Black
• Connection Type: ANSI/SCTE 01 Compliant Brass Sealed CamPort F-Connector
• Type: Signal Amplifier
• Housing Material: Nickel Plated
• Surge Protected: 6kV Combination Wave: IEEE C62.41-1991 Cat. B3 on all RF ports, including power adapter
• Compatible Power Supplies: 120V 60Hz Adapter, Part # 104157-01 (included)
• Frequency: 5 to 1002MHz
• mA: 200mA
• Ohm Value: 75 Ohm Nominal impedance
• Operating Temperature: -40 to 140 degrees F (-40 to 60 degrees C)
• Power Requirements: 12VDC, 200mA
• Typical Insertion Loss: less than 1.2 dB
• Typical Return Loss: more than 20 dB
• Volts: 12VDC
• Diameter: 2.3(H) x 3.5(W) x 0.8(D) inches (5.8 x 8.9 x 2 cm)

»On-Q/Legrand VM2201-V1 1-Port Digital Cable Amplifier with Coax Network Support Installation Manual (.pdf)
